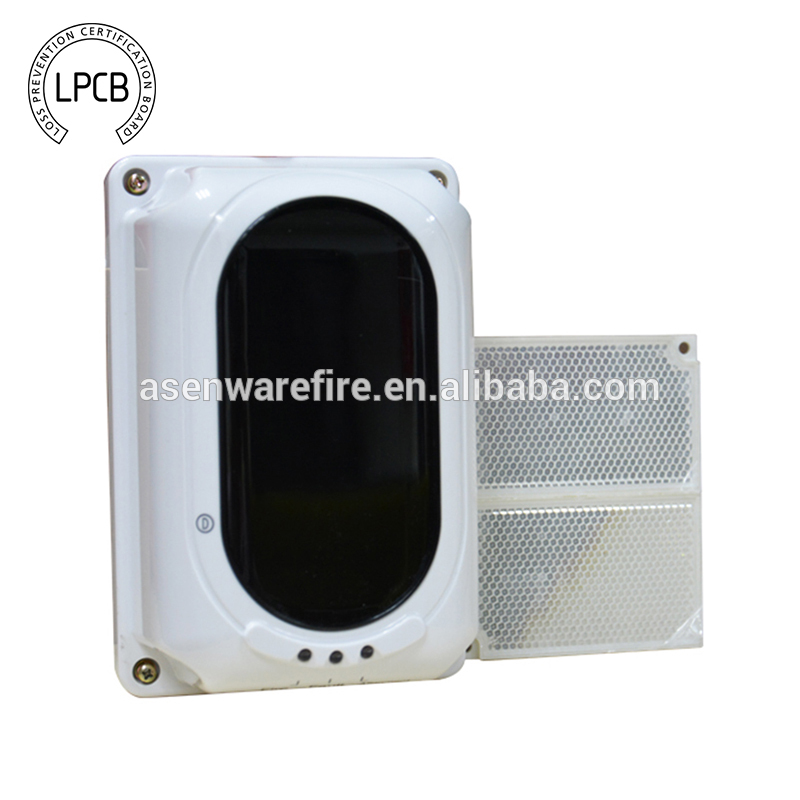

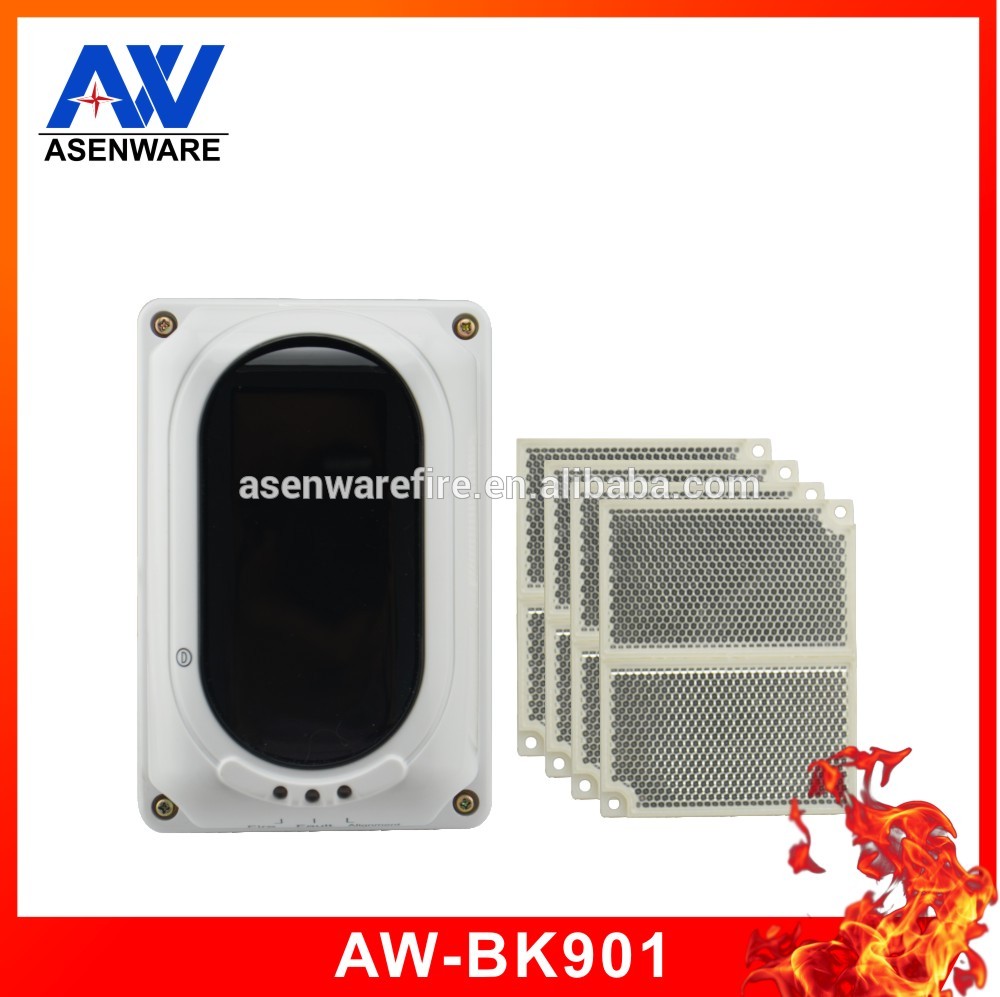

LPCB Long-Interval Reflection Line Infrared Beam Smoke Detector With Reflecting Mirror
| Parameter of infrared beam smoke detector | |
| Operating Voltage | DC16V~DC32V |
| Adjusting Angle | -6 DEG to +6 DEG |
| External Dimension | 206×95×95 mm |
| Materia | ABS |
| Color of the Casing | White, or as customized |
| Light path Length | 8m~100m |
| Operating Current | Monitoring current≤12 mA |
| Alarm current≤22mA | |
| Debugging current≤20mA | |
| Weight | 450g |

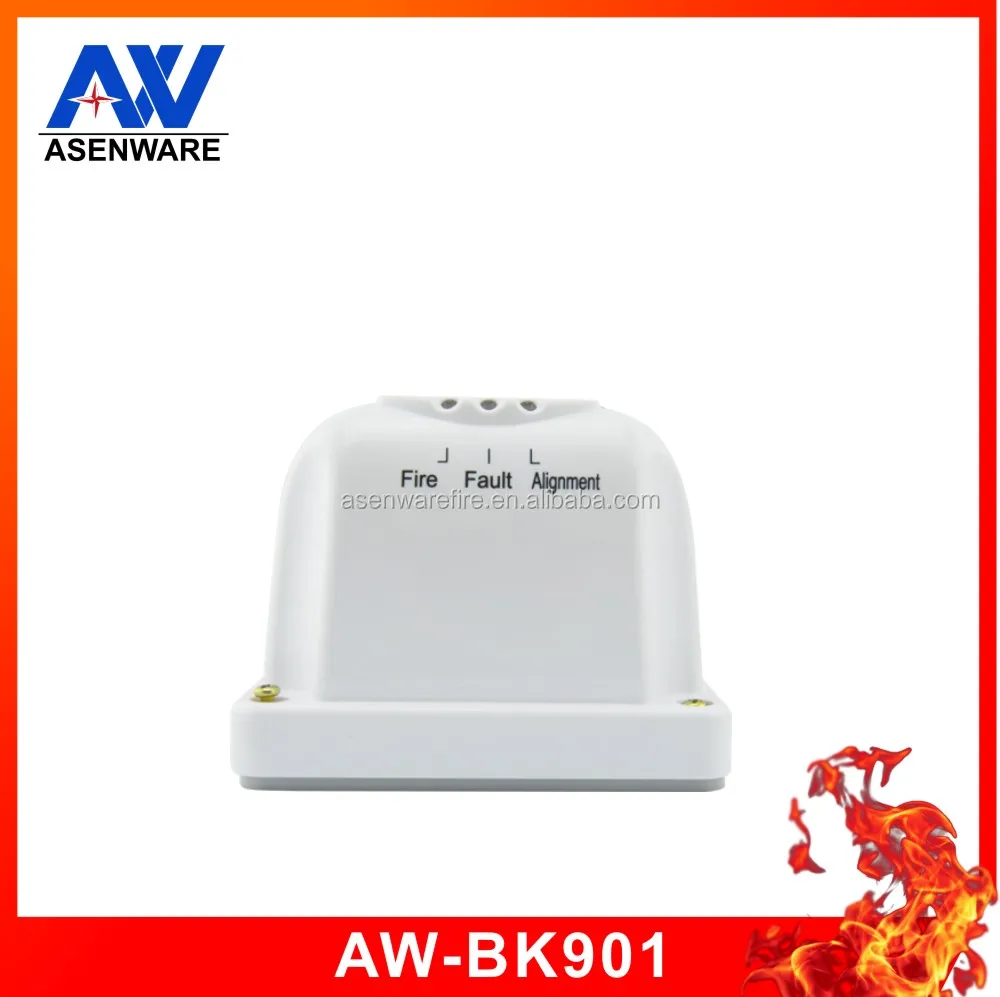

Indication of status of the beam smoke detector:
1) Debugging Status: the green, red and yellow indicator
lamps light up or flash in a specific mode, see Debug in the download data for detailed information.
2) Normal monitoring status: the green indicator lamp flashes
periodically.
3) Fire Alarm: the red indicator lamp keeps lighting;the yellow
indicator lamp blacks out. The fire alarm should be cancelled through being powered again.
4) Fault: the yellow indicator lamp keeps lighting; in case of
fault recovery, the fault signal of the detector is automatically cancelled by the detector.

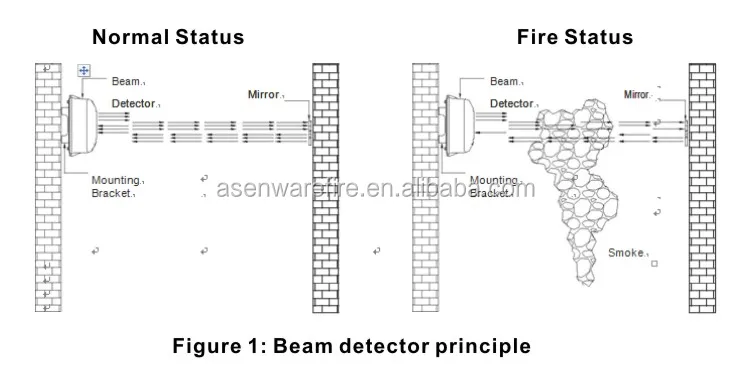

5) If the light path is completely blocked, the detector reports
a fault and the yellow indicator lamp lights up.
Operating Environment:temperature -10℃~+50℃ relative humidity ≤95%without
condensation
Protective Area:the maximal protective area of the detector 14×100=1400 M2
Pitch of mounting holes :Burying installation size--158mm pitch of the fixed holes for
open installation--79 mm×96 mm
Beam smoke detector application Places:
Warehouses, large-scale storage areas, shopping plazas, body-building centers,
gymnasiums, exhibition halls, hotel halls, printing works, costume plants, museums, prisons, etc,
as well as space with light smoke dust.
Asenware specialized in the Fire Alarm and BMS(Building Management System) over 10 years.
We develop and manufacture addressable fire alarm system, conventional fire alarm system and CCTV Security alarm system etc. We can provide complete fire alarm solution.
1. Certificate: CE, ISO9001
2. Payment terms: T/T,L/C,Western union,Money Gram.
3. Warranty: One year
