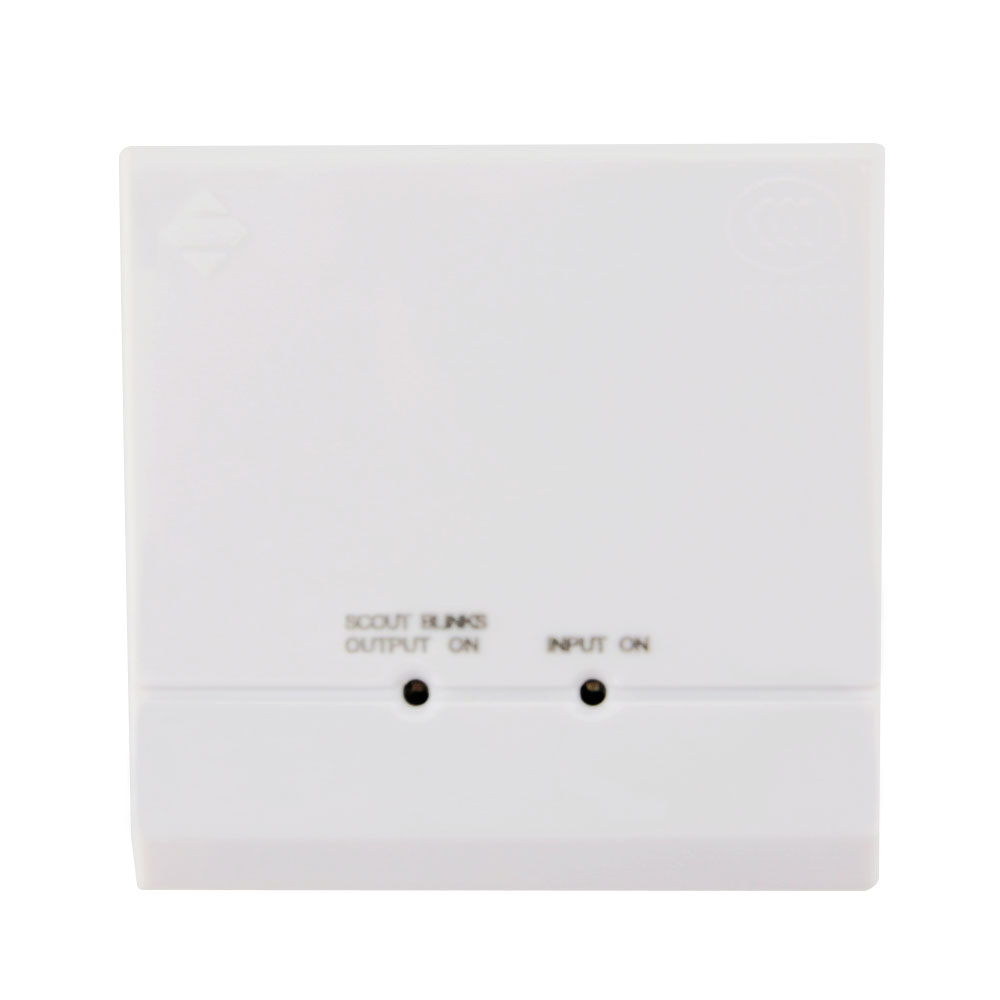

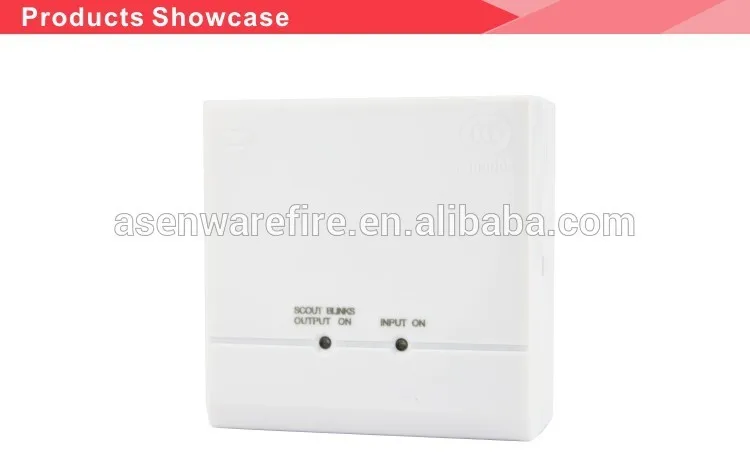

Asenware 47K Resistor Addressable Output / Control Module, Fire Alarm Control Module
Featuresof Addressable Output / Control Module
Asenware 47K Resistor Addressable Output / Control Module, Fire Alarm Control Module

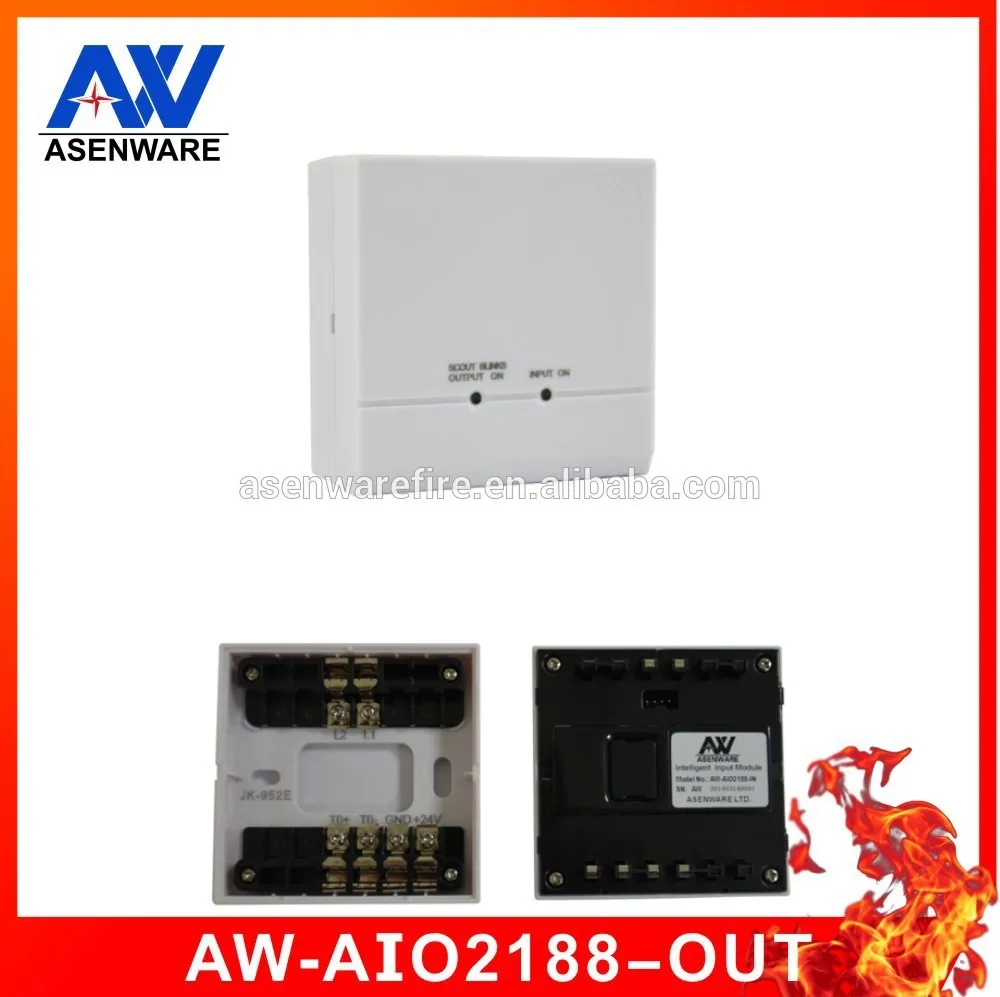

The AW-AIO2188-OUT Intelligent Input/Output Module(AW-AIO2188-OUT module for short) is used with AW-AFP2188,a two-bus linkage fire alarm control panel.
It is mainly used to realize an output control for fire linkage equipment (such as smoke dampers, blow valves and fire dampers) and receive the feedback signals of the fire linkage equipment so that a judgment on whether or not the fire linkage equipment is operating normally can be done.
Parameters of Addrssable Output / Control Module
| Name: | Addressable Output / Control Module | ||
| Model No. | AW-AIO2188-OUT | ||
| Mode of operation: | Non-polarity two-wire system | ||
| Quiescent current: | <0.6mA (power-down mode) | ||
| Action current: | <10mA | ||
| Terminal load: | 47K resistor | ||
| External dimensions: | 86×86×40(mm) | ||
| Weight: | about 130g | ||
| Operation indicator: | The inspection indicator will blink once about every 12 seconds in the inspection status or remain lit in the output status; the input indicator will remain lit in the feedback status. | ||
| Operating Environment: | Temperature: -10℃~50℃; relative humidity: ≤95% (40℃±2℃, without condensation) | ||
1. We offer OM/ODM service.
2. Quality assuance and rliabilty
3. Professional and experienced R&D center can offer free technical support.
4. Addressable Smoke and Heat Detector one year warranty and technical maintenance.
Addressable Fire Alarm System Optional Accessories:
Wiring Diagram:
Exhibition hall:
1. Certificate: CE ISO9001
2. Payment terms: T/T,L/C,Western union,Money Gram.
3. All-round technical support: Yes
4. Warranty: One year
Please contact me freely to get more information.
| Name: | Bella Yu |
| Skype: | sales10_303 |
| Tel: | 0086-755-27663815-804 |
| ID: | cn1512961300 |
| Email: | sales10 @asenware.com |
Asenware is specialized in the Fire Alarm and BMS(Building Management System) over 10 years.
We have 4 series fire alarm control systems with time-tested performance:
1. 2166 Series: Conventional fire alarm system with optional 1-32 zone panels.
2. 2188 Series: Addressable fire alarm system for middle fire project with optional 100/200/324 addresses.
3. 2100 Series: Addressable fire alarm control system for big fire project with minimum addresses starting from 648,648*2,648*N.
4. 2158 series: automatic fire extinguishing controller.
