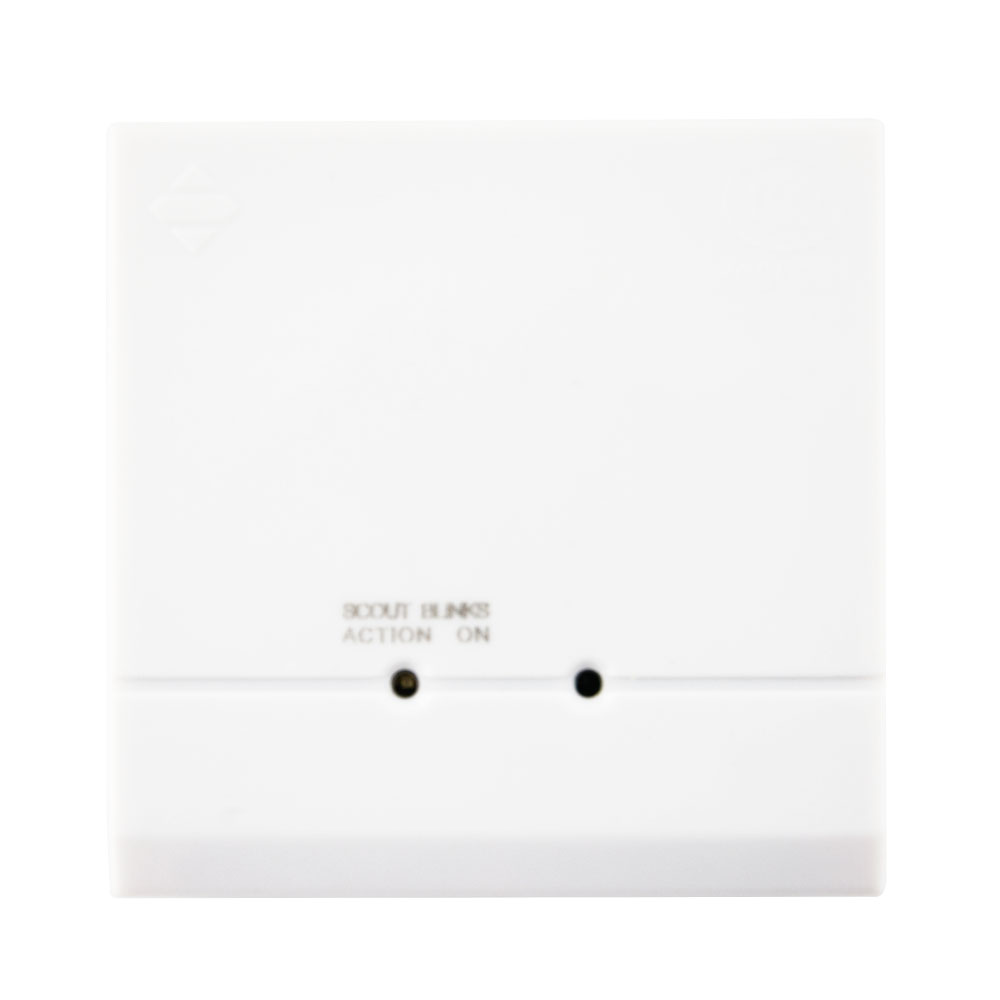

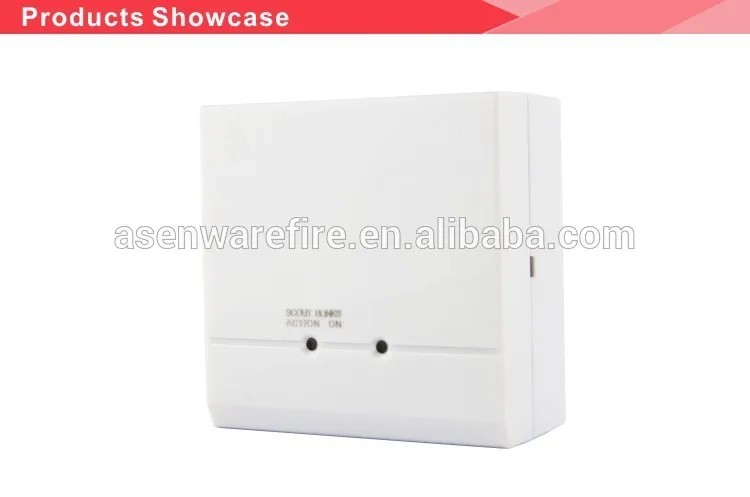

Addressable Input Module Used With Aw-Afp2188 Two-Bus Fire Alarm Control Panel
Featuresof Addressable Input / Monitor Module
Addressable Input Module Used With Aw-Afp2188 Two-Bus Fire Alarm Control Panel
The AW-AIO2188-IN Intelligent input module (AW-AIO2188-IN module for short) is used with AW-AFP2188,a two-bus fire alarm control panel.
It can be connected with a conventional smoke detector, a conventional heat detector, a conventional manual call point, a conventional hooter/horn and some other equipment.
After the said equipment starts to operate, the alarm signal output will be sent by the AW-AIO2188-IN module to the fire alarm control panel through a signal bus to give a fire alarm.
Parameters of Addressable Input / Monitor Module
| Name: | Addressable Input / Monitor Module | ||

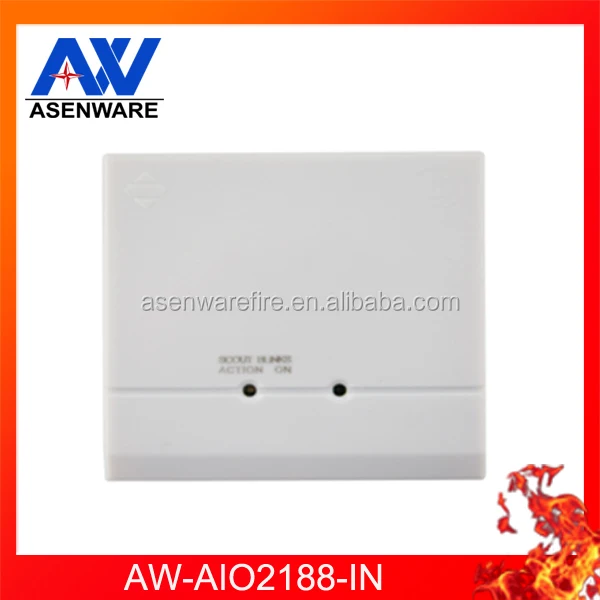

| Model No. | AW-AIO2188-IN | ||
| Mode of operation: | Non-polarity two-wire system | ||
| Quiescent current: | <0.5mA (bus); <6mA (power line) | ||
| Action current: | <2mA (bus); <15mA (power line) | ||
| Terminal load: | 4.7K resistance | ||
| External dimensions: | 86×86×40(mm) | ||
| Weight: | about 119g | ||
| Operation indicator: | The inspection indicator will blink once about every 12 seconds in the inspection status or remain lit in the operation status. | ||
| Operating Environment: | Temperature: -10℃~50℃; relative humidity: ≤95% (40℃±2℃, without condensation) | ||
1. We offer OM/ODM service.
2. Quality assuance and rliabilty
3. Professional and experienced R&D center can offer free technical support.
4. Addressable Smoke and Heat Detector one year warranty and technical maintenance.
Addressable Fire Alarm System Optional Accessories:
Wiring Diagram:
Exhibition hall:
1. Certificate: CE ISO9001
2. Payment terms: T/T,L/C,Western union,Money Gram.
3. All-round technical support: Yes
4. Warranty: One year
Please contact me freely to get more information.
| Name: | Bella Yu |
| Skype: | sales10_303 |
| Tel: | 0086-755-27663815-804 |
| ID: | cn1512961300 |
| Email: | sales10 @asenware.com |
Asenware is specialized in the Fire Alarm and BMS(Building Management System) over 10 years.
We have 4 series fire alarm control systems with time-tested performance:
1. 2166 Series: Conventional fire alarm system with optional 1-32 zone panels.
2. 2188 Series: Addressable fire alarm system for middle fire project with optional 100/200/324 addresses.
3. 2100 Series: Addressable fire alarm control system for big fire project with minimum addresses starting from 648,648*2,648*N.
4. 2158 series: automatic fire extinguishing controller.
