Addressable Announcer / Repeater From Professional Alarm System Supplier

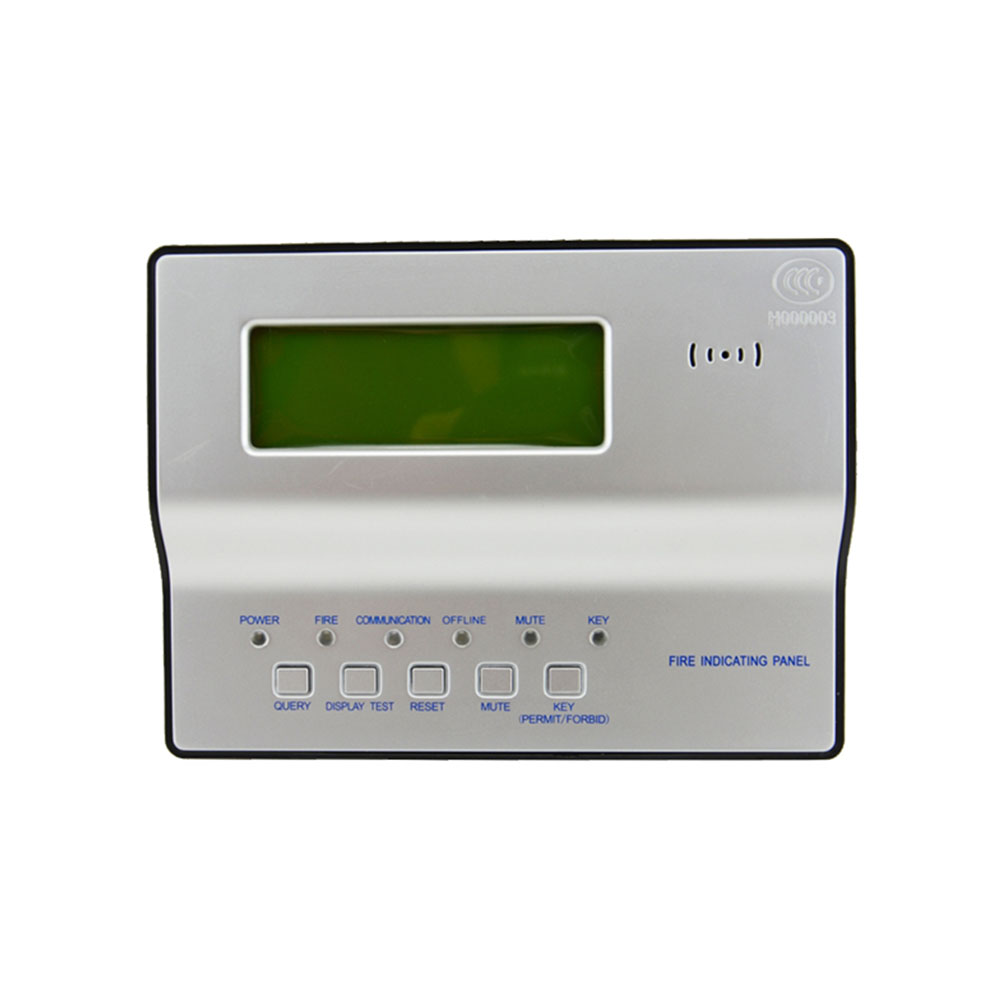

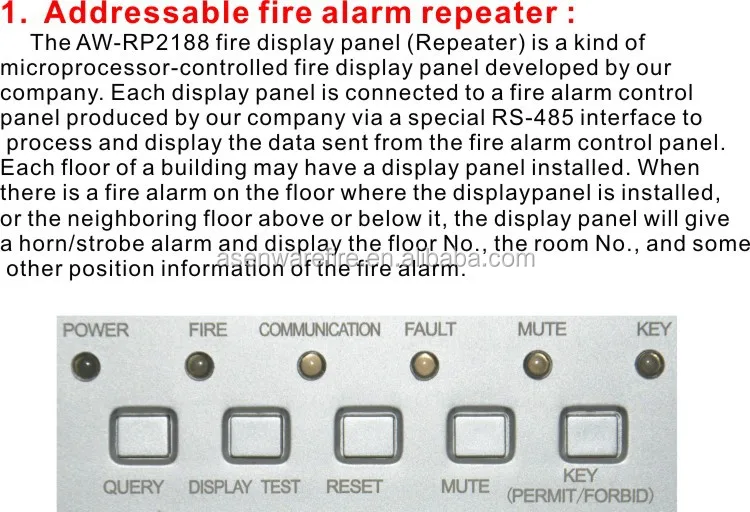

Description of Repeater for Fire Alarm Control Panel System AW-RP2188:
------It is a kind of microprocessor -controlled fire display panel developed by our company.
------Each fire alarm addressable repeater is connected to a fire alarm control panel produced by our company via a special RS-485 interface to process and display the data sent from the
fire alarm control panel.
------Each floor of a building may have a repeterl installed. When there is a fire alarm on the floor where the repeater is installed, or the neighboring floor above or below it, the repeater will give a horn/strobe alarm and display the floor No., the room No., and some other position information of the fire alarm.
Parameters of Repeater for Fire Alarm Control Panel System AW-RP2188:
| Name : | Repeater |
| Model NO.: | AW-RP2188 |
| Wiring system | Four-wire system, power lines (+24V, GND)and RS485 signal lines (485A, 485B) to addressable fire alarm control panel . |
Display capacity: | Each display panel can display the fire alarm messages of floors -10~90 and at most 99 fire alarm messages or feedback messages. |
| Operating environment: | Indoor; temperature: -10°C~+50°C; relative humidity: ≤95% (40°C, without condensation) |
| Powersupply: | DC 24V ±20 % |
| Overall power consumption: | <3W |
| Contact capacity: | Relay dry contacts, normally open or normally closed, capacity: 1.25A/DC30V (resistive load) |
Packaging Details: Plastic, Cartons, plywood case.
Shipping:deliver by air mail or ship for your order( EMS, DHL,FedEx,UPS).
Delivery Time: 3-5 days.
Addressable Fire Alarm System Optional Accessories:
Wiring Diagram:
Exhibition hall:
1. Presales: we have independent R&D center which can offer free technical
support and project budget.
2. Sales: 24-hour online prompt reply as well as standard quotation.
3. After-sales: one year warranty and technical maintenance.
1. Certificate: CE, ISO9001
2. Payment terms: T/T,L/C,Western union,Money Gram.
3. Warranty: One year
Please contact me freely to get more information.
| Name: | Bella Yu |
| Skype: | sales10_303 |
| Tel: | 0086-755-27663815-804 |
| ID: | cn1512961300 |
| Email: | sales10 @asenware.com |
Asenware specialized in the Fire Alarm and BMS(Building Management System) over 10 years.
We develop and manufacture addressable fire alarm system, conventional fire alarm system and CCTV Security alarm system etc.
We have 4 series fire alarm control systems with time-tested performance:
1. 2166 Series: Conventional fire alarm system with optional 1-32 zone panels.
2. 2188 Series: Addressable fire alarm system for middle fire project with optional 100/200/324 addresses.
3. 2100 Series: Addressable fire alarm control system for big fire project with minimum addresses starting from 648,648*2,648*N.
4. 2158 series: automatic fire extinguishing controller.
