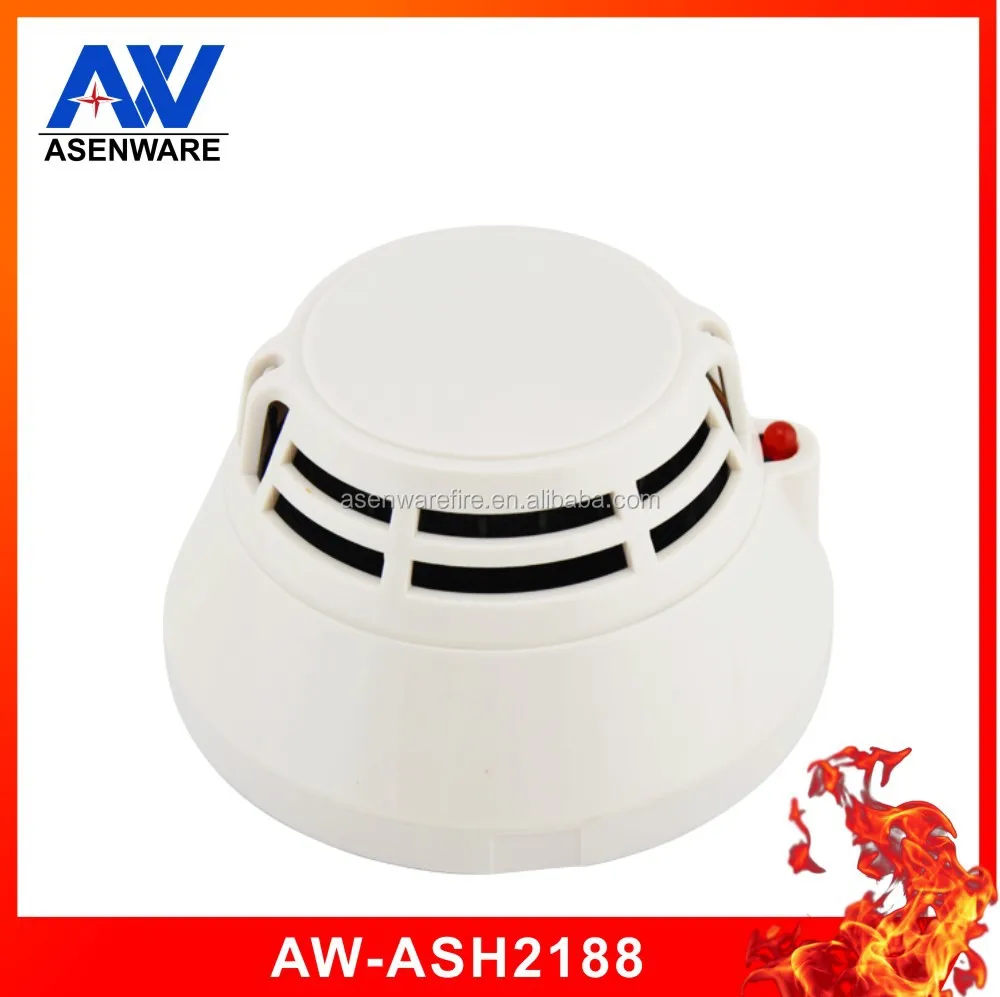

2 Wire Red Led Fire Alarm Addressable Combination Smoke And Heat Detector
Featuresof Addressable Smoke and Heat Conbined Detector
v
AW-ASH2188 addressable point type hybrid smoke and heat combined detector (Detector hereunder) is a multi-complex by the smoke detector sensor and semiconductor temperature sensors from the process structure and together constitute the circuit structure.
1. It not only has a photoelectric smoke detector performance, and both temperature fire detector performance.
2.This detector is for the promise of the second bus system, with the company"s 2188 series of alarm controller supporting.
3. Electronic coding, project commissioning simple and reliable.
4. With the key components of self-diagnostic function.
5. With drift compensation function and the accumulation of dust pollution reporting functions.
Parameters of Addressable Smoke and Heat Conbined Detector
| Name | Addressable Smoke and Heat Detector |
| Mode No. | AW-ASH2188 |
| Operating voltage | 24V (pulse modulation) |
| Wiring method | non-polarity two-bus system (L1, L2) |
| Operating current | < 500uA (monitoring status) / < 1.5mA (alarm status) |
| Operating environment | Indoor, temperature: -10°C~+55°C; |
| Operating environment | relative humidity: ≤95% (40°C±2°C, without condensation) |
| Work indication | The red indicator will blink in the monitoring status or remain lit in the alarm status |
| Protection area | 60 Square meters |
| Installation | height: ≤8m |
| Weight(with the base) | about 100g |
Addressable Smoke and Heat Conbined Detector display:
1. We offer OM/ODM service.
2. Quality assuance and rliabilty
3. Professional and experienced R&D center can offer free technical support.
4. Addressable Smoke and Heat Detector one year warranty and technical maintenance.
1. Certificate: CE ISO9001
2. Payment terms: T/T,L/C,Western union,Money Gram.
3. All-round technical support: Yes
4. Warranty: One year
Please contact me freely to get more information about Addressable Smoke and Heat Detector.
| Name: | Bella Yu |
| Skype: | sales10_303 |
| Tel: | 0086-755-27663815-804 |
| ID: | cn1512961300 |
| Email: | sales10 @asenware.com |
Asenware is specialized in the Fire Alarm and BMS(Building Management System) over 10 years.
We have 4 series fire alarm control systems with time-tested performance:
1. 2166 Series: Conventional fire alarm system with optional 1-32 zone panels.
2. 2188 Series: Addressable fire alarm system for middle fire project with optional 100/200/324 addresses.
3. 2100 Series: Addressable fire alarm control system for big fire project with minimum addresses starting from 648,648*2,648*N.
4. 2158 series: automatic fire extinguishing controller.

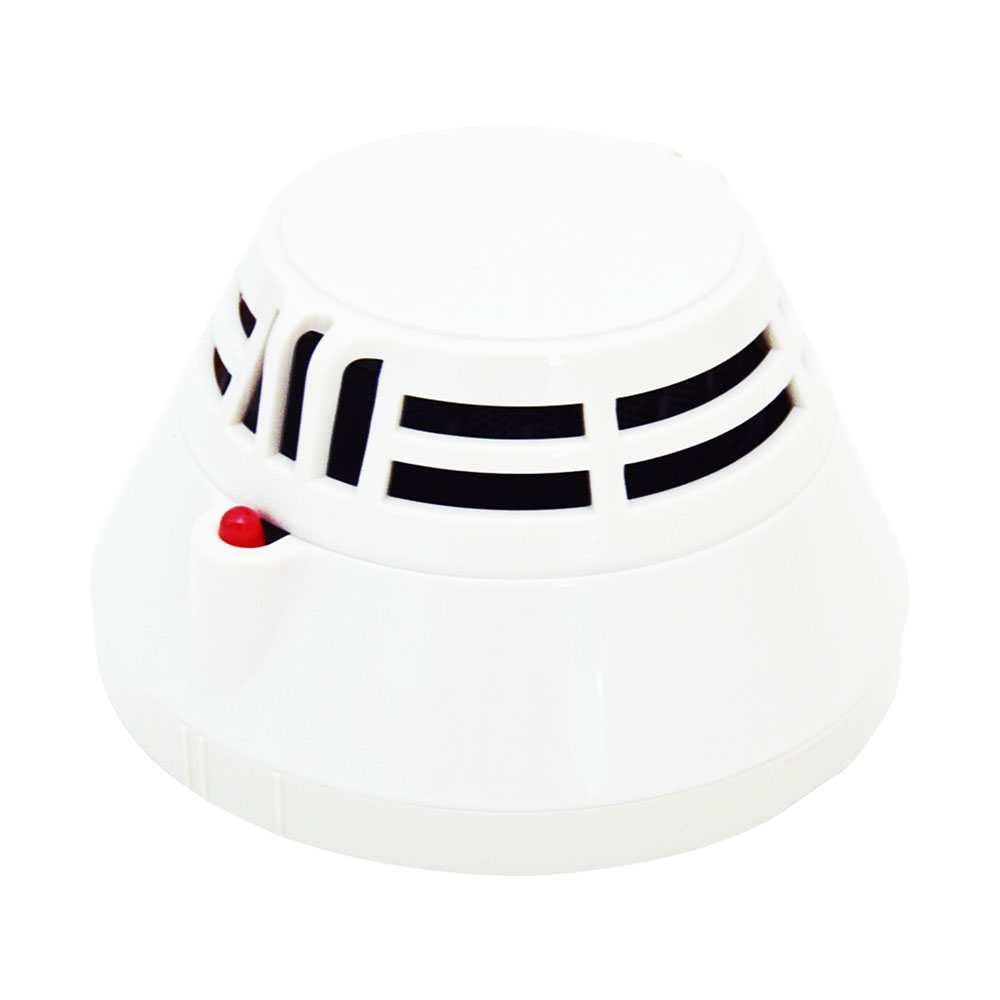

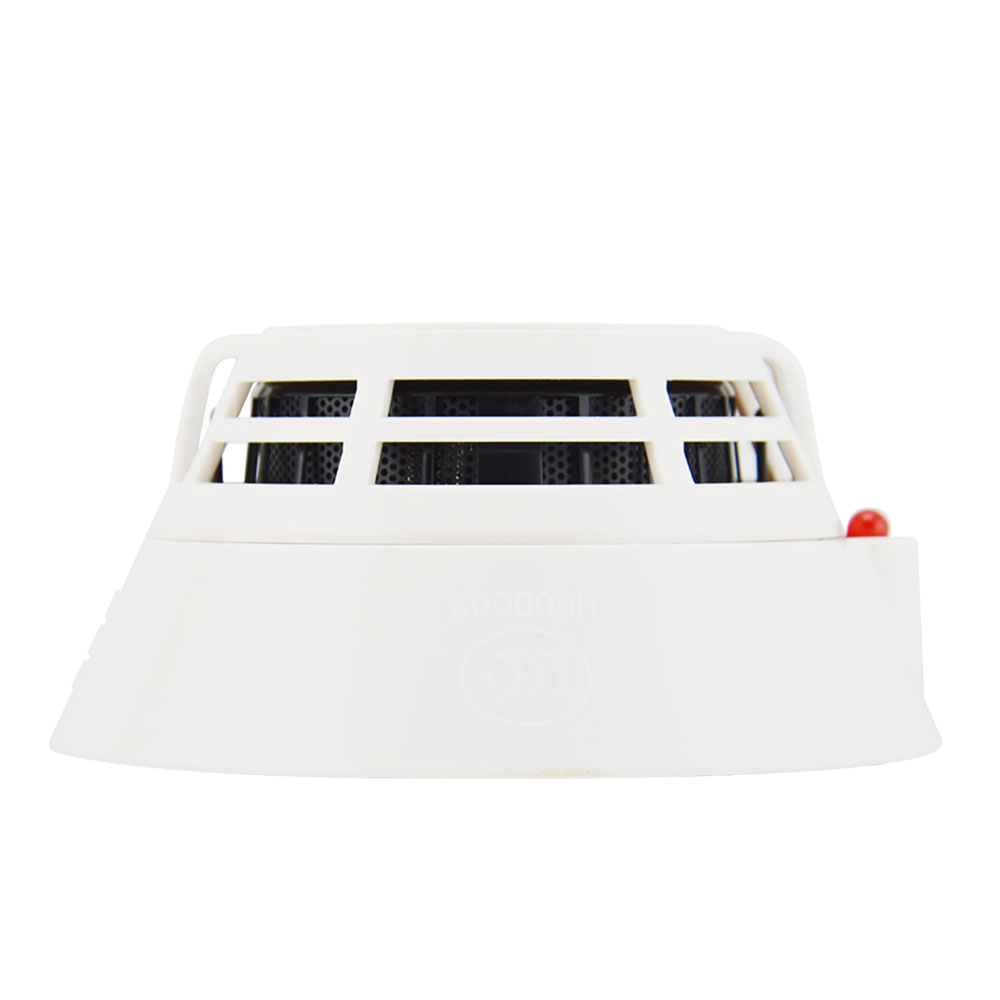

addressable smoke and heat detector show
