Best Price Of Addressable Intelligent Sounder Horn Strobe, 4-Wire System Sound Buzzer
Features of addressable Strobe Sounder
Best Price Of Addressable Intelligent Sounder Horn Strobe, 4-Wire System Sound Buzzer
1. This addressable strobe sounder hooter/horn is used with bus-type fire alarm control units. Controlled by a microprocessor, the strobe soundercan realize real-time communication with a bus-type fire alarm control unit and receive the control commands sent by it.
2. The audible alarm and flashing alarm may be set freely.
3. Designed with an upper cover and a lower cover, it can be installed, debugged and maintained conveniently.
4. It uses multiple super bright red LEDs as light sources for visual display, ensuring a striking display, a longer service life and low power consumption.
5. The addressable strobe sounder may be restored to the monitoring status after the MUTE or RESET key on the bus-type fire alarm control unit is pressed.
Parameters of addressable strobe Sounder
Model | AW-ASS2188 Addressable Strobe Sounder | ||
Work Voltage | DC24V (pulse modulation) | ||
Operating Current | Quienscent urrent: ≤1mA; Alarm current: ≤120mA@DC24V | ||
Flushing rate | one time/s | ||
Alarm volume | >85dB | ||
Coding method | Electronic coding | ||
Wiring method | Non-polarity Four-wire system 24V+,GND,L1,L2 | ||
Operating environment | Temperature: -10℃~+50℃; relative humidity: ≤95% (40℃±2℃, without condensation) | ||
Size | 142mm*84mm*66.5mm | ||

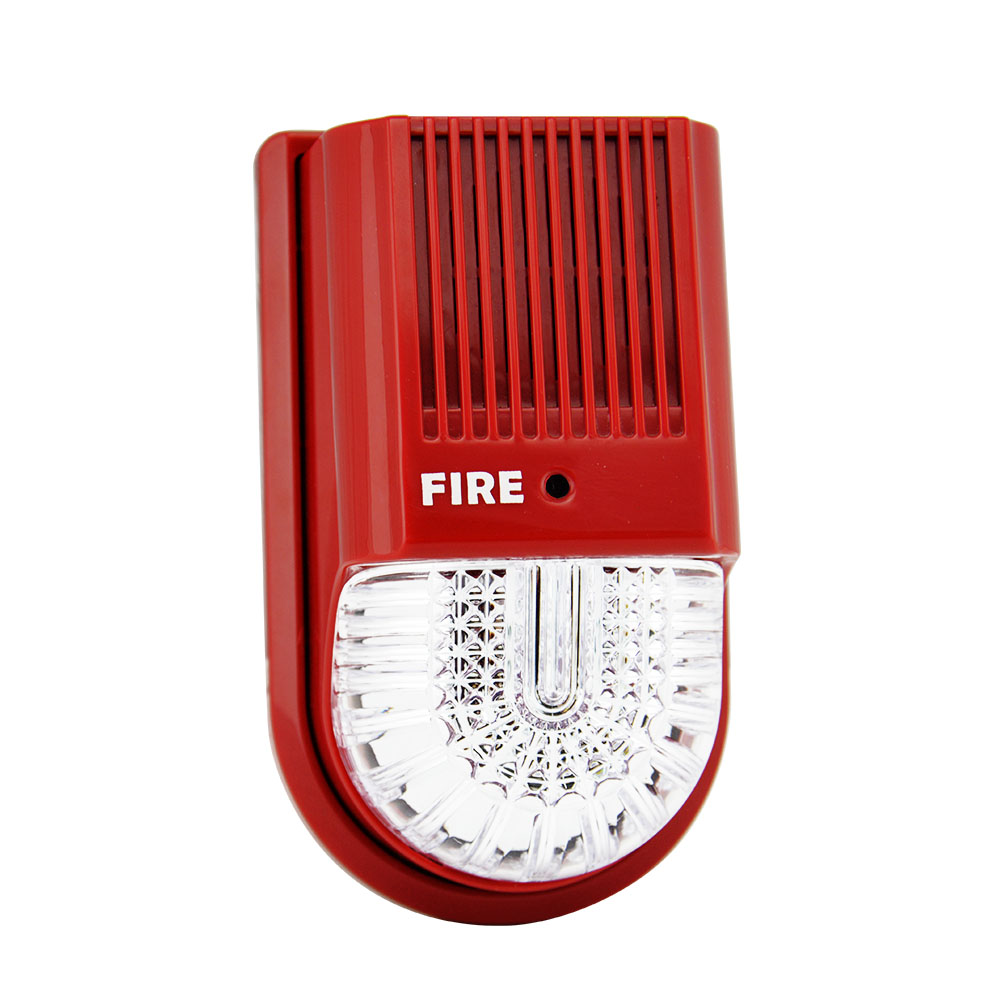

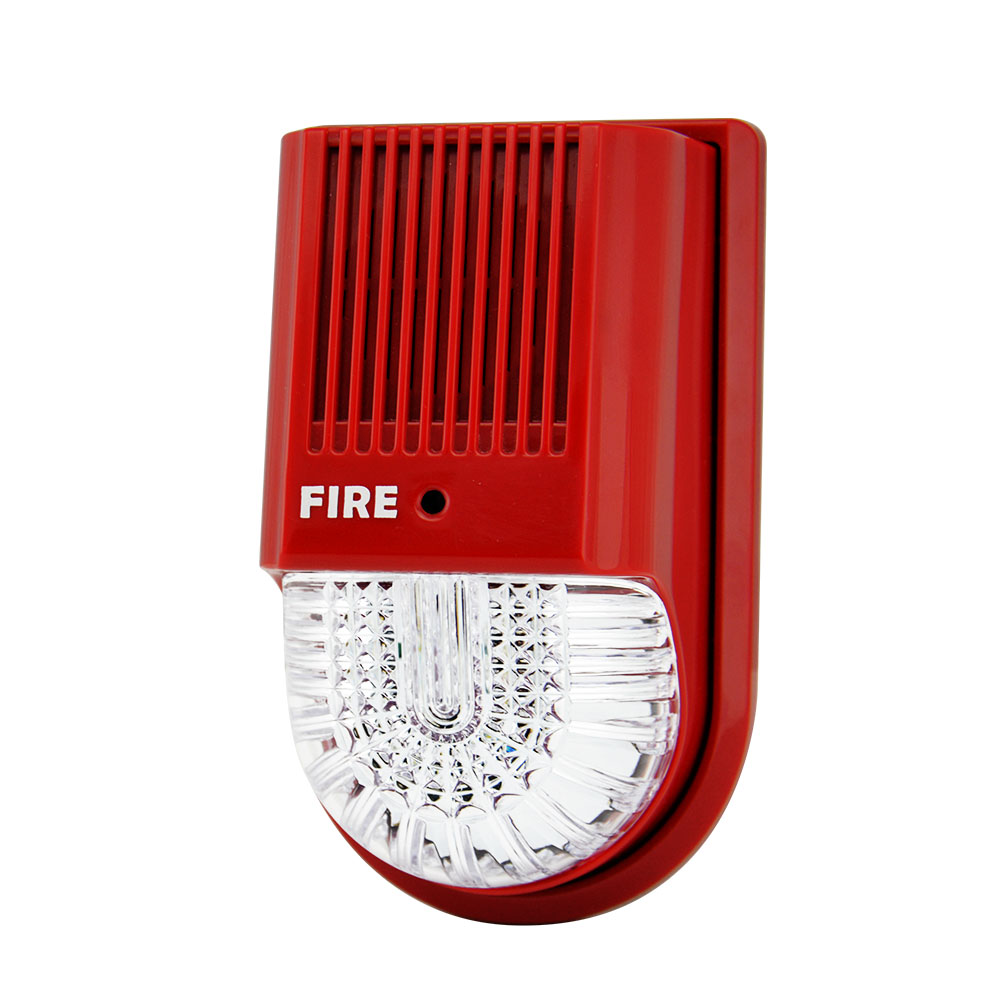

addressable strobe Sounder "s picture display
addressable strobe Sounder "s picture display
1. Pre-sales: Professional and experienced R&D center can offer free technical support and project budget.
2. Sales: All-around and all-weather online prompt reply as well as standard quotation.
3. After-sales: one year warranty and technical maintenance.
Packaging Details: Plastic, Cartons, plywood case
Shipping:deliver by air mail or ship for your order( EMS, DHL,FedEx,UPS).
Delivery Time: 3-5 days
1. All-round technical support: Yes
2. Warranty: One year
3. Certificate: CE ISO9001
4. Payment terms: T/T,L/C,Western union,Money Gram.
Please contact me freely to get more information of addressable strobe sounder.
| Name: | Bella Yu |
| Skype: | sales10_303 |
| Tel: | 0086-755-27663815-804 |
| ID: | cn1512961300 |
| Email: | sales10 @asenware.com |
Asenware specialized in the Fire Alarm and BMS(Building Management System) over 10 years.
We develop and manufacture addressable fire alarm system, conventional fire alarm system and CCTV Security alarm system etc. We can provide complete fire alarm solution.
We have 4 series fire alarm control systems with time-tested performance:
1. 2166 Series: Conventional fire alarm system with optional 1-32 zone panels.
2. 2188 Series: Addressable fire alarm system for middle fire project with optional 100/200/324 addresses.
3. 2100 Series: Addressable fire alarm control system for big fire project with minimum addresses starting from 648,648*2,648*N.
4. 2158 series: automatic fire extinguishing controller.
fire strobe sounder / addressable strobe Sounder Certification:
fire strobe sounder / addressable strobe Sounder"s show room
fire strobe sounder / addressable strobe Sounder"s show room
