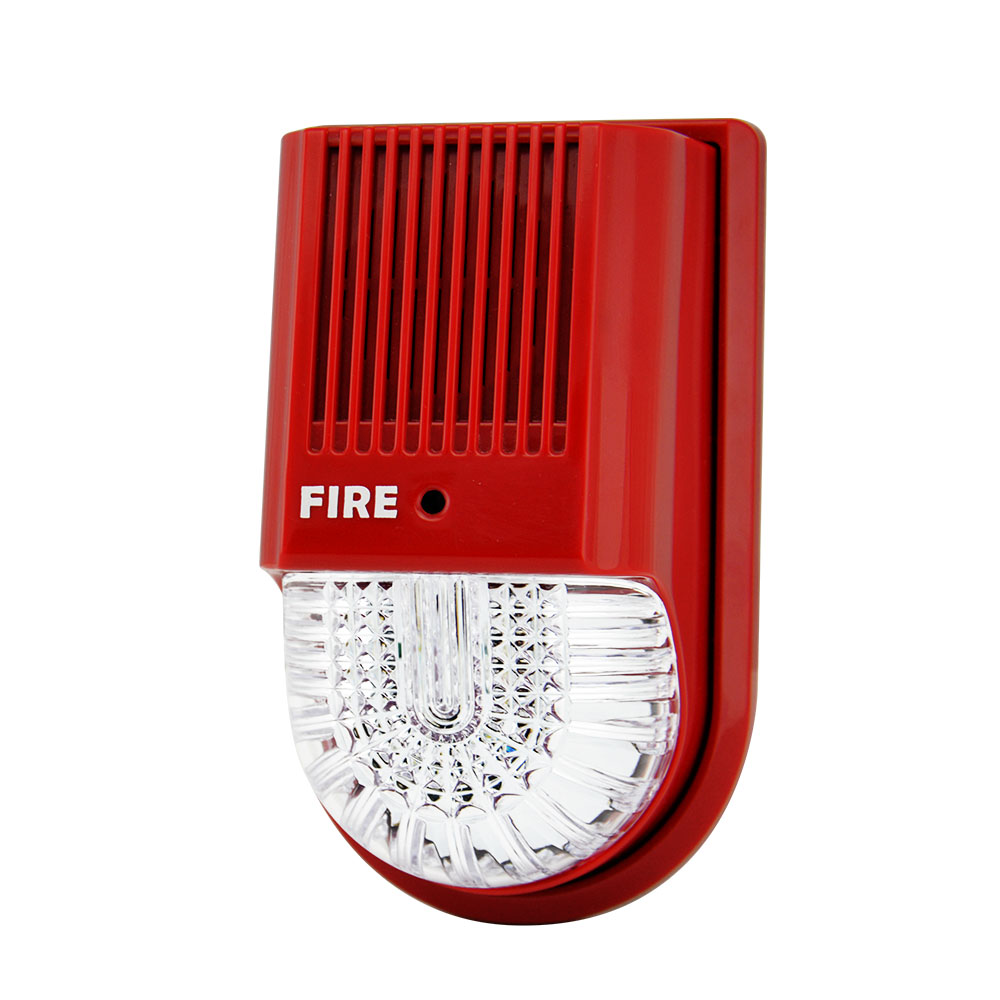

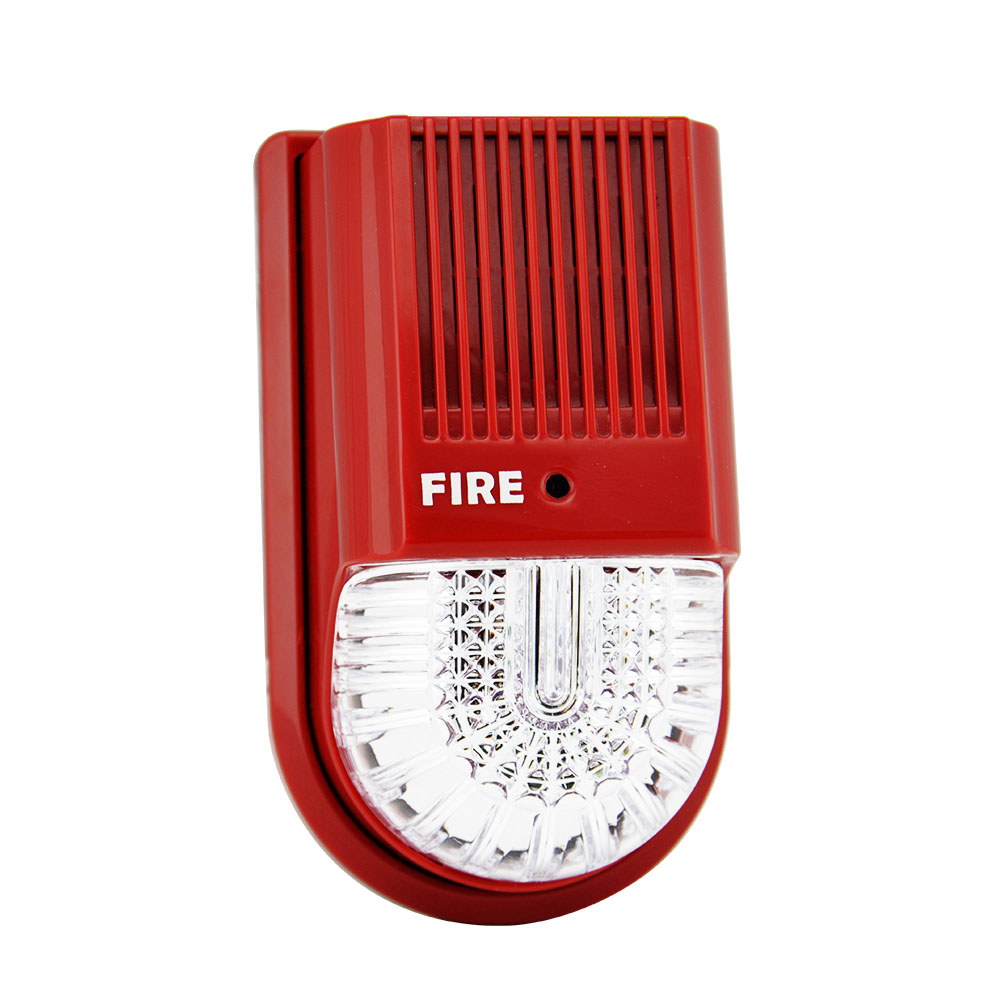

Easy to maintenance addressable fire alarm horn strobe
Shenzhen Asenware Test And Control Technology Co., Ltd
a leading Chinese fire alarm panel & relevant fire detector manufacturer (a technology oriented company)
1. Asenware is a professional manufacturer of fire alarm systems for 10 years .
2. Our main producst: fire alarm panel , smoke detector , wireless smoke detector , heat detector , bells etc .
3. Have an experienced R&D team to design special electric product for test and control usage.
Cheap fire alarm for modernized building / Addressable fire strobe siren Easy to maintenance addressable fire alarm horn strobe
Easy to maintenance addressable fire alarm horn strobe
We have 3 series fire alarm control systems with time-tested performance:
1. 2166 Series: Conventional fire alarm system with optional 1-32 zone panels.
2. 2188 Series: Addressable fire alarm system for middle fire project with optional 100/200/324 addresses.
3. 2100 Series: Addressable fire alarm control system for big fire project with minimum addresses starting from 648,648*2,648*N.
Addressable Asenware fire detection systems hooter with flash Addressable 4wire system use fire strobe light with horn
1). Product features:
a). It can realize complete electronic coding and in situ rewriting with the help of a coder.
b). The audible alarm and flashing alarm may be set freely. In other words, the hooter/horn may give an audible alarm and a flashing alarm at the same time or separately and it can be adapted to different working environments.
c). Designed with an upper cover and a lower cover, it can be installed, debugged and maintained conveniently.
d). It uses multiple super bright red LEDs as light sources for visual display, ensuring a striking display, a longer service life and low power consumption.
Easy to maintenance addressable fire alarm horn strobe| Parameters of fire strobe sounder | |
| Executive standard: | GA385- 2002 |
| Operating voltage: | DC24V (pulse modulation) |
| Operating current: | quiescent current: ≤1mA (the current consumed by the bus); alarm current: ≤120mA@DC24V |
| Operating environment: | Temperature: -10°C~+55°C; relative humidity: ≤95% (40°C, without condensation) |
| Flushing rate: | one time/s |
| Alarm volume: | >85dB (measured at a place 3m in front of the hooter/horn) |
| Coding method: | Electronic coding |
| Wiring method: | Four-wire system, non-polarity two signal buses (L1, L2) and power lines (+24V, GND) |
| Matched host machine: | fire alarm control panel (such as AW-AFP2188) |
Addressable Asenware flashing strobe / 24v strobe light fire alarm
75PCS / box. Weight: 16.1 KG. Size: 49*47.5*38.5CM
Addressable Optional Accessories:
Exhibition hall: Easy to maintenance addressable fire alarm horn strobe
Certificates: Addressable Asenware flashing strobe / 24v strobe light fire alarm
Wide Application: Asenware AW-ASS2188 Addressable Type fire alarm sounder strobe combination
1. Presales: we have independent R&D center which can offer free technical support and project budget.
2. Sales: 24-hour online prompt reply as well as standard quotation.
3. After-sales: one year warranty and technical maintenance.
Easy to maintenance addressable fire alarm horn strobe
1. All-round technical support ? Yes
2. How about the warranty ? One year
3. Delivery time ? Usually about 2 to 5 days.
4. Certificate ? CE LPCB ISO9001
5. Payment terms ? T/T,L/C,Western union,Money Gram.
6. Shipping Packing ? Paper carton or wood carton at option.
7. Modes of transportation ? DHL,TNT,EMS,FedExpress,UPS,etc
