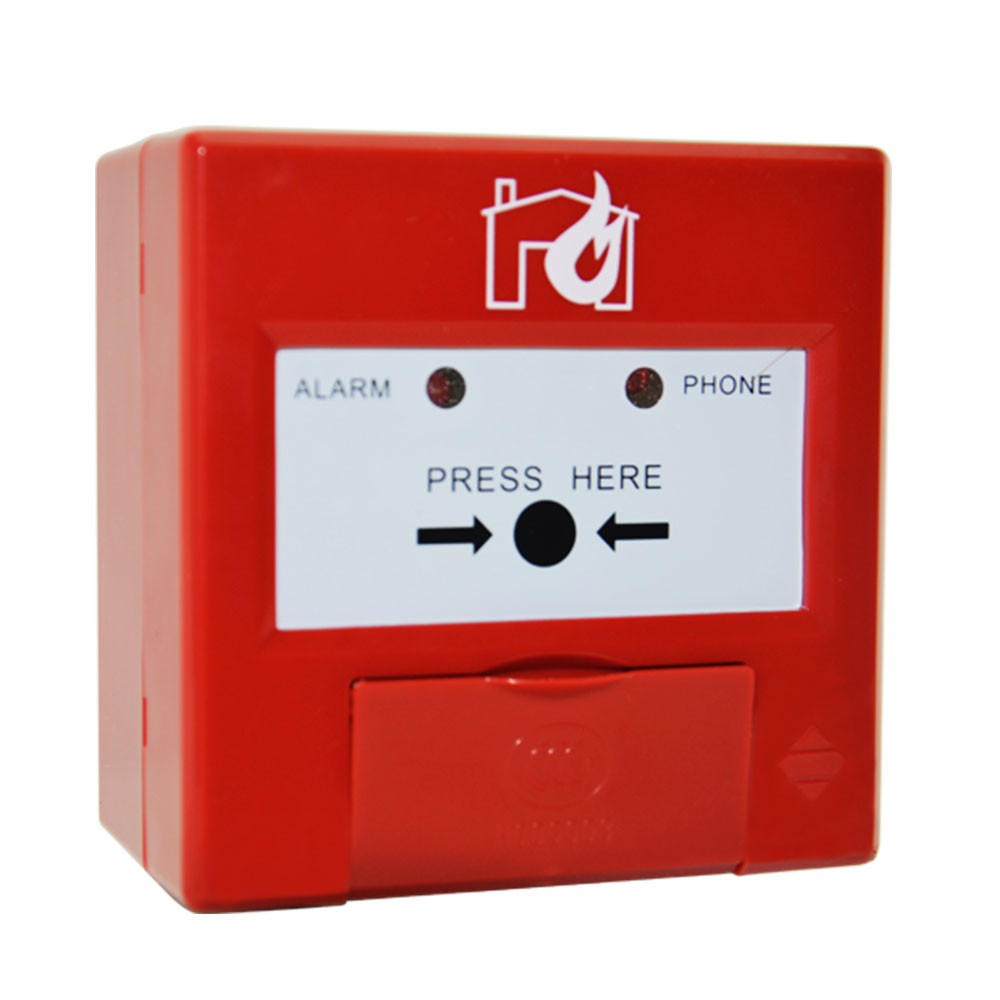

2-Wire Fire Telephone Jack , Manual Addressable Manual Alarm Button
Specifications: Addressable 2 Wire Resettable Manual Call Point
1. Mainly designed to be used with an intelligent two-bus control panel.
2. If it is pressed after a fire is manually confirmed, an alarm signal may be sent to a fire alarm control panel which will, after receiving the alarm signal, display the coded address and the equipment status of the manual call point.
3. When the manual call point is operating normally, the red indicator will blink; when there is a fire alarm, it will remain lit.

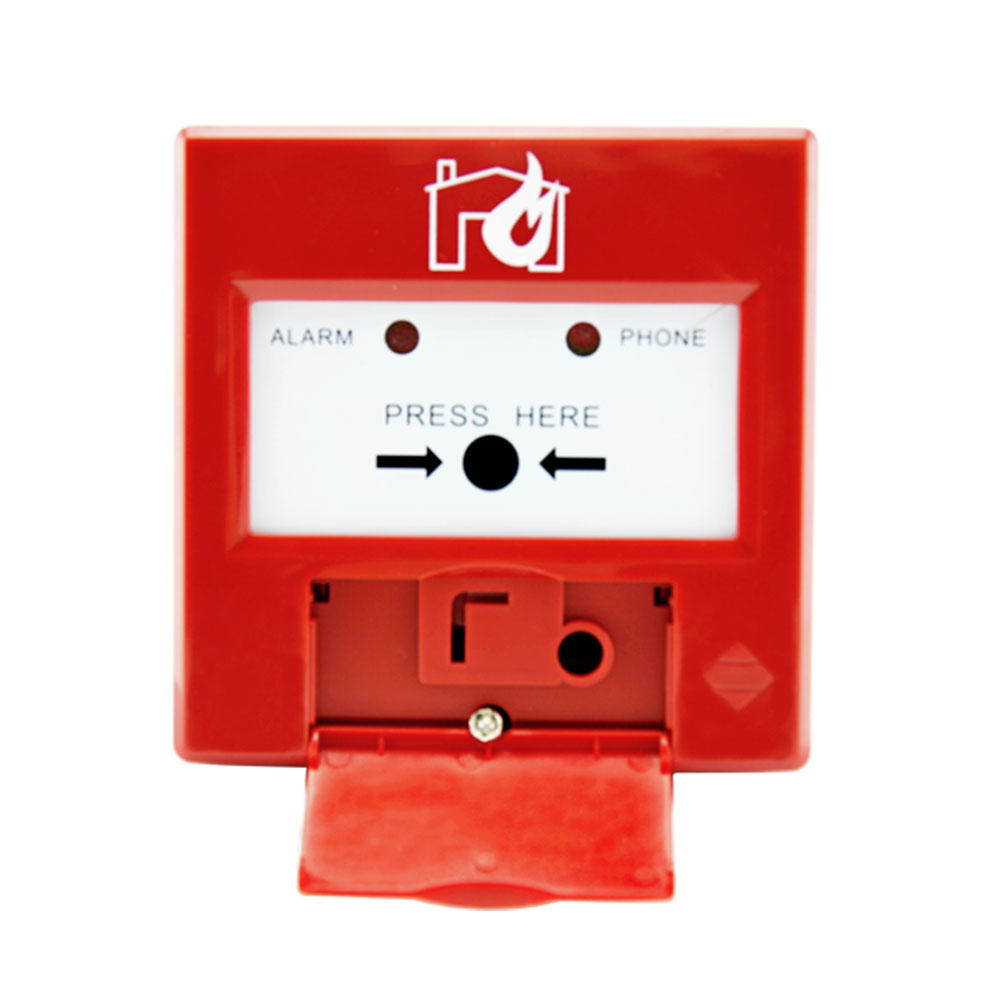

2-Wire Fire Telephone Jack , Manual Addressable Manual Alarm Button
| Parameters of addressable manual call point | |
Name | Addressable Manual Call Point |
Model | AW-AMC2188 |
Features | Reset key for resettable, Addressable |
Weight | 120g |
Matched Host Machine | Addressable Fire Alarm Control Panel AW-AFP2188 |
| Executive standard | GB19880-2005 |
Operating voltage | 24V (pulse modulation) |
| Operating current | <300uA (in the monitoring status); <2mA (in the action status) |
| Output contact | Normally open contact; capacity: 0.1A/30VDC |
| Wiring method | Nonpolar two-bus system (L1, L2) |
Shenzhen Asenware Test And Control Technology Co., Ltd
a leading Chinese fire alarm panel & relevant fire detector manufacturer (a technology oriented company)
1. Asenware is a professional manufacturer of fire alarm systems for 10 years .
2. Our main producst: fire alarm panel , smoke detector , wireless smoke detector , heat detector , bells etc .
3. Have an experienced R&D team to design special electric product for test and control usage.
Addressable 2 Circuit Within Telephone Jack , Resettable Plastic Manual Call Point Addressable Fire Alarm Call Point / Asenware Fire Alarm Button
Wall Mounted 2 Wire high Sensitivity Addressable Fire Resettable Call Point Manual
We have 3 series fire alarm control systems with time-tested performance:
1. 2166 Series: Conventional fire alarm system with optional 1-32 zone panels.
2. 2188 Series: Addressable fire alarm system for middle fire project with optional 100/200/324 addresses.
3. 2100 Series: Addressable fire alarm control system for big fire project with minimum addresses starting from 648,648*2,648*N.
2-Wire Fire Telephone Jack , Manual Addressable Manual Alarm Button
1. Independent R&D center which can offer free technical support and project budget.
2. Sales: 24-hour online prompt reply as well as standard quotation.
3. After-sales: one year warranty and technical maintenance.
Activation Kit for Fire Occurs Manual Alarm Call Point , Emergency Addressable Resettable Call Point
1. All-round technical support ? Yes
2. How about the warranty ? One year
3. Delivery time ? Usually about 2 to 5 days.
4. Certificate ? CE LPCB ISO9001
5. Payment terms ? T/T,L/C,Western union,Money Gram.
6. Shipping Packing ? Paper carton or wood carton at option.
7. Modes of transportation ? DHL,TNT,EMS,FedExpress,UPS,etc
