Smoke Heat Sensors 2 Wire Addressable Fire Detector
Shenzhen Asenware Test And Control Technology Co., Ltd
a leading Chinese fire alarm panel & relevant fire detector manufacturer (a technology oriented company)
1. Asenware is a professional manufacturer of fire alarm systems for 10 years .
2. Our main producst: fire alarm panel , smoke detector , wireless smoke detector , heat detector , bells etc .
3. Have an experienced R&D team to design special electric product for test and control usage.
Smoke Heat Sensors 2 Wire Addressable Fire Detector
2 Wire Addressable Multi Type address fire detector With Photoelectric Fire Sensor / addressable combined fire detector
We have 3 series fire alarm control systems with time-tested performance:
1. 2166 Series: Conventional fire alarm system with optional 1-32 zone panels.
2. 2188 Series: Addressable fire alarm system for middle fire project with optional 100/200/324 addresses.
3. 2100 Series: Addressable fire alarm control system for big fire project with minimum addresses starting from 648,648*2,648*N.
1. Introduction of combined fire detector :
a) Multi-complex by the smoke detector sensor and semiconductor temperature sensors from the process structure and together constitute the circuit structure.
b) It not only has a photoelectric smoke detector performance, but also temperature fire detector performance.
c) This addressable combined fire detector is for the promise of the second bus system, with the company"s 2188 series of alarm controller supporting.

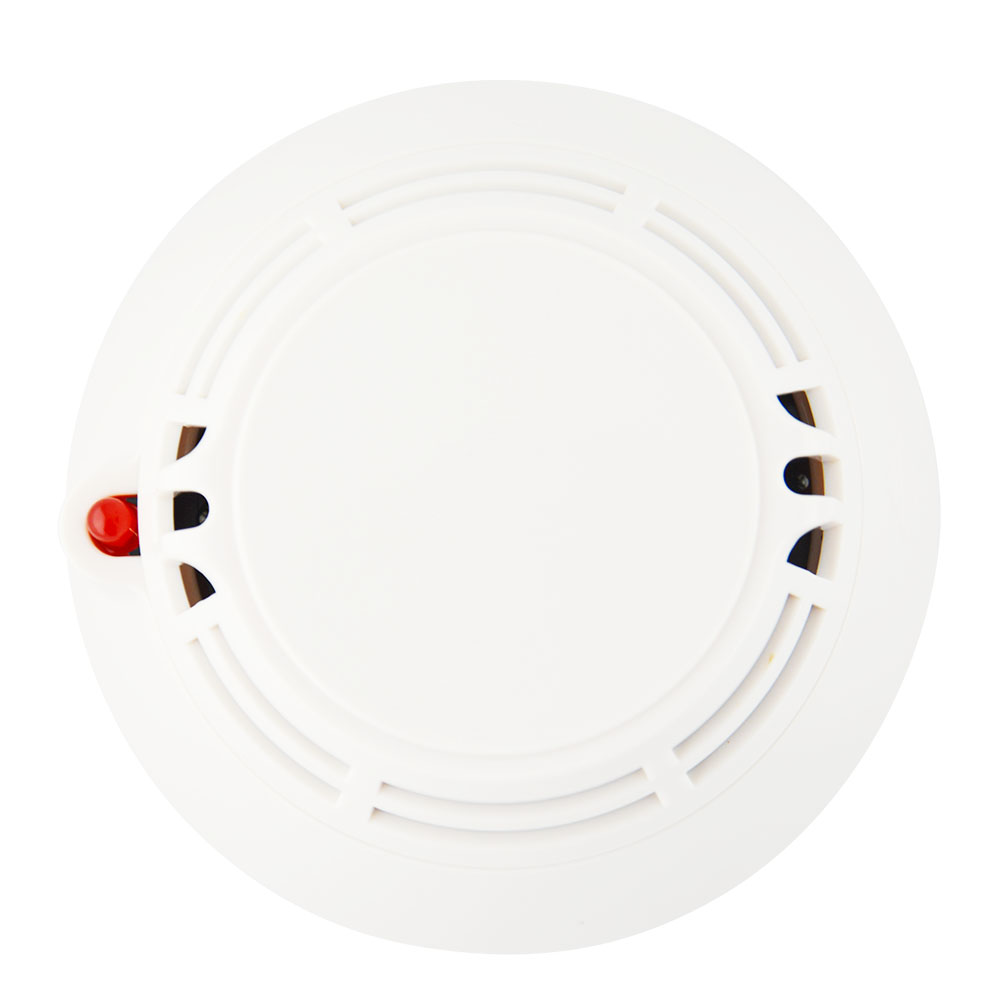

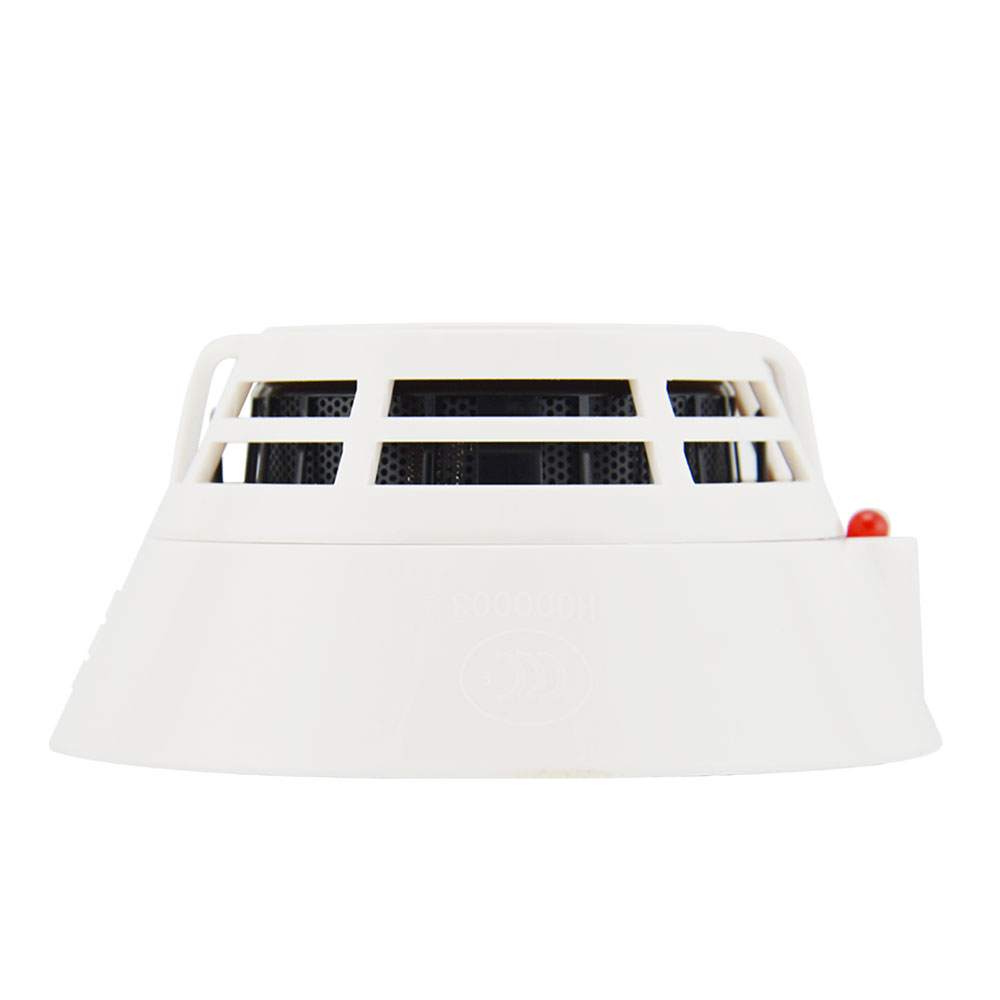

Asenware AW-ASH2188 24V Addressable Smoke Heat Alarm , Fire Protection Sensitive Fire Detector
2. Parameters of addressable combined fire detector :
| Name | Addressable optical smoke detector |
| Model | AW-ASH2188 |
| External Specification | Diameter 100mm Height 55mm (With Base) |
| Weight | 100g |
Matched Host Machine | Addressable Fire Alarm Control Panel AW-AFP2188 |
| Installation height | ≤8m |
| Operating voltage | 24V (pulse modulation) |
| Shell Material | ABS |
| Protection area | about 60m2. For details, see related provisions in GB50116-98 Code for Design of Automatic Fire Alarm System. |
| Encoding | Electronic, coding range is 1 to 324 |
Asenware 2 Wire High Efficiency Address Addressable Fire Detector / Fire Alarm Heat Smoke Detector
Addressable Optional Accessories:
Most Sensitivity Addressable Combined Detection / Smoke Temperture Detector
1. Independent R&D center which can offer free technical support and project budget.
2. Sales: 24-hour online prompt reply as well as standard quotation.
3. After-sales: one year warranty and technical maintenance.
Smoke Heat Sensors 2 Wire Addressable Fire Detector
1. All-round technical support ? Yes
2. How about the warranty ? One year
3. Delivery time ? Usually about 2 to 5 days.
4. Certificate ? CE LPCB ISO9001
5. Payment terms ? T/T,L/C,Western union,Money Gram.
6. Shipping Packing ? Paper carton or wood carton at option.
7. Modes of transportation ? DHL,TNT,EMS,FedExpress,UPS,etc
