2 Wire Fire Alarm Addressable Fire / Heat Warning Detector , Provide Technical Support And Full Set of Fire Alarm System
Shenzhen Asenware Test And Control Technology Co., Ltd
a leading Chinese fire alarm panel & relevant fire detector manufacturer (a technology oriented company)
2 Wire Fire Alarm Addressable Fire / Heat Warning Detector , Provide Technical Support And Full Set of Fire Alarm System
We have 3 series fire alarm control systems with time-tested performance:
1. 2166 Series: Conventional fire alarm system with optional 1-32 zone panels.
2. 2188 Series: Addressable fire alarm system for middle fire project with optional 100/200/324 addresses.
3. 2100 Series: Addressable fire alarm control system for big fire project with minimum addresses starting from 648,648*2,648*N.
A professional and experienced R&D team will offer all-around technical support before, during and after sales, they can also provide professional technical solutions for your items, even arrive in customer’s country to direct projects personally. Our aim is to provide our customers with all-weather and all-around satisfying service.
1. General Description :

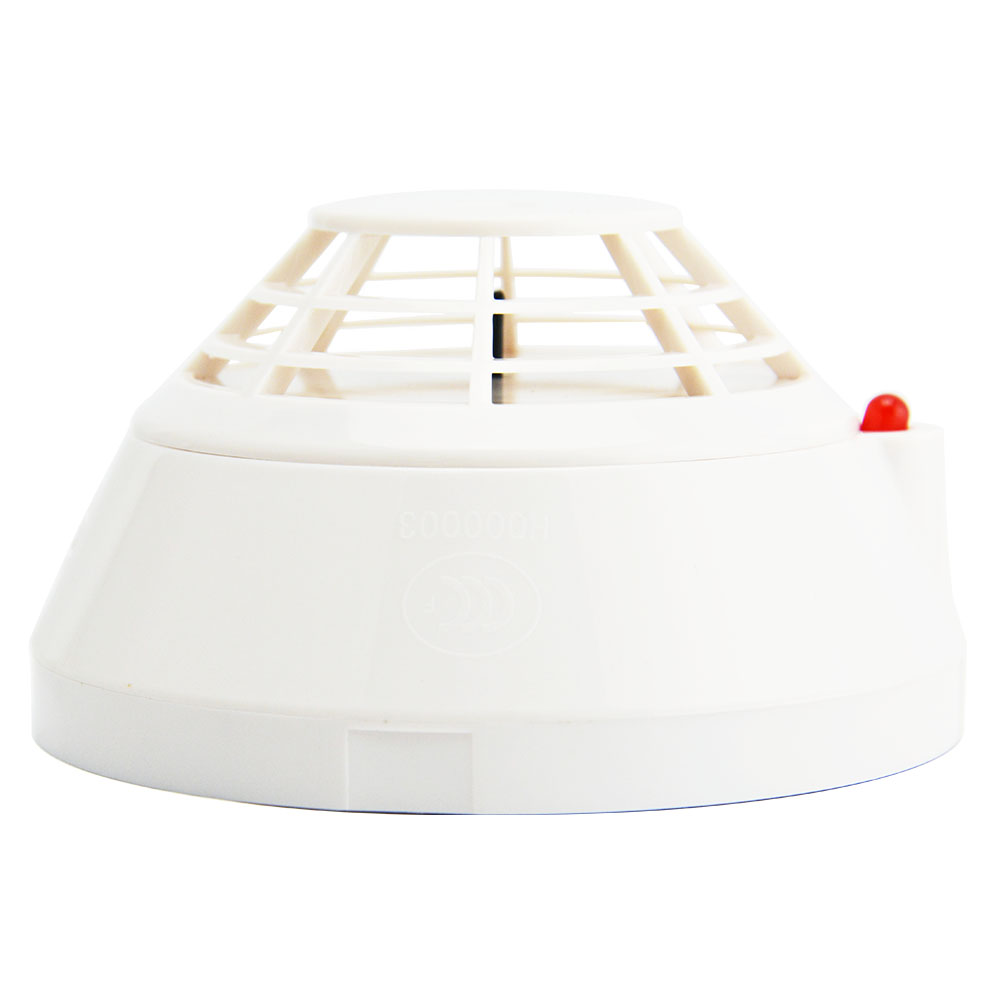

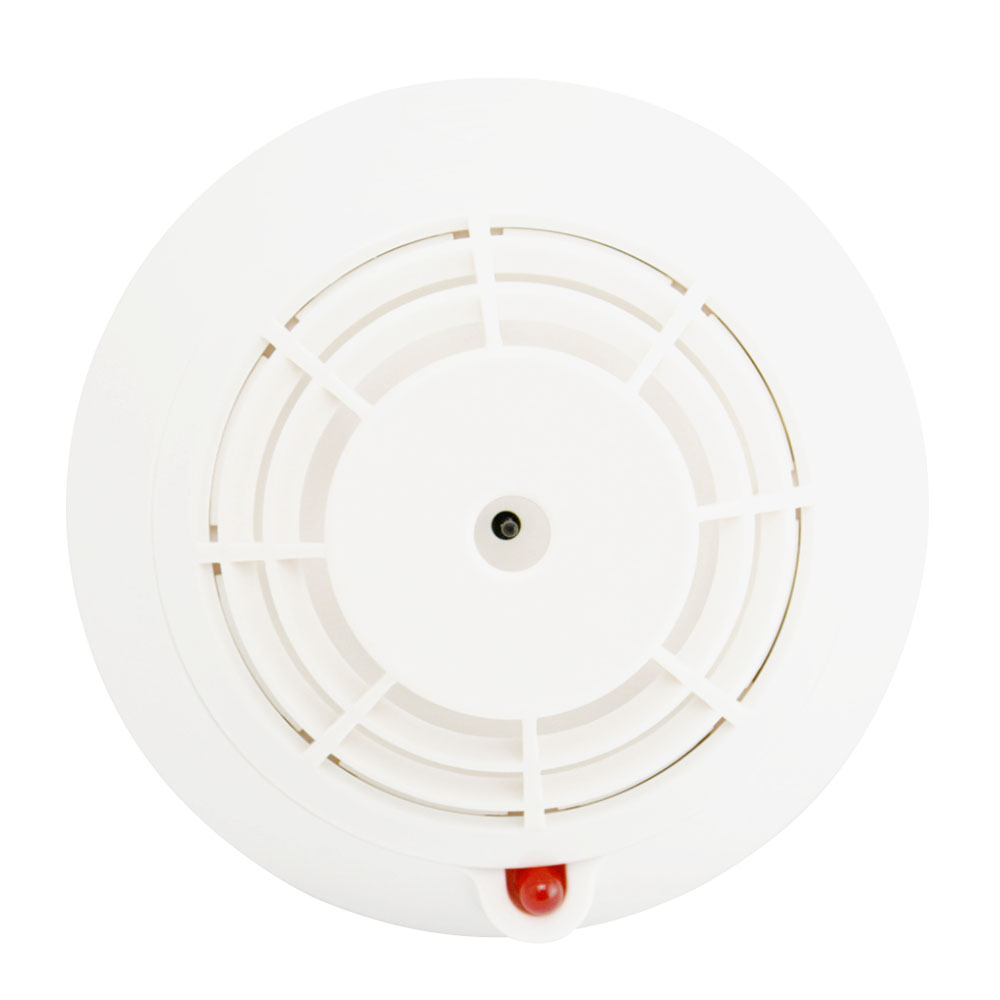

a) Addressable heat detector is a mated product of the 9000 series fire alarm control panels.
b) It uses a two-bus work mode. With an internal microprocessor, it supports electronic coding.
d) The detector realizes real-time acquisition of the in situ smoke concentration data and sends back the data to a fire alarm control panel.
e) It can also receive and execute the control commands given by a fire alarm control panel.
2 Wire Fire Alarm Addressable Fire / Heat Warning Detector , Provide Technical Support And Full Set of Fire Alarm System
2.The parameters of addressable heat detector:
| Model | AW-ATD2188 |
| External Specification | Diameter 100mm Height 56mm (With Base) |
| Weight | 47g |
Matched Host Machine | Addressable Fire Alarm Control Panel AW-AFP2188 |
| Installation height | ≤8m |
| Executive standard: | GB4716-2005 |
| Operating voltage: | 24V (pulse modulation) |
| Operating current: | <300uA (monitoring status) or <1.5mA (alarm status) |
| Product class: | A2 |
| Wiring method: | non-polarity two-bus system (L1, L2) |
| Coding mode: | It can realize electronic coding via coder in situ. Address codes 1 to 324 are available for selection. |
1. Pre-sales: Professional and experienced R&D center can offer free technical support and project budget.
2. Sales: All-around and all-weather online prompt reply as well as standard quotation.
3. After-sales: one year warranty and technical maintenance.
Addressable Optional Accessories:
Exhibition hall: 2 Wire Fire Alarm Addressable Fire / Heat Warning Detector , Provide Technical Support And Full Set of Fire Alarm System
Wide Application: 2 Wire Fire Alarm Addressable Fire / Heat Warning Detector , Provide Technical Support And Full Set of Fire Alarm System
Certificate: 2 Wire Fire Alarm Addressable Fire / Heat Warning Detector , Provide Technical Support And Full Set of Fire Alarm System
1. All-round technical support: Yes
2. Warranty: One year
3. Delivery time: Usually about 2 to 5 days.
4. Certificate: CE ISO9001
5. Payment terms: T/T,L/C,Western union,Money Gram.
