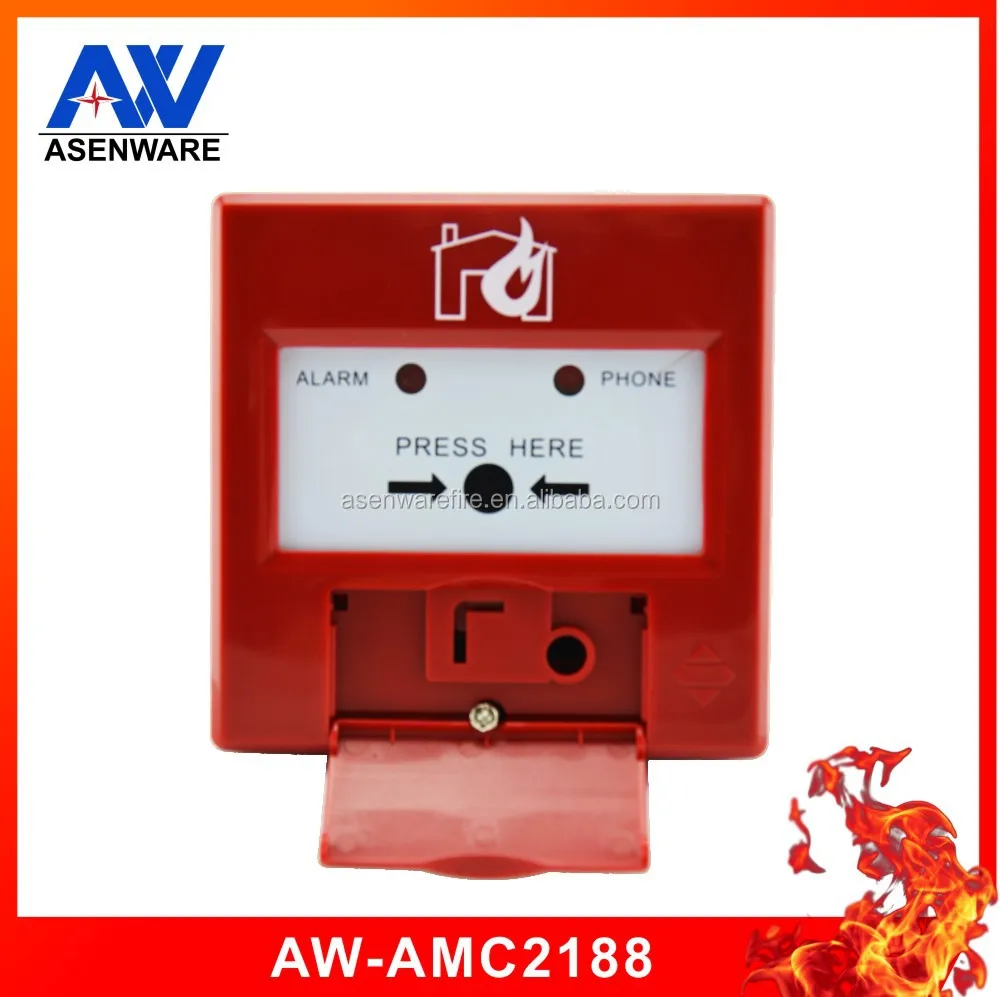

Two-Wire Fire Telephone Jack Addressable Fire Alarm Manual Call Point
Parameters of Addressable Manual Call Point
Two-Wire Fire Telephone Jack Addressable Fire Alarm Manual Call Point
Name | Addressable Manual Call Point |
Model NO | AW-AMC2188 Addressable Manual Call Point |
Working voltage | 24VDC |
Operating current | <300uA (in the monitoring status); <2mA (in the action status) |
Wiring method | nonpolar two-bus system (L1, L2) Manual Call Point |
| Operating environment | Indoor, temperature: -10℃~+50℃; relative humidity: ≤95% (40℃±2℃, without condensation) |
| Size | 90mm*51mm*90mm |
| Other spcific details | capacity: 0.1A/30VDC; Two-wire fire telephone jack; Starting mode: Press the pressing sheet manually. |
Description of Addressable Manual Call Point
Two-Wire Fire Telephone Jack Addressable Fire Alarm Manual Call Point
1. The AW-AMC2188 addressable manual call point (manual call point for short) is mainly designed to be used with an intelligent two-bus control panel.
2. If it is pressed after a fire is manually confirmed, an alarm signal may be sent to a fire alarm control panel which will, after receiving the alarm signal, display the coded address and the equipment status of the manual call point.
3. When the manual call point is operating normally, the red indicator will blink; when there is a fire alarm, it will remain lit.
4. The manual call point supports electronic coding and has a built-in fire telephone jack and a PHONE indicator, making its engineering application convenient.
5. Starting part: A plastic pressing sheet that may be used repeatedly. It can be manually reset with a special tool after being pressed.
6. Matched host machine: fire alarm control panel (such as AW-AFP2188)

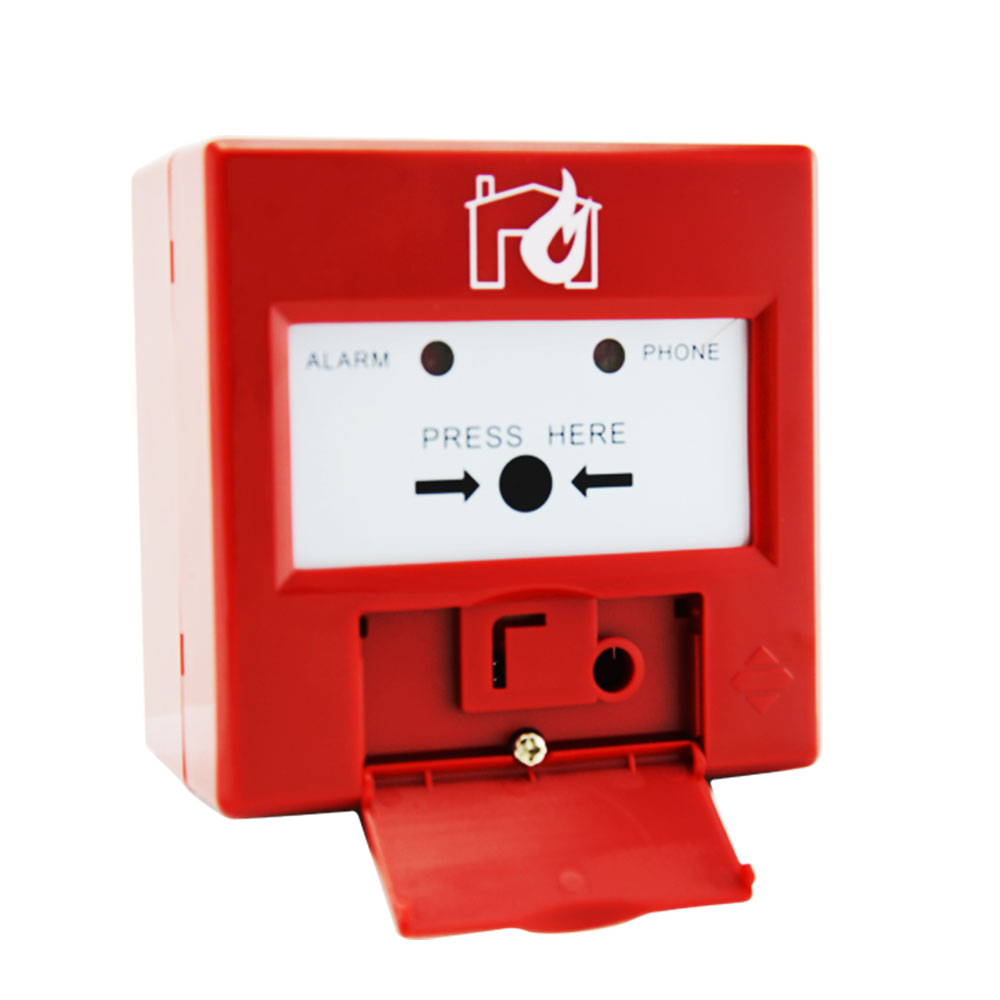

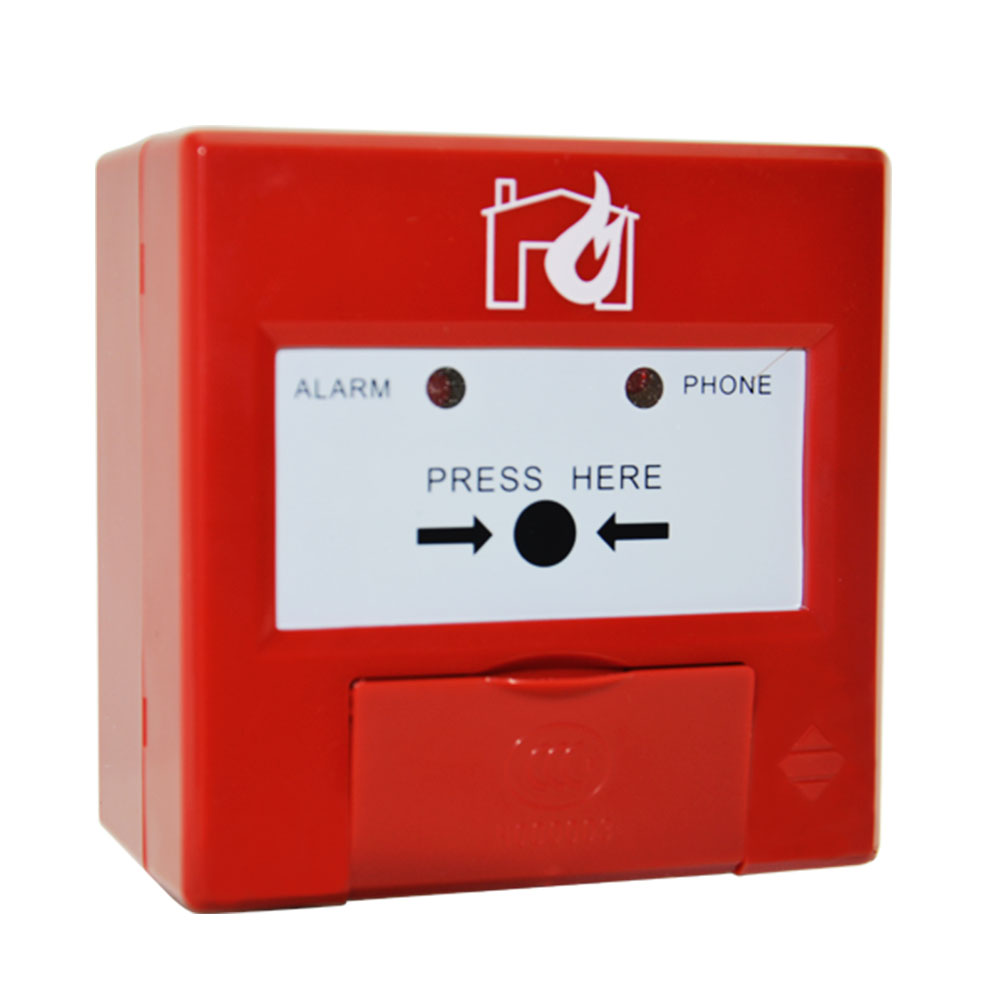

addressable manual call point"s picture display
addressable manual call point"s picture display
Packaging Details: Plastic, Cartons, plywood case.
Shipping:deliver by air mail or ship for your order( EMS, DHL,FedEx,UPS).
Delivery Time: 3-5 days.P
1. We offer OEM/ODM service of addressable manual call point
2. Quality assuance and rliabilty
3. Professional and experienced R&D center can offer free technical support.
4. One year warranty and technical maintenance.
1. Certificate: CE, ISO9001
2. Payment terms: T/T,L/C,Western union,Money Gram.
3. Addressable Manual call point warranty: One year
Please contact me freely to get more information of Addressable Manual Call Point .
| Name: | Bella Yu |
| Skype: | sales10_303 |
| Tel: | 0086-755-27663815-804 |
| ID: | cn1512961300 |
| Email: | sales10 @asenware.com |
Asenware specialized in the Fire Alarm and BMS(Building Management System) over 10 years.
We have 3 series fire alarm control systems with time-tested performance:
1. 2166 Series: Conventional fire alarm system with optional 1-32 zone panels.
2. 2188 Series: Addressable fire alarm system for middle fire project with optional 100/200/324 addresses.
3. 2100 Series: Addressable fire alarm control system for big fire project with minimum addresses starting from 648,648*2,648*N.
Addressable Manual Call Point Certification:
Addressable Manual Call Point "s show room
Addressable Manual Call Point "s show room
