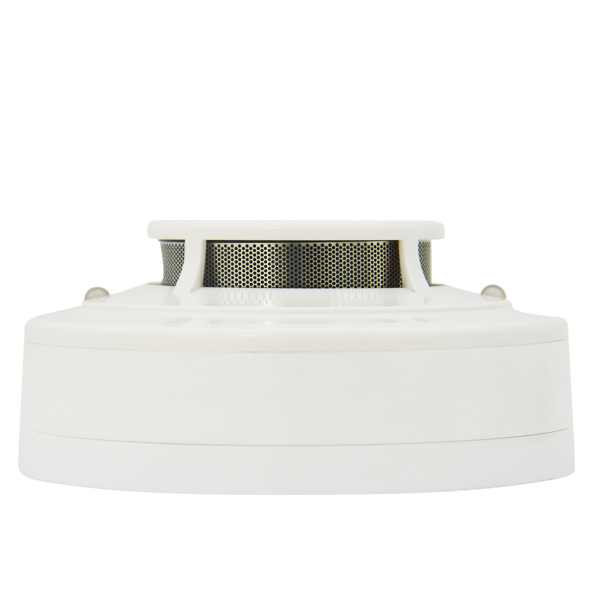

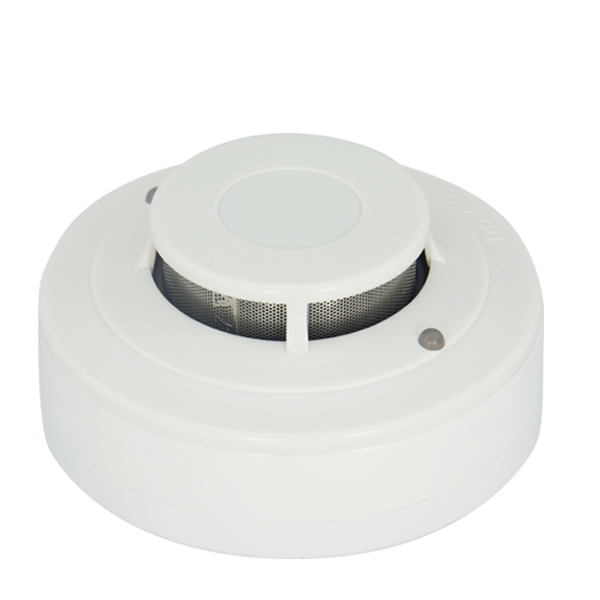

General Description: Fire alarm system 220V Smoke Sensor Detector Alarm Tester,home 2 wire Smoke Detector Alarm/ smoke alarm
1.The detector that initiated the alarm condition will have its red LED and relays latched until reset by panel.
2.Heat detector and smoke & heat detector combine a photo electronic sensing chamber and a temperature heat detector.
3. Smoke Alarm Sensitivity: 1.06± .26%FT
4. Easy Installation and maintenance
Products Specification: Home security Smoke Detector Fire Alarm CE certficated smoke detector 9-28VDC Fire Smoke Alarm Detector
| Operating Voltage Range: | 9 to 28 VDC Volts Non-polarized |
| Standby Current: | ≤120μ A@24VDC |
| Maximum Alarm Current (LED on): | ≤15mA@24VDC (1K Ohm current-limiting resistance) |
| Operating Humidity Range: | ≤95%RH(40°C±2°C) Relative Humidity, Non-condensing |
| Operating Temperature Range: | -10° C to 50° C (14° F to 122° F) |
| Smoke Alarm Sensitivity: | 1.06± .26%FT |
| Fix temperature Alarm: | 57° C (135° F) A1R |
| Rate of rise Alarm: | 7.1° C/5S A1R |
| Height: | 48.2 mm installed in Base |
| Diameter: | 99.45 mm |
Pictures: Unique photoelectric smoke alarm Fire Alarm smoke sensor for Home Security System, 24V smoke detector
Sample Room: Independent intellectual property rights wholesale from China conventional photoelectric smoke detectors
1) Professional experience and ability to accept and fulfill ODM/OEM orders.
2) Direct control on material, testing, quality, lead time ect.
3) Flexible Payment terms ranged at different quantity
4) One year warranty life for all detectors sold out from AILIF.
5) We accept TT/LC/Western Union payment
6) We accept OEM logo printing and customized package
Packaging : PP Bag per unit to protect/Carton Box outside
Shpping : UPS, FEDEX, EMS, DHL ect.
Production Line pictures: Photoelectric fire alarm Smoke Sensor/detector with CE certification, 2-wire smoke alarm
Testing pictures: Conventional Portable fire alarm smoke detector/sensor, very hot products smoke alarm
Certification: Fire Alarm system 2 wire sensor smoke detector and competitive price, smoke alarm sensor
Q1: How about the quality of the products?
A: We produce every product with good quality materials, and test carefully to make sure stable good quality before shipment. So please don"t worry for it, as we wanna long-term business cooperation with customers.
Q2: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3: What is the lead time?
A: Small qty order needs 3-5 working days, big qty order usually needs 10-15 working days depends on order qty.
Q4: How to proceed the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, if the color and position are alright, we would make sampling first from silk print factory and take picture for your second confirmation before mass production.
Q5: Do you offer guarantee for the products?
A: Yes sure, we offer one year guarantee for the products
