General Description: LCD Display Repeater for Addressable Fire Alarm Control Panel System
1. Each display panel is connected with a fire alarm control panel via a RS-48 bus. At most 99 display panels may be connected with each RS-485 bus.
2. The display panels can display fire alarm messages or feedback messages only rather than fault messages, action messages or other messages.
3. A fire alarm control panel may be used for setting the display area of a display panel. The set display panel can display the fire alarm messages of the designated area (floor display) only. Note: See the User’s Manual of the fire alarm control panel for the setting method.
Products Specification: New arrival Addressable fire alarm system repeater connected with each RS-485 bus
| Power supply | DC 24V ±20 % |
Overall power consumption | <3W |
| Operating environment | Indoor |
| Wiring system | Four-wire system, power lines (+24V, GND) and RS485 signal lines (485A, 485B) |
| Temperature | -10℃~+50℃ |
| Relative Humidity | ≤95% (40℃, without condensation) |
| Contact capacity |
Relay dry contacts, normally open or normally closed, capacity: 1.25A/DC30V (resistive load) |
| Size | 172mm*133mm*51mm |
| Weight | 320g |

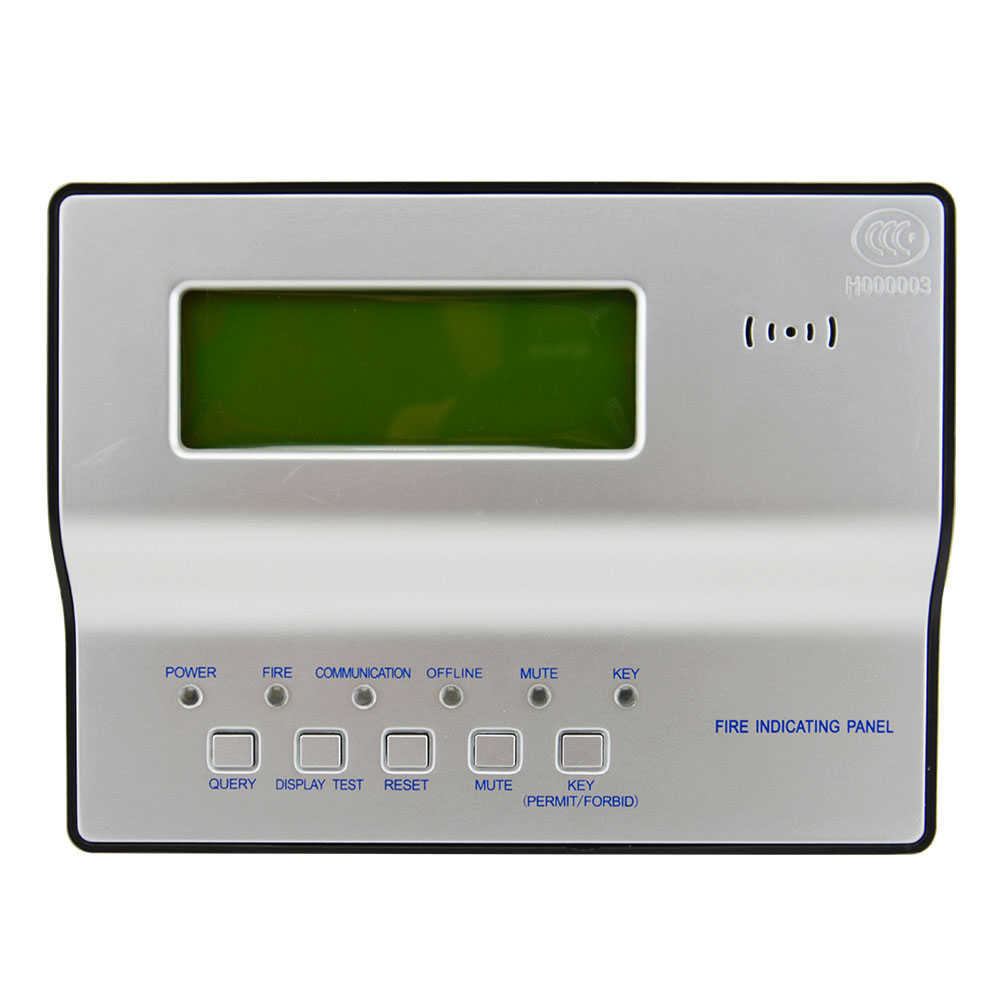

Pictures: 4-wire system Addressable Fire Alarm Repeater For Building
Sample Room: Building management protection fire alarm repeater or announcer approved CE
1) Professional experience and ability to accept and fulfill ODM/OEM orders.
2) Direct control on material, testing, quality, lead time ect.
3) Flexible Payment terms ranged at different quantity
4) One year warranty life for all detectors sold out from AILIF.
5) We accept TT/LC/Western Union payment
6) We accept OEM logo printing and customized package
Packaging : PP Bag per unit to protect/Carton Box outside
Shpping : UPS, FEDEX, EMS, DHL ect.
Our company is a professional fire alarm system & relevant accessories manufacturer in China about 10 years.With updated machinery and skilled staffs we have supplied stable high quality products to customers all over the world.
Our experianced engineers and exporting team will answer your inquiry or email at the first time,and providing professional service from products visiting,ordering to deliver goods and after-sales service, In the same time, we also can provide professional technical solutions for you item even can arrive your country.The aim is to saving your precious time and cost.
Visit pictures: Newest fire systems and alarms for high buildings with Announcer/ repeater

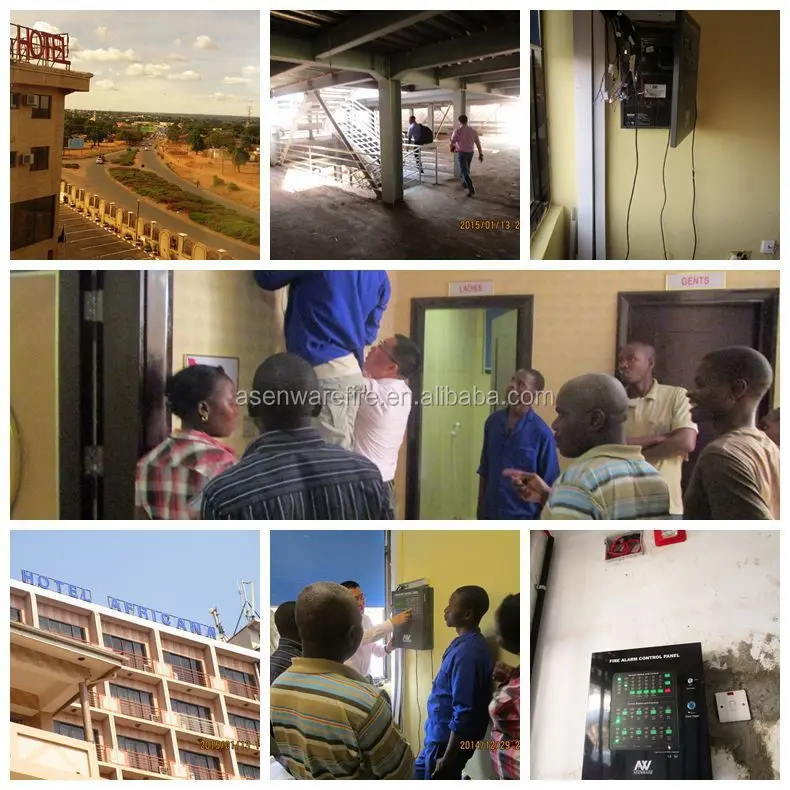

Testing pictures: Addressable fire alarm repeater installation at indoor
Certification: Fire LCD Display repeater or announcer Panel
Q1: How about the quality of the products?
A: We produce every product with good quality materials, and test carefully to make sure stable good quality before shipment. So please don"t worry for it, as we wanna long-term business cooperation with customers.
Q2: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3: What is the lead time?
A: Small qty order needs 3-5 working days, big qty order usually needs 10-15 working days depends on order qty.
Q4: How to proceed the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, if the color and position are alright, we would make sampling first from silk print factory and take picture for your second confirmation before mass production.
Q5: Do you offer guarantee for the products?
A: Yes sure, we offer one year guarantee for the products
