CE Approved Addressable Digital Type Smoke Detector , Fire Alarm Systems Smoke Sensor For Building
Parameters of Addressable Photoelectric Smoke Detector
CE Approved Addressable Digital Type Smoke Detector , Fire Alarm Systems Smoke Sensor For Building
| Name | Addressable Photoelectric Smoke Detector |
| Mode No. | AW-ASD2188 |
| Operating voltage | 24V (pulse modulation) |
| Wiring method | non-polarity two-bus system (L1, L2) |
| Operating current | < 300uA (monitoring status) / < 1.5mA (alarm status) |
| Operating environment | Indoor, temperature: -10°C~+55°C; |
| relative humidity: ≤95% (40°C±2°C, without condensation) | |
| Work indication | The red indicator will blink in the monitoring status or remain lit in the alarm status |
| Protection area | 60 Square meters |
| Installation | height: ≤12m |
| Weight(with the base) | about 70g |
| External dimensions diameter | 100mm |
| height | 55mm (with the base) |
| Coding mode | It can realize electronic coding via coder in situ. |
| Address codes 1 to 324 are available for selection. | |
| Alarm Indicate: | Red LED on |
Description
CE Approved Addressable Digital Type Smoke Detector , Fire Alarm Systems Smoke Sensor For Building
1. It can realize electronic coding and rewrite the address via coder in situ.
2. Within a single-chip microcomputer, it can process the sampling data in real-time, save the latest 144 historical data and realize a curve tracing for the field situation.
3. It has a temperature, humidity and dust accumulation drift compensation function and a sensor fault detection function (fault reporting to fire alarm control panel).
4. Non-polarity, two-bus connection that ensures convenient installation and maintenance.
5. Designed with an upper cover and a lower cover and installed on an independent base, it can be installed, debugged and maintained conveniently.

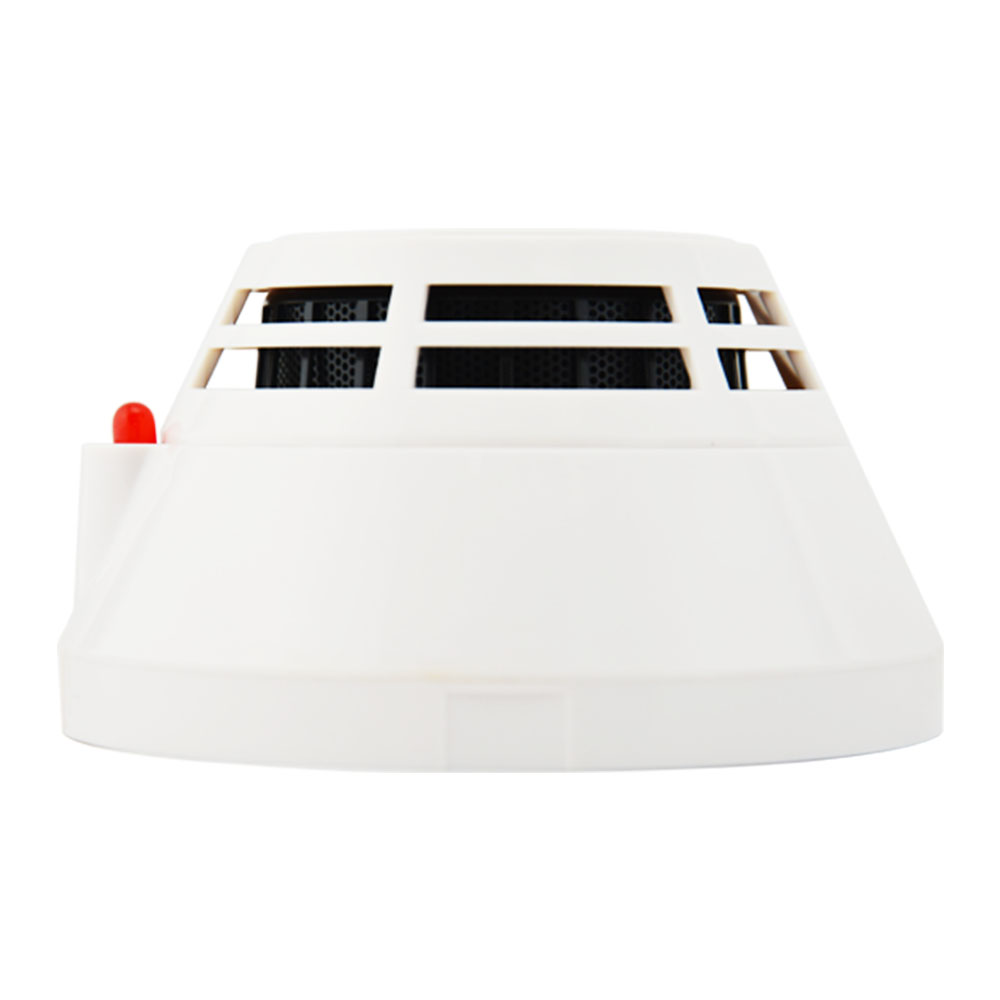

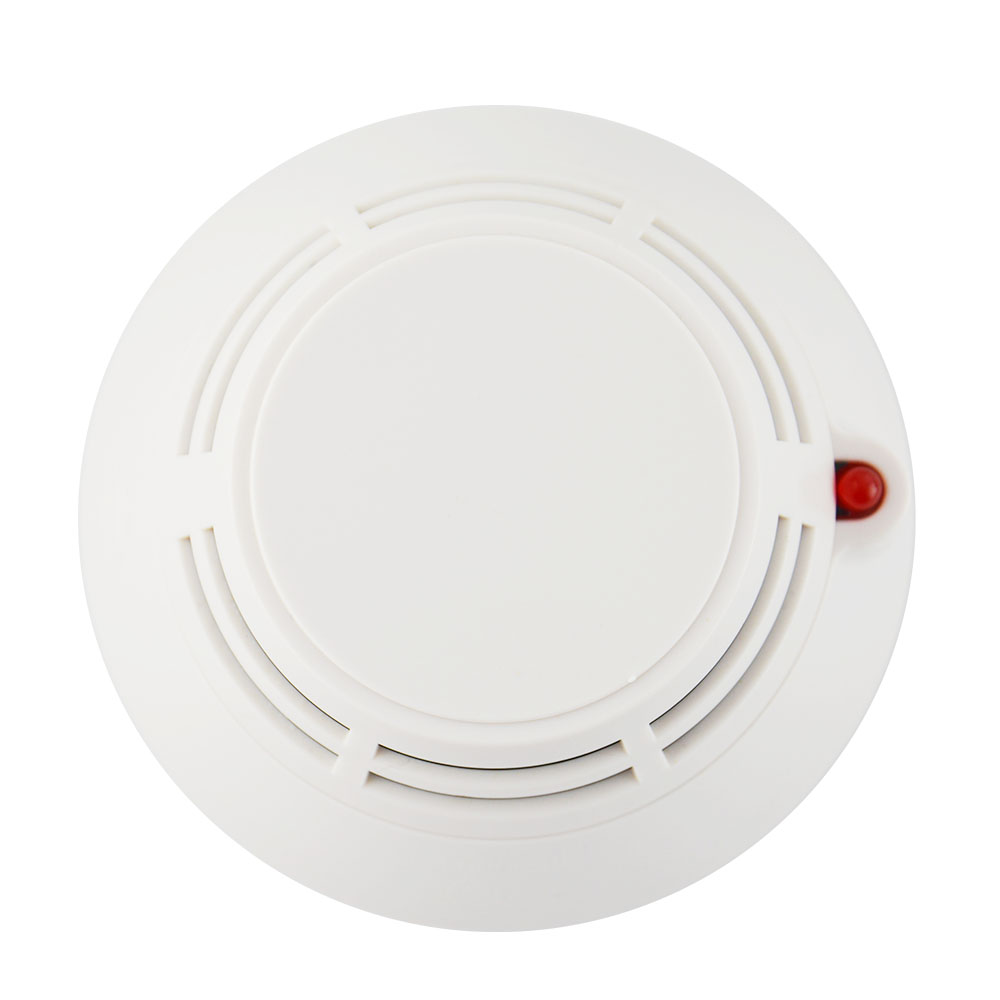

addressable photoelectric smoke detector display:
addressable photoelectric smoke detector display:
1. We offer OM/ODM service.
2. Quality assuance and rliabilty
3. Professional and experienced R&D center can offer free technical support.
4. Addressable Smoke Detector one year warranty and technical maintenance.
1. Certificate: CE ISO9001
2. Payment terms: T/T,L/C,Western union,Money Gram.
3. All-round technical support: Yes
4. Warranty: One year
Please contact me freely to get more information about Addressable Photoelectric Smoke Detector.
| Name: | Bella Yu |
| Skype: | sales10_303 |
| Tel: | 0086-755-27663815-804 |
| ID: | cn1512961300 |
| Email: | sales10 @asenware.com |
Asenware is specialized in the Fire Alarm and BMS(Building Management System) over 10 years.
We have 3 series fire alarm control systems with time-tested performance:
1. 2166 Series: Conventional fire alarm system with optional 1-32 zone panels.
2. 2188 Series: Addressable fire alarm system for middle fire project with optional 100/200/324 addresses.
3. 2100 Series: Addressable fire alarm control system for big fire project with minimum addresses starting from 648,648*2,648*N.
