General Description: Red Color Double Pole 24V Resettable addressable Emergency Button Manual Call Point
1. It can realize complete electronic coding and in situ rewriting with help of a coder.
2. Designed with an upper cover and a lower cover, it can be installed, debugged and maintained conveniently.
3. It is designed with a two-wire fire telephone jack and is therefore more applicable to engineering application.
4. Designed with passive output contacts, it can control other external equipment directly through an intermediate relay.
5. The pressing sheet on the manual call point will not get crushed after it is pressed, but can be reset by a special tool, so it can be used repeatedly.
Products Specification:
| Working Voltage | 24V (pulse modulation) |
Operating current: | <300uA (in the monitoring status); <2mA (in the action status) |
| Starting mode: | Press the pressing sheet manually. |
| Output contact: | Normally open contact; capacity: 0.1A/30VDC |
| Wiring method: | Non-polarity, two bus system (L1,L2) |
| Telephone jack: | Two-wire fire telephone jack (equipped with a standard 6.3 single-track audio connector). |
| Working temperature: | -10~+50 ℃,Humidity: 10% to 93%, Non-Condensation |

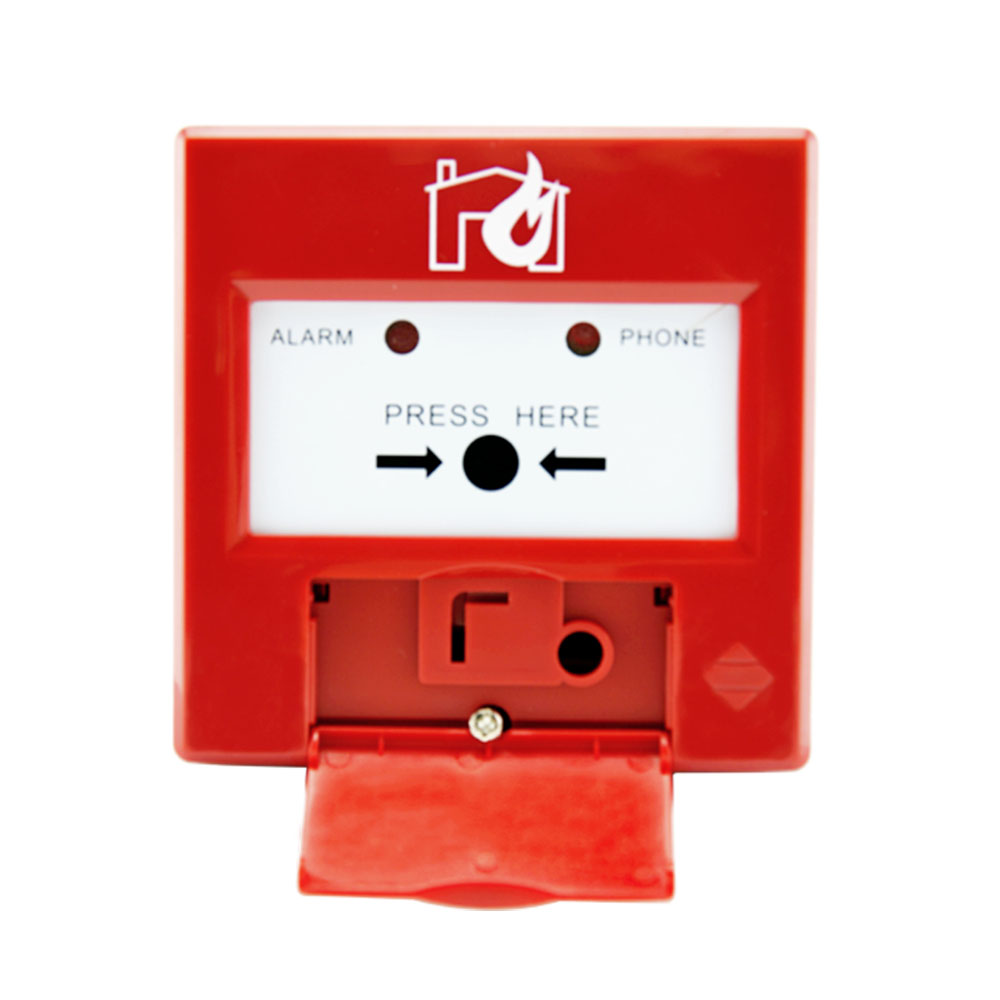

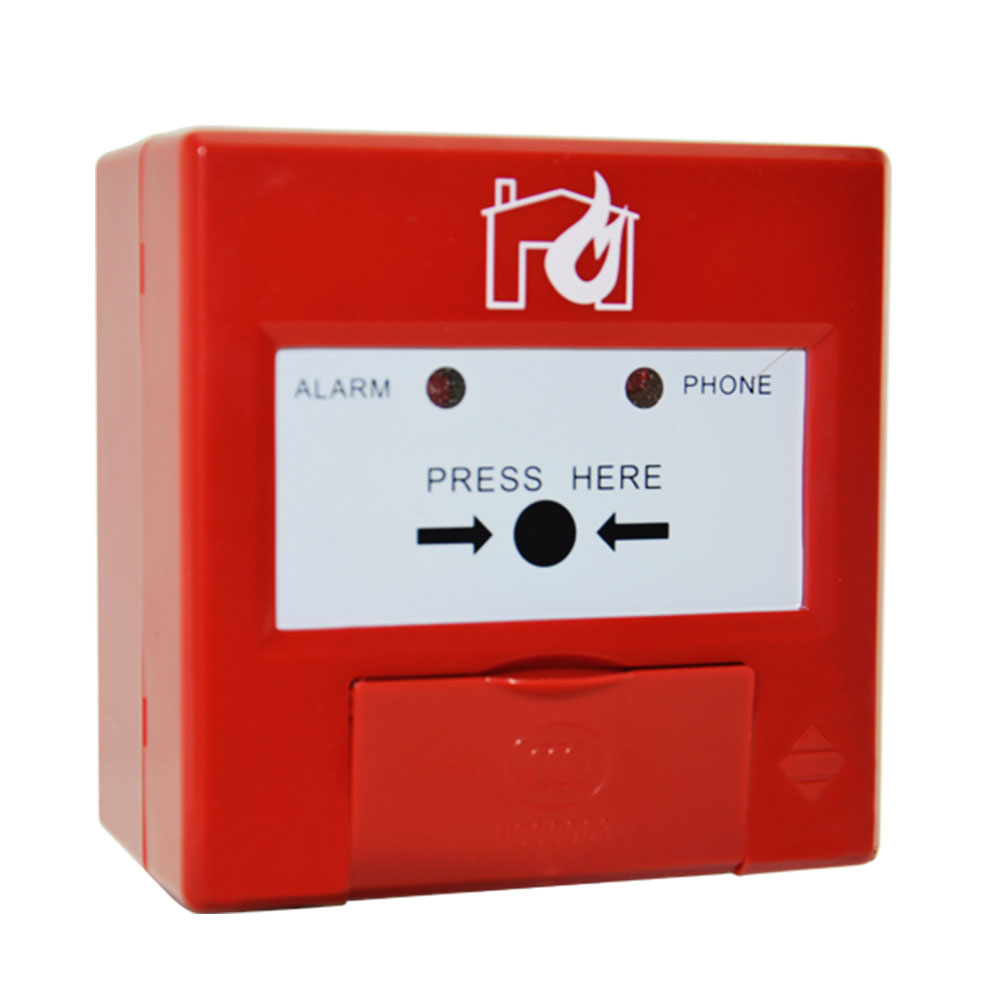

Pictures: Addressable Reset key Manual Call Point/Fire Alarm Reset Button/Fire Fighting Button
Sample Room: Manual call point for addressable fire alarm system can be reset
1) Professional experience and ability to accept and fulfill ODM/OEM orders.
2) Direct control on material, testing, quality, lead time ect.
3) Flexible Payment terms ranged at different quantity
4) One year warranty life for all detectors sold out from AILIF.
5) We accept TT/LC/Western Union payment
6) We accept OEM logo printing and customized package
Packaging : PP Bag per unit to protect/Carton Box outside
Shpping : UPS, FEDEX, EMS, DHL ect.
Our company is a professional fire alarm system & relevant accessories manufacturer in China about 10 years.With updated machinery and skilled staffs we have supplied stable high quality products to customers all over the world.
Our experianced engineers and exporting team will answer your inquiry or email at the first time,and providing professional service from products visiting,ordering to deliver goods and after-sales service, In the same time, we also can provide professional technical solutions for you item even can arrive your country.The aim is to saving your precious time and cost.
Installation at other country: Shenzhen manfuacture non-polarity resettable manual call point in red approved CE
Testing pictures: 220V 24V power Manual Call Point(Resetable)with CE certification
Certification: 2015 hot sell! Resettable Fire Manual Call Point with 220V 2LED light
Q1: How about the quality of the products?
A: We produce every product with good quality materials, and test carefully to make sure stable good quality before shipment. So please don"t worry for it, as we wanna long-term business cooperation with customers.
Q2: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3: What is the lead time?
A: Small qty order needs 3-5 working days, big qty order usually needs 10-15 working days depends on order qty.
Q4: How to proceed the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, if the color and position are alright, we would make sampling first from silk print factory and take picture for your second confirmation before mass production.
Q5: Do you offer guarantee for the products?
A: Yes sure, we offer one year guarantee for the products
