General Description: 2015 hot! Fire alarm System Addressable Input Module, Switch Monitor, Analogue Module
The AW-AIO2188-IN Intelligent input module (AW-AIO2188-IN module for short) is used with AW-AFP2188,a two-bus fire alarm control panel. It can be connected with a conventional smoke detector, a conventional heat detector, a conventional manual call point, a conventional hooter/horn and some other equipment. After the said equipment starts to operate, the alarm signal output will be sent by the AW-AIO2188-IN module to the fire alarm control panel through a signal bus to give a fire alarm.
Products Specification: Asenware Analogue Addressable Input Module,Switch Monitor Input Module for Smoke Detectors
Mode of operation: | Nonpolar two-wire system | ||
Quiescent current: | <0.5mA (bus); <6mA (power line) | ||
Action current: | <2mA (bus); <15mA (power line) | ||
Terminal load: | 4.7K resistance | ||
External dimensions: | 86×86×40(mm) | ||
Weight: | about 119g | ||
Operation indicator: | The inspection indicator will blink once about every 12 seconds in the inspection status or remain lit in the operation status. | ||

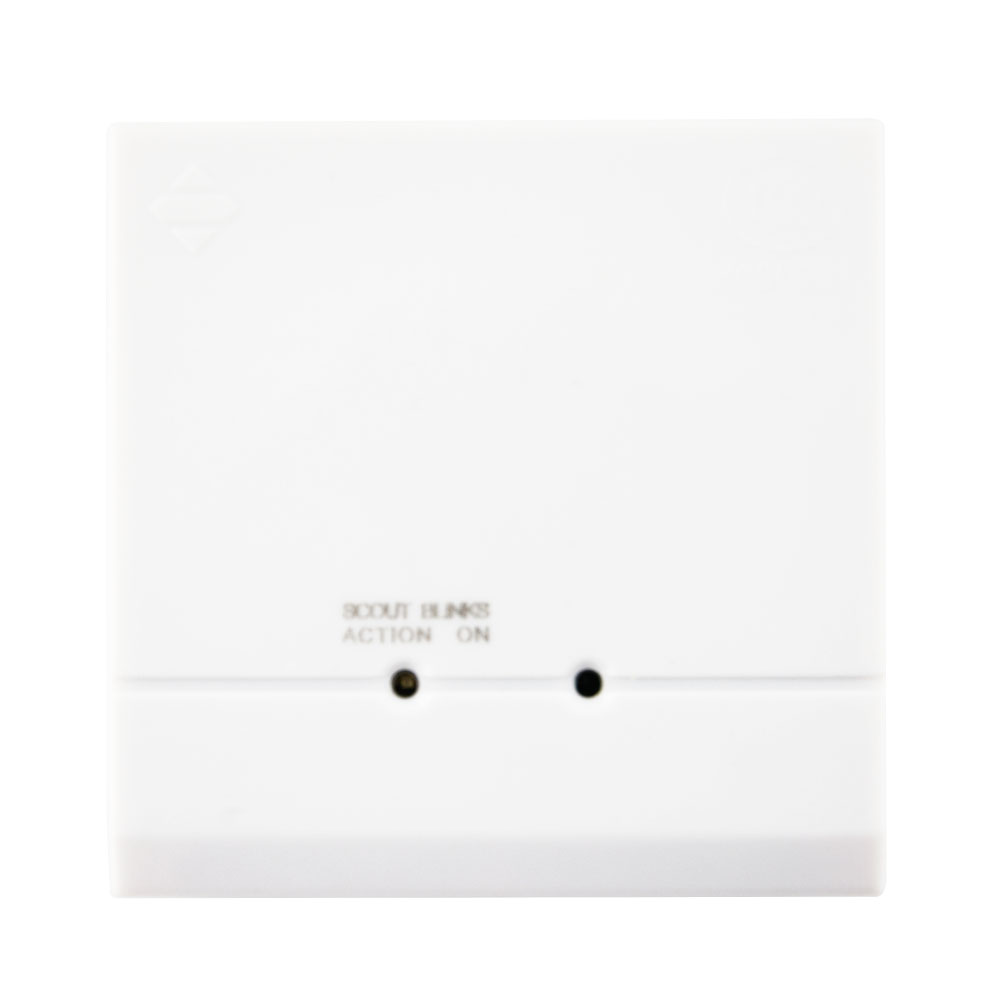

Pictures: Addressable Fire Alarm Input Monitor Module
Sample Room: Input Intelligent module for addressable fire alarm system
1) Professional experience and ability to accept and fulfill ODM/OEM orders.
2) Direct control on material, testing, quality, lead time ect.
3) Flexible Payment terms ranged at different quantity
4) One year warranty life for all detectors sold out from AILIF.
5) We accept TT/LC/Western Union payment
6) We accept OEM logo printing and customized package
Packaging : PP Bag per unit to protect/Carton Box outside
Shpping : UPS, FEDEX, EMS, DHL ect.
Our company is a professional fire alarm system & relevant accessories manufacturer in China about 10 years.With updated machinery and skilled staffs we have supplied stable high quality products to customers all over the world.
Our experianced engineers and exporting team will answer your inquiry or email at the first time,and providing professional service from products visiting,ordering to deliver goods and after-sales service, In the same time, we also can provide professional technical solutions for you item even can arrive your country.The aim is to saving your precious time and cost.

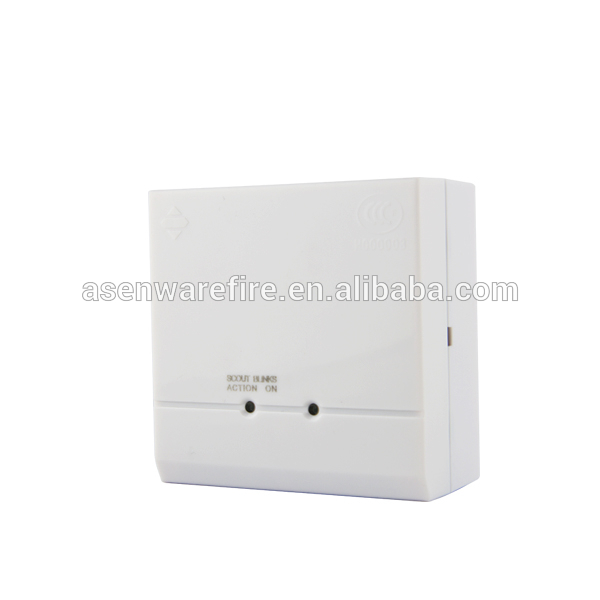

More pictures: Addressable Fire Alarm Control System Input Module with 2-wire bus system
Testing pictures: Building Security Firefighting Fire Alarm System, Addressable Input Module for connector more addressable smoke detector
Certification: Fire alarm Addressable Input Module CE Approval with CE
Q1: How about the quality of the products?
A: We produce every product with good quality materials, and test carefully to make sure stable good quality before shipment. So please don"t worry for it, as we wanna long-term business cooperation with customers.
Q2: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3: What is the lead time?
A: Small qty order needs 3-5 working days, big qty order usually needs 10-15 working days depends on order qty.
Q4: How to proceed the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, if the color and position are alright, we would make sampling first from silk print factory and take picture for your second confirmation before mass production.
Q5: Do you offer guarantee for the products?
A: Yes sure, we offer one year guarantee for the products
