Fire flame sensor 103*45mm 24VDC with palstic cover
General Description :
1. Ultraviolet-only flame detector designed to detect fires and provide alarm outputs directly from the detector while maintaining false alarm immunity.
2. It detects in the ultraviolet (UV) spectral range for optimized speed of response.
3. Fast and capable to detecting the ultraviolet (UV) rays emitted by a burning substance and is used in high hazard applicationssuch as petrochemical plants, munitions factories and other areas where flammable or explosive liquids or solids are handled or stored.
4. The flame sensor adopts an ultraviolet photosensitive tube, with qualities of highly sensitive, reliable, dust-resistant, corrosion proof and moisture-resistant, therefore is not sensitive in sunlight, dust, oil, tolerance of fume, and humidity.
5. Set in a standard calibration to detect a flames at a distance of 25 meters, which flame created by 2Kg ethanol in a Container of Base 33cmX33cm, Height 5cm.
Fire flame sensor 103*45mm 24VDC with palstic cover
Fire flame sensor 103*45mm 24VDC with palstic cover
Parameters of fire flame sensor | |
Name | Conventional UV Flame Detector |
Model NO | AW-FD602-UV |
Operating Voltage Range: | 12 to 30 VDC Volts |
Standby Current: | ≤10 mA @ 24 VDC |
Alarm Current: | ≤30 mA @ 24 VDC |
Height: | 1.8 inch (45 mm) installed in Base |
Diameter: | 4.0 inch(103 mm) |
| Weight: | 5.4 oz. (153g) |
| Spectrum: | 180~290nm |

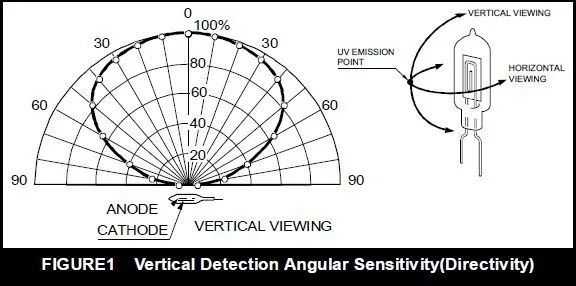

| Detection Angle: | 110 degree |
| Detection Sensitivity: | Grade I, 25m@flame (Container 33cmX33cm,Height 5cm with 2Kg ethanol ) |
| Relay Contact Load: | 1A@DC24V |
| Normal Status: | LED blinking in 5 seconds interval |
| Alarm Status: | LED lit steady |
| Protection rating: | IP 32 |
| Operating Humidity Range: | 10% to 93% Relative Humidity, Non-condensing |
| Operating Temperature Range: | -10°C to 50°C (14°F to 122°F) |
Fire flame sensor 103*45mm 24VDC with palstic cover
Wiring Diagram: Fire flame sensor 103*45mm 24VDC with palstic cover
Fire flame sensor 103*45mm 24VDC with palstic cover
Conventional Optional Accessories:
Wide Application: Fire flame sensor 103*45mm 24VDC with palstic cover
1. Pre-sales: Professional and experienced R&D center can offer free technical support and project budget.
2. Sales: All-around and all-weather online prompt reply as well as standard quotation.
3. After-sales: one year warranty and technical maintenance.
Fire flame sensor 103*45mm 24VDC with palstic cover
1. All-round technical support: Yes
2. Warranty: One year
3. Delivery time: Usually about 2 to 5 days.
4. Certificate: CE PLCB ISO9001
5. Payment terms: T/T , L/C , Western union , Money Gram
