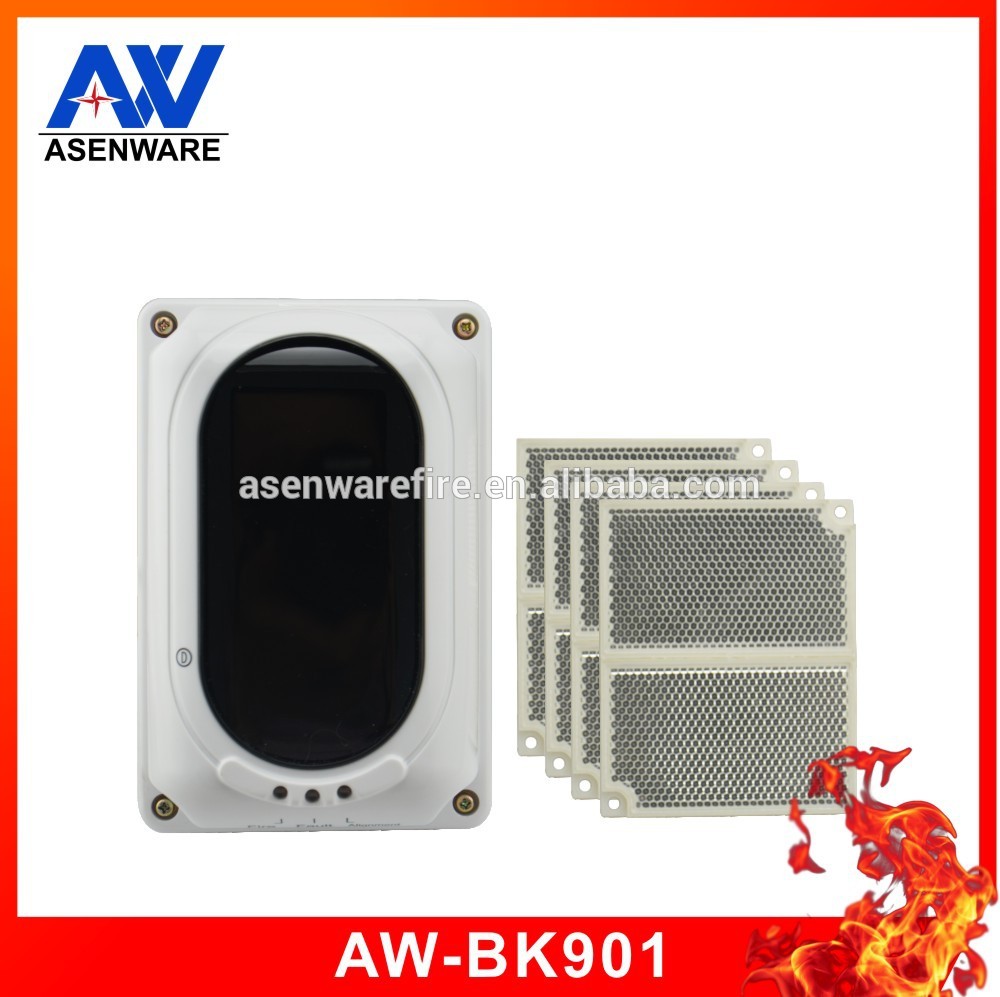

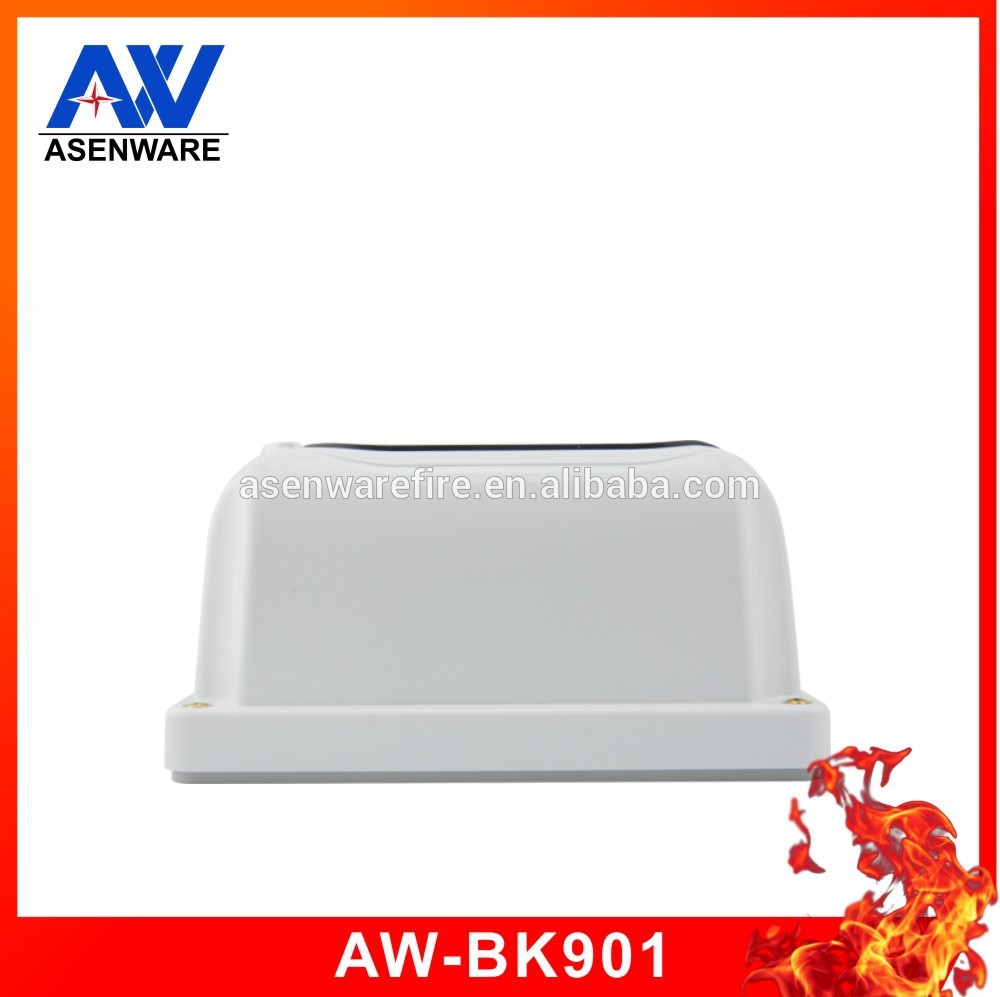

Asenware AW-BK901 beam smoke detector with reflector
1. Brief introduction : Asenware AW-BK901 beam smoke detector with reflector
a). Wide operating voltage range and wide protective area
b). Built-in microprocessor, intelligentized fire alarm and fault judgment
c). Integration of the transmitting part and the receiving part, good light path collimation
d). This reflection line infrared beam smoke detector which must be used together with a reflector.
2. Application Places : Asenware AW-BK901 beam smoke detector with reflector
a). Warehouses, large-scale storage areas, shopping plazas,body-building centers, gymnasiums, exhibition halls, hotel halls, printing works, costume plants, museums, prisons, etc, as well as space with light smoke dust.
3. Working principle : Asenware AW-BK901 beam smoke detector with reflector
a). When the light reduction rate reaches the preset threshold, the detector will activate the alarm signal;
b). When the light beam is completely blocked, the detector will produce the fault signal to prevent the false alarm caused by non-fire blockage.
| Parameter of infrared beam smoke detector | |
| Operating Voltage | DC16V~DC32V |
| Adjusting Angle | -6 DEG to +6 DEG |
| External Dimension | 206×95×95 mm |
| Materia | ABS |
| Color of the Casing | White, or as customized |
| Light path Length | 8m~100m |
| Operating Current | Monitoring current≤12 mA |
| Alarm current≤22mA | |
| Debugging current≤20mA | |
| Weight | 450g |
Asenware AW-BK901 beam smoke detector with reflector
Asenware AW-BK901 beam smoke detector with reflector
Asenware AW-BK901 beam smoke detector with reflector
1. Independent R&D center which can offer free technical support and project budget.
2. Sales: 24-hour online prompt reply as well as standard quotation.
3. After-sales: one year warranty and technical maintenance.
Asenware AW-BK901 beam smoke detector with reflector
1. All-round technical support: Yes
2. Warranty: One year
3. Delivery time: Usually about 2 to 5 days.
4. Certificate: CE LPCB ISO9001
5. Payment terms: T/T,L/C,Western union,Money Gram.
6. Shipping Packing: Paper carton or wood carton at option.
7. Modes of transportation: DHL,TNT,EMS,FedExpress,UPS,etc
