General Description: Fire alarm CE approved addressable Heat Detector usd for Chicken
1. It can realize electronic coding and rewrite the address via coder in situ.
2. Within a single-chip microcomputer, it can process the sampling data in real-time, save the latest 144 historical data and realize a curve tracing for the field situation.
3. It has a temperature, humidity and dust accumulation drift compensation function and a sensor fault detection function (fault reporting to fire alarm control panel).
4. Non-polarity, two-bus connection that ensures convenient installation and maintenance.
5. Designed with an upper cover and a lower cover and installed on an independent base, it can be installed, debugged and maintained conveniently.
Products Specification: Addressable 2 wire 24V temperature sensor, Non-polarity heat alarm heat detectr
| Operating Voltage Range: | 24V (pulse modulation) |
| Operating current: | <300uA (monitoring status) or <1.5mA (alarm status) |
| Wiring method : | Non-polarity two-wire bus addressable system(L1, L2) |
| Operating Humidity Range: | ≤95%RH(40°C±2°C) Relative Humidity, Non-condensing |
| Operating Temperature Range: | -10° C to 50° C (14° F to 122° F) |
| Installation height : | ≤8m |
| Protection area: | 60m2 |
| Height: | 56mm (With the Base) |
| Diameter: | 100 mm |

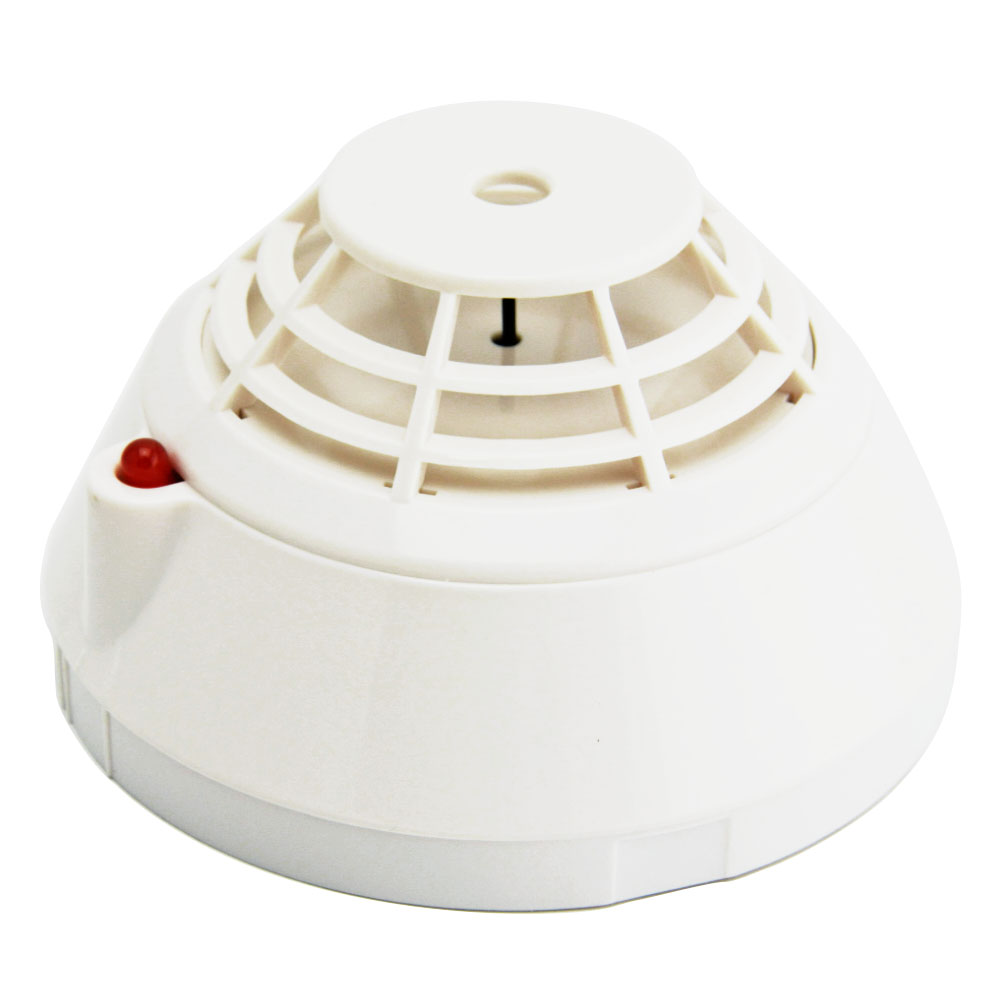

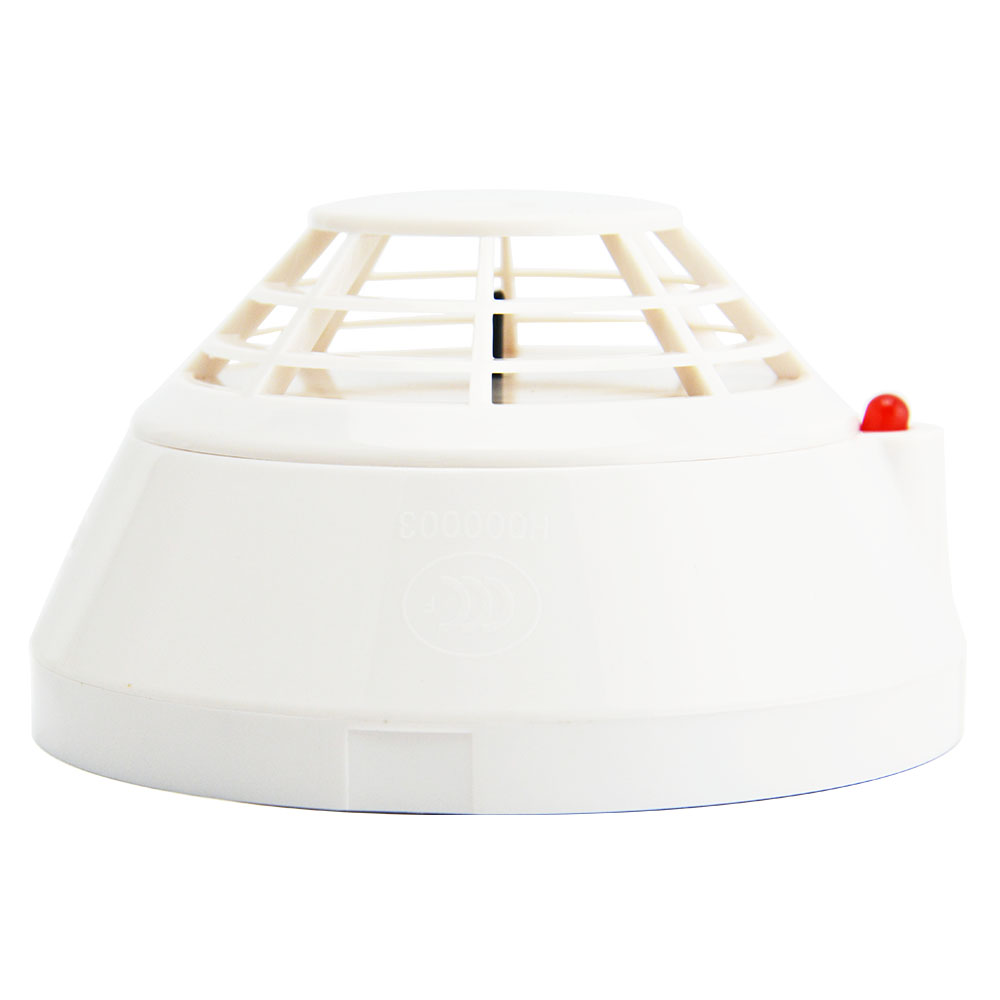

Pictures: Fire alarm System Ceiling addressable Heat Detector 220V heat alarm for chicken
Sample Room: Heat detector 2 wire bus system temperature sensor heat alarm Non-polarity
1) Professional experience and ability to accept and fulfill ODM/OEM orders.
2) Direct control on material, testing, quality, lead time ect.
3) Flexible Payment terms ranged at different quantity
4) One year warranty life for all detectors sold out from AILIF.
5) We accept TT/LC/Western Union payment
6) We accept OEM logo printing and customized package
Packaging : PP Bag per unit to protect/Carton Box outside
Shpping : UPS, FEDEX, EMS, DHL ect.
Our company is a professional fire alarm system & relevant accessories manufacturer in China about 10 years.With updated machinery and skilled staffs we have supplied stable high quality products to customers all over the world.
Our experianced engineers and exporting team will answer your inquiry or email at the first time,and providing professional service from products visiting,ordering to deliver goods and after-sales service, In the same time, we also can provide professional technical solutions for you item even can arrive your country.The aim is to saving your precious time and cost.
Production Line pictures: 24V addressable fire alarm heat detector heat alarm heat sensor
Testing pictures: New arrival addressable Heat detector for fire alarm panel system 2 wire
Certification: oem/odm non-polarity 2 wire addressable temperature heat detector
Q1: How about the quality of the products?
A: We produce every product with good quality materials, and test carefully to make sure stable good quality before shipment. So please don"t worry for it, as we wanna long-term business cooperation with customers.
Q2: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3: What is the lead time?
A: Small qty order needs 3-5 working days, big qty order usually needs 10-15 working days depends on order qty.
Q4: How to proceed the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, if the color and position are alright, we would make sampling first from silk print factory and take picture for your second confirmation before mass production.
Q5: Do you offer guarantee for the products?
A: Yes sure, we offer one year guarantee for the products
