2 Wire 220V AC Weather Proof Manual Call Point Resettable For Fire Alarm System
Description of Conventional Resettable Manual Call Point
2 Wire 220V AC Weather Proof Manual Call Point Resettable For Fire Alarm System
The manual fire alarm call points are resettable and installed in public places, when people confirm the fire broke out, pressing the button, it will send a signal to the fire alarm control panel, after the fire alarm control panel receives the alarm signal, the alarm sound.
1. This Manual call points are high reliable and easy to install.
2. Choice of flush or surface mounting
3. DC24V or AC220V powered, two wire connected.
Parameters of Conventional Resettable Manual Call Point
2 Wire 220V AC Weather Proof Manual Call Point Resettable For Fire Alarm System
Name of Manual Call Point | Conventional Resettable Manual Call Point |
Model NO of ResettableManual Call Point | AW-CMC2166-5 |
Working voltage: | 220VAC/50Hz or 24VDC |
Maximum current: | 5A (220VAC/50Hz) or 8A(24VDC) |
Contactor resistance: | ≤0.02Ω Resettable Manual Call Point |
| Working Temperature: | -10~+50 °C Resettable Manual Call Point |
| Relative Humidity: | 10%to 93%, Non-Condensation |

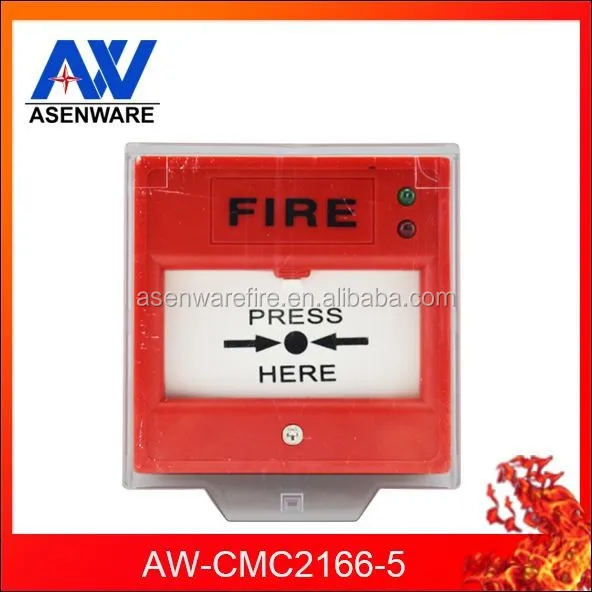

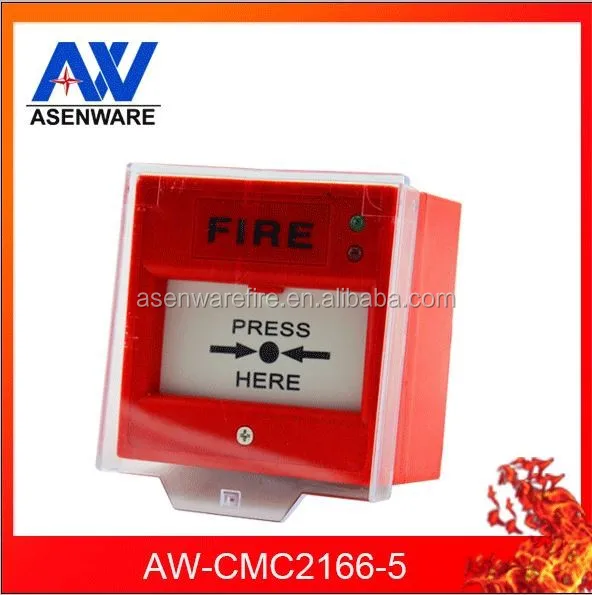

manual call point / Conventional Resettable Manual Call Point"s picture display
manual call point /break glass manual fire alarm call point "s picture display
Packaging Details: Plastic, Cartons, plywood case.
Shipping:deliver by air mail or ship for your order( EMS, DHL,FedEx,UPS).
Delivery Time: 3-5 days.P
1. We offer OEM/ODM service of resettable manual call point
2. Quality assuance and rliabilty
3. Professional and experienced R&D center can offer free technical support.
4. One year warranty and technical maintenance.
1. Certificate: CE, ISO9001
2. Payment terms: T/T,L/C,Western union,Money Gram.
3. Resettable manual call point warranty: One year
Please contact me freely to get more information of resettable manual call point .
| Name: | Bella Yu |
| Skype: | sales10_303 |
| Tel: | 0086-755-27663815-804 |
| ID: | cn1512961300 |
| Email: | sales10 @asenware.com |
Asenware specialized in the Fire Alarm and BMS(Building Management System) over 10 years.
We develop and manufacture addressable fire alarm system, conventional fire alarm system and CCTV Security alarm system etc. We can provide complete fire alarm solution.
We have 3 series fire alarm control systems with time-tested performance:
1. 2166 Series: Conventional fire alarm system with optional 1-32 zone panels.
2. 2188 Series: Addressable fire alarm system for middle fire project with optional 100/200/324 addresses.
3. 2100 Series: Addressable fire alarm control system for big fire project with minimum addresses starting from 648,648*2,648*N.
