Home > Products > Communication Towers DC6.5V 32cd Low intensity Double solar powered Red aircraft warning lights

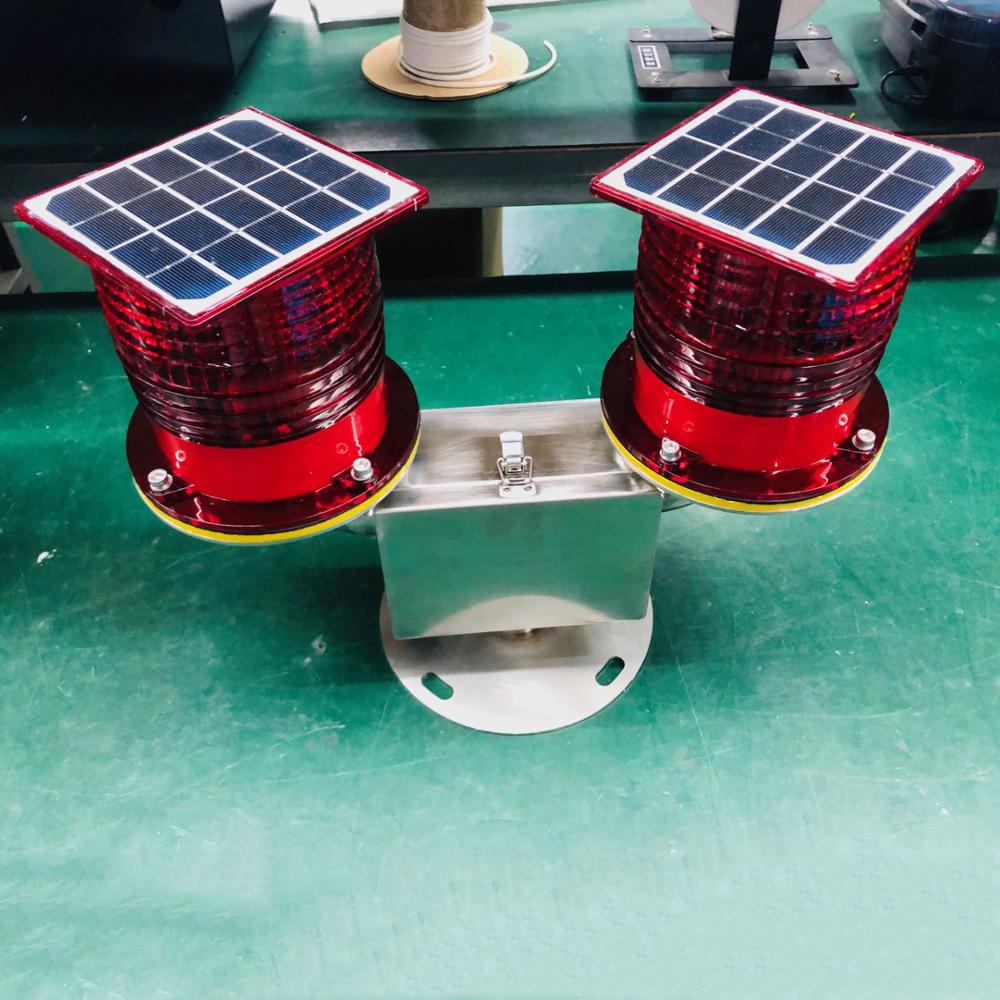

Communication Towers DC6.5V 32cd Low intensity Double solar powered Red aircraft warning lights
Click on the image to view the original image
Product： views：11Communication Towers DC6.5V 32cd Low intensity Double solar powered Red aircraft warning lights
Branch： CK
Type： Aviation Obstruction Lights
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 03:48
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
DC6.5
Lamp Power(W):
3
Lamp Luminous Flux(lm):
1
Lamp Luminous Efficiency(lm/w):
1
CRI (Ra):
1
Color Temperature(CCT):
Red
Beam Angle(°):
360
IP Rating:
IP65
Certification:
BV, CCC, CE, SASO
Emitting Color:
Red
Lamp Body Material:
Plastic and Stainless Steel
Base Type:
Others
Light Source:
LED, Bright LED
Place of Origin:
Hunan, China
Brand Name:
CK
Standard:
FAA,ICAO Standard
Light Color:
Red
Vertical Beam Spread:
≥10°
Horizontal beam angle:
360°
Flashing Frequency:
Steady On
Lifespan:
>100,000h
Light intensity:
32cd
Operating Voltage:
DC6.5V
Power Consumption:
≤3W
Supply Ability
Supply Ability:
10000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Corrugated box&wooden carton
Port
Shenzhen,Guangzhou
Lead Time:
Quantity(Units)1 - 50 >50
Est. Time(days)10To be negotiated

Application

It is suitable for installation on fixed buildings, structures, such as electric power towers, communication towers, chimneys, high-rise buildings, large bridges, large port machinery, large construction machinery, wind turbines and other obstacles to warn the aircraft.



Key Feature of CK-11L-TZ-S

  • UV-resistant PC material lampshade, with a transparency of over 90%, strong impact resistance, excellent harsh environment adaptability.
  • SUS304 stainless steel case and base, high structural strength, UV resistance, corrosion resistance.
  • The lithium battery is used for energy storage, and the electric conversion efficiency is high.
  • The micro-power intelligent control system ensures precise power management and low power consumption.
  • Low carbon tempered glass monocrystalline silicon solar panels with high energy efficiency (>18%) and a lifetime of more than 20 years.
  • High-efficiency LED light source with long life (more than 100,000 hours), low power consumption and high brightness.
  • A light-sensitive probe that conforms to the natural light spectrum curve is used to precisely control the automatic switch of the lamp.
  • The internal self-contained anti-surge device makes the circuit work more reliable.
  • The lights consists of two lamps, one main lamp and one standby lamp. The standby lamp is normally used as a backup and is automatically put into operation when the main lamp fails.

LED Source

LED

Emitting Color

Red

Flash Frequency

Steady Burning

Direction of illumination

Horizontal omnidirectional 360°

vertical ≥10°

Light Intensity

At night (<50cd/m2): ≥32cd,

Dusk and dawn, not applicable.

Power source

≤3W

LED lifespan

≥100,000 hours

Protect Ingress

IP65

Surge Prevention

10kA (Built-in Lamp)

Refer Net Weight

12kg

Installation Size

120.2mm×120.2mm-4×M10

Environment Humidity

Suit 0%~95%

Environment Temperature

-40℃ to +55℃

Salt Spray

Salt Spray in the air

Wind Load

240km/h



StructurePictures





Project Pictures



Recommend Product

Double Solar Power Medium Intensity Obstruction lights

Type A high intensity Obstruction lights



Type B Solar Power Medium Intensity obstruction lights



Why us?

1.Have 1 office and 2 factory,total 6000 square meter

2.Have Own R&D Department,We can research the new product by ourself.

3.Have own optical laboratory

4.Have own QC Team

5.Supply Communication Tower,Transimission Towers,Chimney,Building Designing for Aviation obstruction lights.

6.7/24 hours Sales Team and After-Sales Team



Product Warranty

  • Full warranty 3 years: We will provide Full three years’ guarantee for free that product is problem caused by quality.
  • Free Maintenance 5 years: From the 4th year to 5th year, We will provide product maintenance for free, when it’s damage by improper using or some other
    reason.(Note: Client should pay the freight to send product back)
  • When you use our product and have a failure, please contact with us. Don"t take it apart and repair it by yourself, Otherwise, we are not responsible for warranty.
