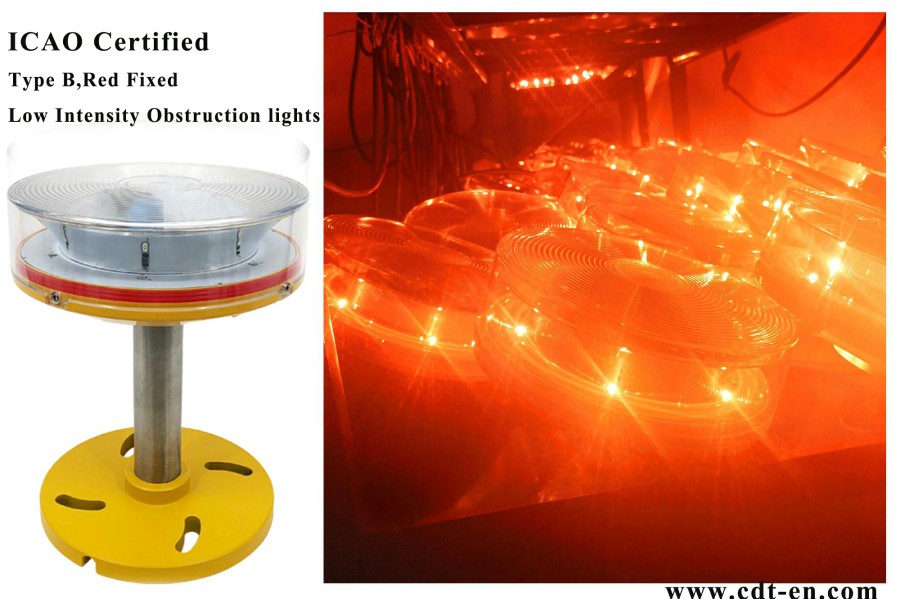

10cd red Type A aircraft warning lights,L-810 ICAO Type B LED Low Intensity Beacon lights airport

Click on the image to view the original image

Product：	views：710cd red Type A aircraft warning lights,L-810 ICAO Type B LED Low Intensity Beacon lights airport
Branch：	CM
Type：	Aviation Obstruction Lights
Size：	18X18X25 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 18:39

Product Details

Overview

Quick Details

Type:: Aviation Obstruction Lights

Input Voltage(V):: AC90V-AC260V

Lamp Power(W):: 3

Lamp Luminous Flux(lm):: 1

Lamp Luminous Efficiency(lm/w):: 1

CRI (Ra):: 1

Color Temperature(CCT):: Red

Beam Angle(°):: 360

IP Rating:: IP65

Certification:: BV, CCC, CE, SASO

Emitting Color:: Red

Lamp Body Material:: Aluminum Alloy

Base Type:: Others

Light Source:: LED, LED

Place of Origin:: China

Brand Name:: CM

Light Intensity(cd):: 32cd

Temperature Range:: -40 to 80°C

Waterproof:: IP65

Color:: Red

Flash rate:: Steady-Burning

Voltage:: AC90V-AC260V

Application:: Building,Towers

Standard:: CE,ICAO,CAAC

Packaging & Delivery

Selling Units:: Single item

Single package size:: 18X18X25 cm

Single gross weight:: 3.0 kg

Package Type:: Carton or Wooden Case

Lead Time:

Quantity(Piece)	1 - 100	>100
Est. Time(days)	15	To be negotiated

Application

Widely used in various fields of the air force,civilian airports and obstacle free airspace,helipads,iron tower,chimney,ports,wind power plants,bridge and city high-rise building where require aviation warning.

Products Description

Key Feature

● Using multiple optical design of parabolic curve, point of view, the more accurate visual range further.● Built-in LED constant current protection circuit, stable work.● UV - resistant PC material lamp shade, more than 95% transparency, adapt to different environment.● Flammability level of UL94V0, applicable to various industrial situations.● Using Fresnel lens optical design, range further.● Light source adopts LED with long lifespan up to 100,000hrs, lower power consumption and high efficiency.● The circuit of the light has surge protection whose lightning proof ability is In 7.5KA/5 times, Imax 15KA so that the light is suitable to harsh environment.● 304 Stainless Steel Brackets● Integral structure, protection lever of IP65.

Compliance

● FAA L-810 Obstruction Light, FAA AC150/5345-43G Specification for Obstruction Lighting Equipment(photometrics only)● FAA L-810(F) Obstruction Light, FAA AC70/7460-1L Specification for Obstruction Lighting Equipment● ICAO Annex 14, Volume 1, Sixth Edition, July 2013, ‘Aerodrome Design and Operations’

Product Paramenters

Refer	ICAO ANNEX 14 Low Intensity Obstruction lights
Light Source	LED
Available Colors	Red as standard.Other Colors available on request, including IR complies with ICAO
Horizontal Output(degrees)	360 degree
Vertical Divergence(degrees)	10 degree
Relfector Type	Signle LED Optic
Light Intensity(cd)	32cd
Flash	Steady Light
LED life Expectancy(hours)	>100,000
Operating Voltage	DC12V DC24V DC48V AC110V AC220V AC230V AC240 (Other Available)
Power(W)	3W
Circuit Protection	Integrated
Temperature Range	-40 to 80°C
Body Material	ABS-UV Stabilized
Lens Material	Bayer\|Polycarbonate-UV Stabilized
LED Beads	Cree Brand
Lens Diameter(mm)	173mm
Mounting(inch)	G1"
Height(mm)	75mm
Wind Speed	Up to 240Kph
