Wholesale Automotive 3 Phase Female Spade Terminal Connectors Supplier
Click on the image to view the original image
Product： views：3Wholesale Automotive 3 Phase Female Spade Terminal Connectors Supplier
Branch： SHCET
Type： Terminal/Disconnector
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 18:20
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
SHCET
Model Number:
RV-EN
Type:
Terminal/Disconnector
Product name:
Terminals and Disconnectors
Material:
Copper/pvc/nylon
Lead section:
0,5-6mm2(22-10)
Max Current:
9-48A
Color:
Red Blue Yellow or Others
Application:
Wire Connecting
Usage:
Electric Power
Package:
1000 pcs/bag
Supply Ability
Supply Ability:
100000 Bag/Bags per Month RV-EN Series Terminals/Disconnectors
Packaging & Delivery
Packaging Details
Plastic bag+inner box+outer carton box Terminals/Disconnectors
Port
Shanghai/Guangzhou

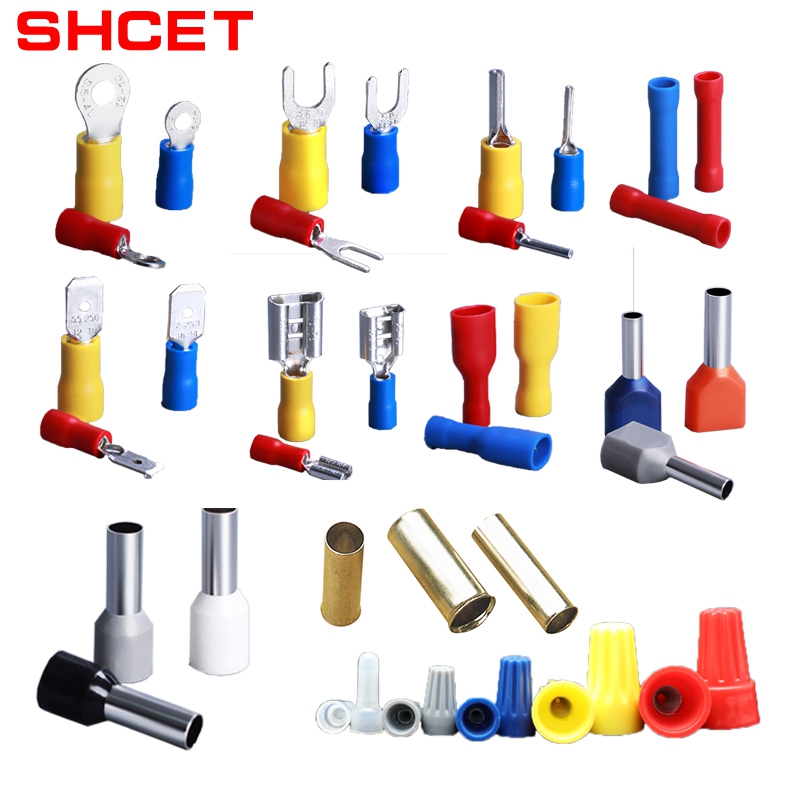

1.Product Description
Insulated terminals, also known as cold-pressed terminals, electronic connectors, air joints belong to cold-pressed terminals. It is an accessory product used to realize electrical connection, which is divided into connectors in industry. With the increasing degree of industrial automation and the stricter and more precise requirements of industrial control, the use of terminals is gradually increasing. With the development of the electronic industry, the use of terminals is more and more, and the types are more and more.



2.Specification

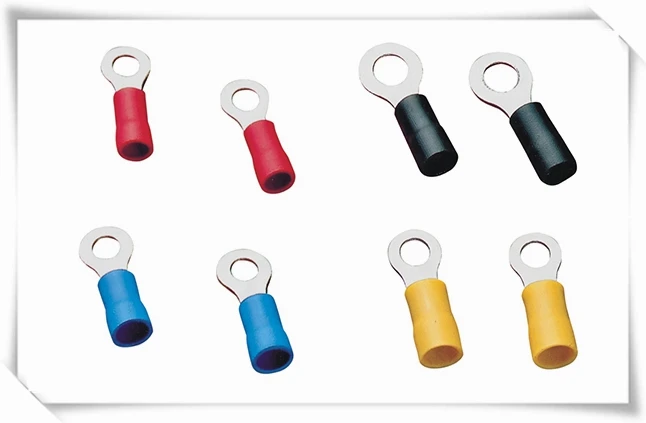

RING SHAPED INSULATED TERMINAL

Lead section :0.5-1.5mm2(22-16) Max Current:Imax=19A
Item NoBolt No. Bolt D2Dimension
B(mm)L(mm)F(mm)H(mm)Dφ(mm)Color
RV1.25-3#43,2mm5.717,84.9510,04.3red
RVS1.25-3,5#63,7mm5.717,84.95
RVM1.25-3,5#63,7mm820.16.3
RVL1.25-3,5#63,7mm821.57
RVS1.25-4#84,3mm6,620.16.3
RVL1.25-4#84,3mm821.57
RV1.25-5#105,3mm821.57
RV1.25-6 1/46.5mm11.627.511.1
RV1.25-8 5/168.4mm11.627.511.1
RV1.25-10 3/810,5mm13,631.613.9
Lead section :1,5-2,5mm2(16-14) Max Current:Imax=27A
Item NoBolt No. Bolt D2Dimension
B(mm)L(mm)F(mm)H(mm)Dφ(mm)Color
RV2-3#43,2mm6,617,84,310,04,9blue
RVS2-3,5#63,7mm6,617,84,3
RVM2-3,5#63,7mm6,621,07,0
RVL2-3,5#63,7mm8,522,57,75
RVS2-4#84,3mm6,621,07,00
RVL2-4#84,3mm8,522,57,75
RVS2-5#105,3mm8,522,57,75
RVL2-5#105,3mm9,522,57,75
RV2-6 1/46,5mm12,027,611,00
RV2-8  5/168,4mm12,027,611,00
RV2-10 3/810,5mm13,630,213,90
Lead section :2,5-4mm2(14-12) Max Current:Imax=37A
Item NoBolt No. Bolt D2Dimension
B(mm)L(mm)F(mm)H(mm)Dφ(mm)Color
RV3,5-4#84,3mm8,024,57,712,56,2black
RVS3,5-5#105,3mm8,024,57,7
RVL3,5-5#105,3mm12,027,97,7
RV3,5-6 1/46,5mm12,027,97,7
Lead section :4-6mm2(12-10) Max Current:Imax=48A
Item NoBolt No. Bolt D2Dimension
B(mm)L(mm)F(mm)H(mm)Dφ(mm)Color
RV5,5-3,5#63,7mm7,221,45,912,56,7yellow
RVS5,5-4#84,3mm7,221,55,9
RVL5,5-4#84,3mm9,525,58,3
RV5,5-5#105,3mm9,525,58,3
RV5,5-6 1/46,5mm12,021,513,0
RV5,5-8  5/168,4mm15,033,713,7
RV5,5-10 3/810,5mm15,033,713,7
RV5,5-12 1/213,0mm19,238,116,0

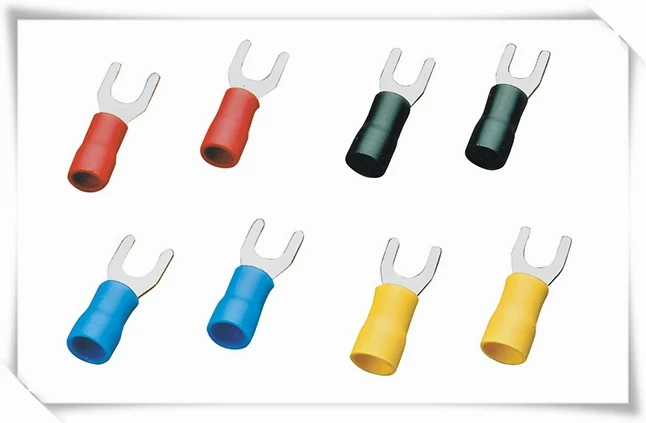

SPADE SHAPED INSULATED TERMINAL

Lead section :0,5-1,5mm2(22-16) Max Current:Imax=9A
Item NoBolt No. Bolt D2Dimension
B(mm)L(mm)F(mm)H(mm)Dφ(mm)Color
SV1,25-3#43,2mm5,721,26,510,04,3red
SV1,25-3,5#63,7mm5,721,26,5
SVL1,25-3,5#63,7mm6,421,26,5
SVS1,25-4#84,3mm6,421,26,5
SVM1,25-4#84,3mm7,221,26,5
SVL1,25-4#84,3mm8,121,26,5
SVS1,25-5#105,3mm8,121,26,5
SVL1,25-5#105,3mm9,521,26,5
SVS1,25-6 1/46,5mm9,521,26,5
SVL1,25-6 1/46,5mm12,021,211,0
Lead section :1.5-2.5mm2(16-14) Max Current:Imax=27A
Item NoBolt No. Bolt D2Dimension
B(mm)L(mm)F(mm)H(mm)Dφ(mm)Color
SV2-3#43,2mm5,721,26,510,04.9blue
SV2-3,5#63,7mm5,721,26,5
SVL2-3,5#63,7mm6,421,26,5
SVS2-4#84,3mm6,421,26,5
SVM2-4#84,3mm7,221,26,5
SVL2-4#84,3mm8,121,26,5
SVS2-5#105,3mm8,121,26,5
SVL2-5#105,3mm9,521,26,5
SVS2-6 1/46,5mm9,521,26,5
SVL2-6 1/46,5mm12,021,211,0
Lead section :2.5-4mm2(14-12) Max Current:Imax=37A
Item NoBolt No. Bolt D2Dimension
B(mm)L(mm)F(mm)H(mm)Dφ(mm)Color
SV3.5-4#84,3mm824.8712.56.2black
SV3.5-5#105,3mm824.87
SV3.5-6 1/46.5mm122812.1
Lead section :4-6mm2(12-10) Max Current:Imax=48A
Item NoBolt No. Bolt D2Dimension
B(mm)L(mm)F(mm)H(mm)Dφ(mm)Color
SV5,5-3,5#63,7mm8,325,27,512,56,7yellow
SVS5,5-4#84,3mm8,325,27,5
SVL5,5-4#84,3mm9,023,97,5
SV5,5-5#105,3mm9,023,97,5
SVS5,5-6 1/46,5mm9,023,97,5
SVL5,5-6 1/46,5mm12,031,212,0
SV5,5-8  5/168,4mm14,030,011,5

Lead section :4-6mm2(12-10) Max Current:Imax=48A
Item NoBolt No. Bolt D2Dimension
B(mm)L(mm)F(mm)H(mm)Dφ(mm)Color
SV5,5-3,5#63,7mm8,325,27,512,56,7yellow
SVS5,5-4#84,3mm8,325,27,5
SVL5,5-4#84,3mm9,023,97,5
SV5,5-5#105,3mm9,023,97,5
SVS5,5-6 1/46,5mm9,023,97,5
SVL5,5-6 1/46,5mm12,031,212,0
SV5,5-8  5/168,4mm14,030,011,5

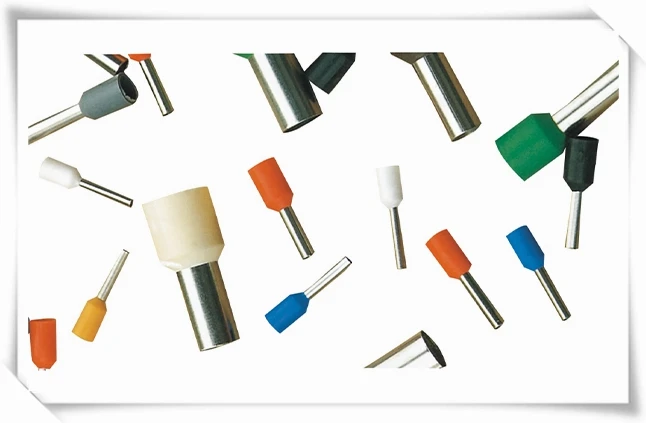

CORD INSULATED END TERMINAL

Item NoDimension Color
F(mm)L(mm)W(mm)B(mm)D(mm)C(mm)A.W.Gmm2
E05066122,661,31#220,5Orange,white
E0508814
E05101016
E05121218
E7506612,42,86,41,51,2#200,75white,blue
E7508814,6
E75101016,4
E75121218,4
E75181824,4
E1006612,436,41,71,4#181yellow,red
E1008814,6
E10101016,4
E10121218,4
E1508814,656,421,7#161,5red,black
E15101016,4
E15181824,4
E2508815,2472,62,3#142,5blue,grey
E25121219
E25181825
E4009916,54,47,53,22,8#124grey,orange
E40121219,5
E40181825,5
E601212206,383,93,5#106black,green
E60181826
E10-121221,57,69,54,94,5#710milky white,brown green
E10-181827,5
E16-1212228,810,26,25,8#516green,milky white
E16-181828,2
E25-16162911,2137,97,5#425brown green,black
E25-222235
E35-16163012,7148,78,3#235greyish brown
E35-252539
E50-20203615,31610,910,3#150olive
E50-252541

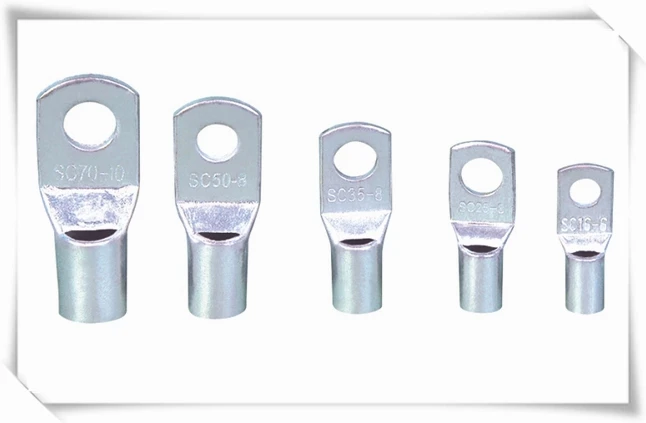

SC(JGK)SC(JGA) IMPORTED COPPER CONNECTING TERMINALS

Item No.φ(mm)D(mm)D(mm)L(mm)
SC(JGK)-1.5φ4.2, φ5.23.51.818
SC(JGK)-2.5φ4.2, φ5.2, φ6.242.519
SC(JGK)-4φ5.2, φ6.24.83.121
SC(JGK)-6φ5.2, φ6.2, φ8.25.53.824
SC(JGK)-10φ6.2, φ8.26.84.825.5
SC(JGK)-16φ6.2, φ8.2, φ10.57.55.530.5
SC(JGK)-25φ6.2, φ8.2, φ10.59734
SC(JGK)-35φ6.2, φ8.2, φ10.5, φ12.510.58.238
SC(JGK)-50φ8.2, φ10.5, φ12.512.59.845
SC(JGK)-70φ8.2, φ10.5, φ12.514.511.550
SC(JGK)-95φ10.5, φ12.517.513.855.5
SC(JGK)-120φ12.5, φ16.519.515.563
SC(JGK)-150φ12.5, φ16.52116.571
SC(JGK)-185φ16.523.518.878
SC(JGK)-240φ16.526.52192
SC(JGK)-300φ16.5, φ20.53024102
SC(JGK)-400φ16.5, φ20.53426.5113
SC(JGK)-500φ16.5, φ20.53830123
SC(JGK)-630φ20.54535135
SC(JGK)-800φ22.55039170
SC(JGK)-1000φ22.55644200

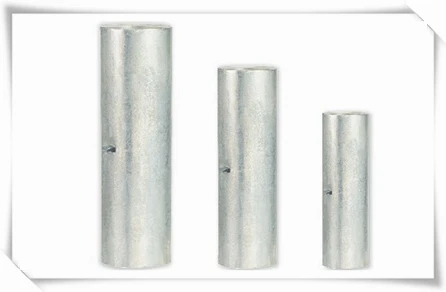

MIDDLE BARE JOINTS

Item No.Dimensionmm²
Dφ(mm)Dφ(mm)Lφ(mm)
GTY-1.53.71.2200.5-1.5
GTY-2.542.5201.5-2.5
GTY-44.83.1202.5-4
GTY-65.53.8254-6
GTY-106.84.83010
GTY-167.55.53516
GTY-25974025
GTY-3510.58.14535
GTY-5012.59.85050
GTY-7014.511.55570
GTY-9517.513.56095
GTY-12019.515.565120
GTY-1502116.570150
GTY-18523.518.575185
GTY-24026.52180240
GTY-300302485300
GTY-400342790400
GTY-5003830100500
GTY-6304535110630

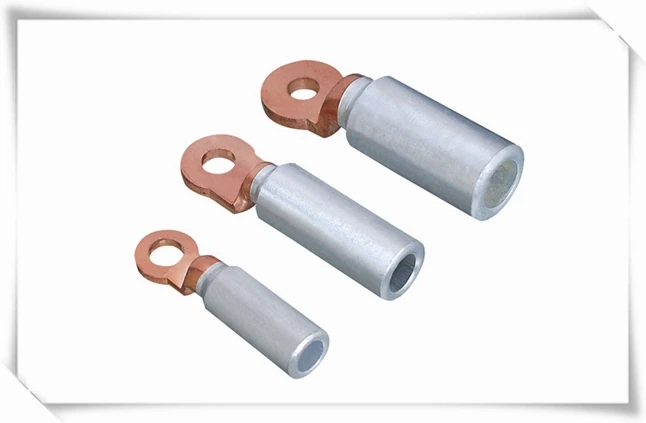

DTL-2 COPPER-ALUMINUM CO NNECTING TERMINAL(EXPORT TYPE)

Item No.φ(mm)d(mm)D(mm)L1L
DTL-2-16135.5164285
DTL-2-25136.5164285
DTL-2-35138164285
DTL-2-50139204590
DTL-2-701311204590
DTL-2-951312.5204590
DTL-2-1201313.72560115
DTL-2-1501315.52560115
DTL-2-1851317.53260122
DTL-2-2401319.53260122
DTL-2-3001322.53462125



3.More Products

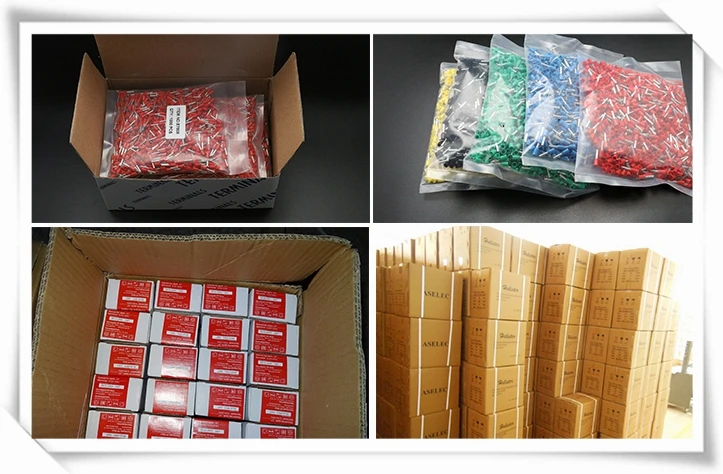

4.Packaging&Shipping



5.Certificate

6.Our Company



7.FAQ

Q1: Can I have a sample for testing?
A: Yes, we can offer free sample, but you should afford the shipping cost.

Q2: Can I add my logo on the products?
A: Yes, OEM and ODM are available for us.

Q3: How can I get the after-service?
A: We will send you the free spare parts if the problems caused by us. If the products cannot be repaired, we will sendyou new free quantity together with next order.

Q4: Do you have inspection procedures for products?
A: our products100% self-inspection and testing before packing.

Q5: Can I have a visit to your factory before the order?
A: Sure, welcome to visit our factory.
Here is our factory address: #7 Tongyi Industrial Area, Zhongshan City, Guzhen.
Our factory is near Guangzhou airport, and we can pick you up in the airport, Hotel booking service is available.

Q6: How about delivery time of the order?
A: 15-20 days after getting deposit.

Q7: How about payment terms?
A: 20%-30% deposit, the rest payment balance against B/L. If have regular order and good order quantity, we can give delay payment
