Specifications
(1)microswitch action push button
(2)16mm waterproof up to IP67,
(3) flat actuator ,DPDT,ring illuminated
(4) TUV,CE,BV
microswitch action push button
| (5) Contact resistance : | ≤50 mΩ |
(6) Insulation Resistance : | ≥ 1000 mΩ |
(7) Dielectric intensity : | 2000 VAC |
| (8) Operating temp : | -20°c -+ 55°c |
| (9) Mechanical life: | 1,000,000 cycles |
| (10) Electrical Life: | 50,000 cycles |
| (11) Panel thickness: | 1-10mm |
| (12) Torque: | 4-15Nm |
| (13) Rohs status : | Rohs ( made to order) |
(14) Certifications : | CNAS,RoHs,SGS,FCC,CE,TUV,BV |
| (15) Momentary: | when you push switch and then move your finger, the actuator will back to the original position. |
| (16)Latching: | when you press the button, it keeps pressed until you press again |
| (17) Contact: | The contact is a conducting part designed to be united by pressure to another conducting part for the purpose of carrying current. |
| (18) N.C.: | Normally Closed circuit |
| (19) N.O.: | Normally Open circuit |
| (20) SPST: | Single Pole Single Throw |
| (21)DPDT: | Double Pole Double Throw |
| (22) International express : | DHL,UPS ,FEDEX,EMS ,TNT ( discount freight ) |
| (23)Advantage | Very sensitive when touch |
| (24)Advantage | Wonderful material with silver plated gold |
| (25)Advantage | Wonderful heat dissipation |
MP16S/F22-E Red Led Lighted Microswitch Action Push Button 16mm(TUV,CE)
(1) Parameters
(2) Certifications
Continuous improvement principle and pursuing excellence quatity principle
(3) Packaging
1: Neutral packing : plastcic bag for goods +inner box bubble+ inner box+carton
2: Upon customers" request ,but the price is different with neutral packig
3: Carton spec: 29*23*31
4: 40 pcs/box,10boxes/carton
(4) FAQ:
1: How do i get samples?
Ask me via E-mail , we will arrange samples for you immediately , you will get the samples in 3 days via international express ,as DHL,FEDEX,UPS,EMS, TNT to door service , which is all up to you . If you order one or two pcs samples , we will offer to you for free charge ,but you should pay the freight which is discount price from international express.
2:How to ship samples out to me?
Generally,the order is not very heavy . so we will choose fast way to sent sample out , even same orders , Like DHL , FEDEX ,EMS, TNT,UPS and so on.It"s all up to your choice .You will get samples (same orders ) in 3-5days by international express to door service .
3: When does company send order out ?
On usual , Once received your order payment to Escrow, We will arrange order products immediately ,and the order will be in your hand by 3-5days .
4: How to get more information about product?
When use your order products, any questions, please feel free to contact me. We are here for you.
5: How do I know if a switch is washable or sealed?
On the product detail page of every series you will find information about the switch. If it is washable or sealed to a certain IP rating, it will list it on the product detail page. To get to the product detail page, go to our product catalog and search by type or by feature.
6: How do I know if a cap is available for a switch?
If a specific product uses caps, the cap options are listed on the product detail page on a tab toward the bottom. If you would like to see a list of our full cap options.
7:How do I know if a part number is RoHS certified?
It is a safe assumption to note that all our switches comply with RoHS standards. You can find our complete library of RoHS certifications by part number.
8: Could I get your complete price list ?
As over hundreds of models with various function and colors for optional, it is difficult to make the complete price list. Besides, also our price is based on the quantities per lot due to cost reason, we couldn"t quote without complete information from you.
9: Could I visit your factory ?
Yes. No problem. Please kindly inform us before visiting date to avoid holidays or our managers schedule to overseas or meeting with other customers at that time.
(5) Feedback
We WARMLY appreciate your positive feedback and our system will leave positive feedback for you after complete transaction.
We value our customers so that if you have a problem ,PLEASE FEEL FREE and DON"T HESITATE TO CONTACT US BY EMAIL IMMEDIATEDLY, we are always there to offer help
(8) Pictures

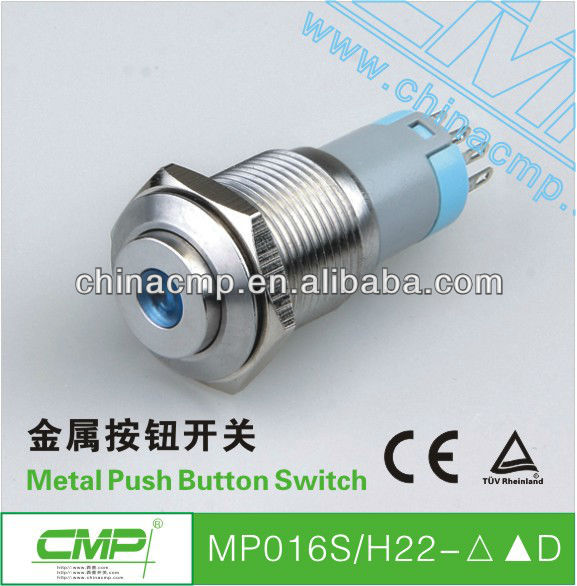

microswitch action push button feature a metal body and actuator with a water resistant body design.A wide varieety of options,including bi-color illumination,different actuator styles and the capacity for a long life expectancy give this switch a unique ability to be used in many public related applications such as elevators,kiosks and parking ticket dispensers
The 16mm series water resistant, sealed, anti-vandal switches feature long life and custom laser engraved marking options. This microswitch action push button features a clean, aesthetic look for high end products. It has a panel cutout size of 16mm. It is sealed to IP67 ratings. Our microswitch action push button are popular for use in elevators and kiosk applications, ticket dispensers and industrial-type applications.
