Home > Products > Size 16mm Ring 12v LED Switch / Momentary Lighted Pushbutton ( 1NO1NC or 2NO2NC)
Size 16mm Ring 12v LED Switch / Momentary Lighted Pushbutton ( 1NO1NC or 2NO2NC)
Click on the image to view the original image
Product： views：2Size 16mm Ring 12v LED Switch / Momentary Lighted Pushbutton ( 1NO1NC or 2NO2NC)
Branch： CMP
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 23:24
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
CMP
Model Number:
MP016S/F22----E
Size:
16mm
Max. Current:
3A
Max. Voltage:
250VAC
Mechanical Life:
1,000,000
Suggested panel cutout:
16mm
Whole size (L):
37.5mm
Surface size:
18mm
Contact:
Silver plated gold
Operation travel:
2.8mm
The Crust Material:
Stainless steel 304 or 3116,Copper plating
Head shape:
Flat
Mode of connection:
DPDT
Operation type:
Momentary,Latching
Lamp type:
Ring or DotIlluminated(LED)
Supply Ability
Supply Ability:
20000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
1: Neutral packing : plastic bag for goods + inner box bubble+ inner box+carton
2: Upon customers' request ,but the price is different with neutral packing
3: Carton spec:29*23*31
4: 40pcs/box,10box/carton
Port
NingBo /ShangHai/Hongkong
Lead Time:
5-7 days (small order), 10-15days (big order)

Specifications

1) 12v LED switch
2) 16mm,1NO1NC or 2NO2NC
3) Stainless steel housing
4) Variety of LED colours
5) Gold plated contact

12v LED switch



Size 16mm Ring 12v LED Switch / Momentary Lighted Pushbutton ( 1NO1NC or 2NO2NC)

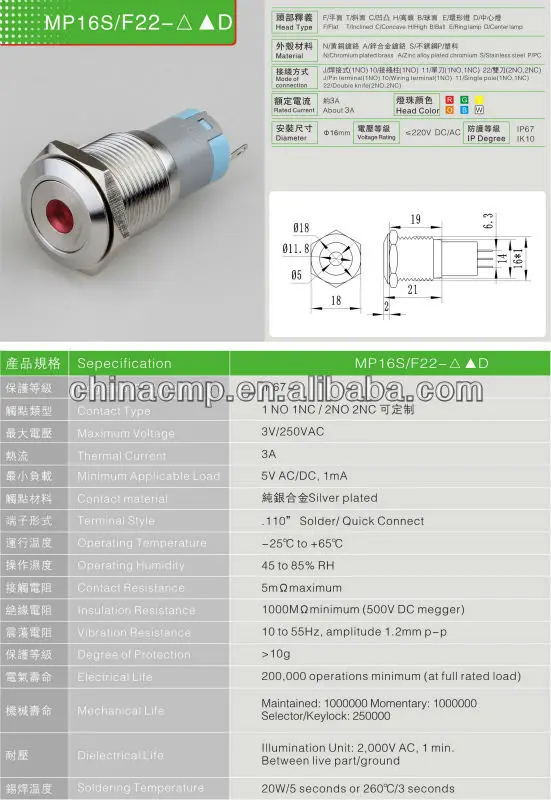

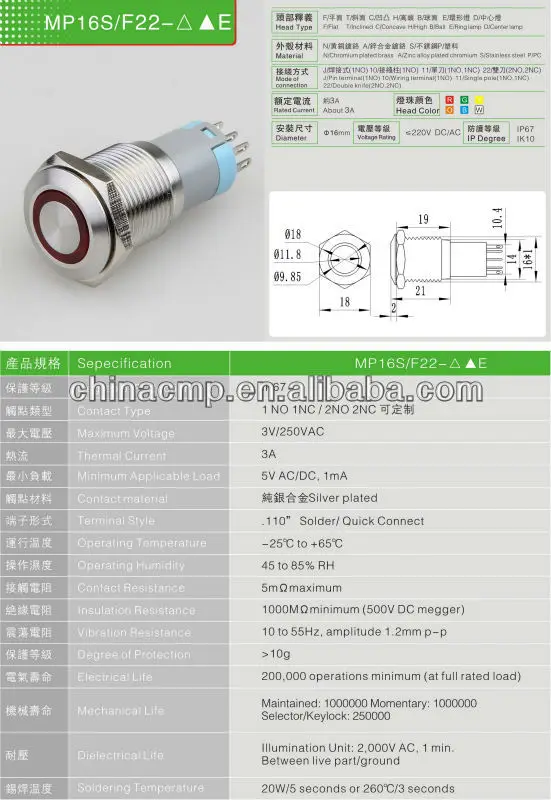

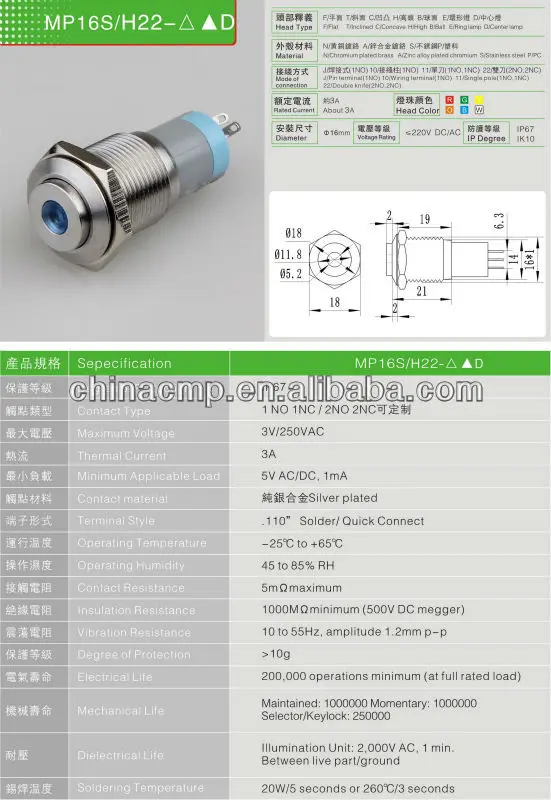

(1) Parameters









(2) Connection Type

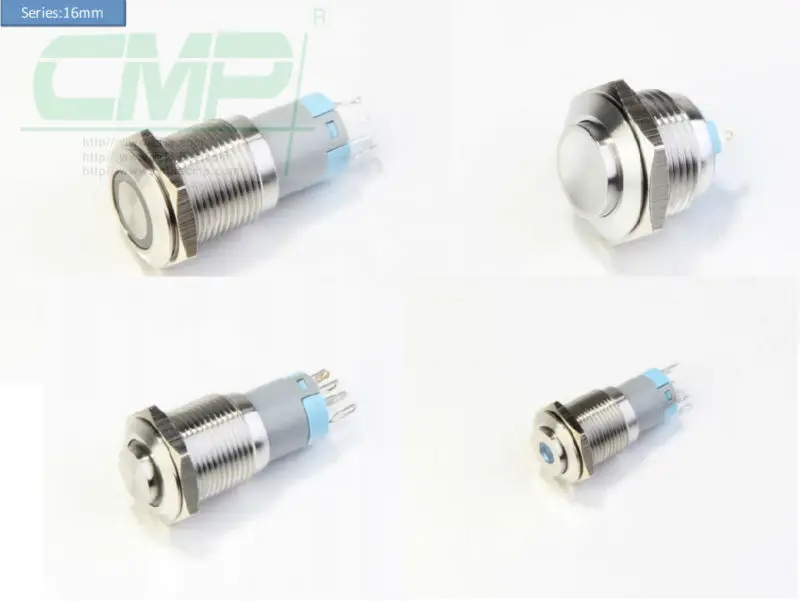

(3) Recommended Switches











 (4) Packaging



1: Neutral packing : plastcic bag for goods +inner box bubble+ inner box+carton

2: Upon customers" request ,but the price is different with neutral packig

3: Carton spec: 29*23*31

4: 40 pcs/box,10boxes/carton









(5) Feedback



We WARMLY appreciate your positive feedback and our system will leave positive feedback for you after complete transaction.



We value our customers so that if you have a problem ,PLEASE FEEL FREE and DON"T HESITATE TO CONTACT US BY EMAIL IMMEDIATEDLY, we are always there to offer help
