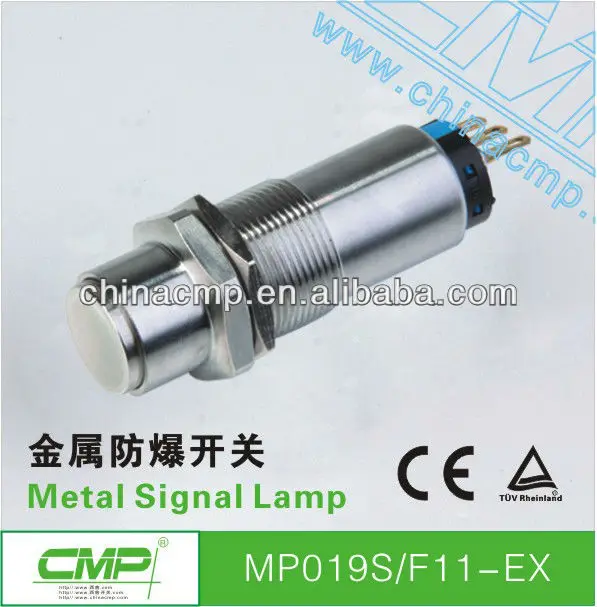

Explosion-proof Push Button Switch ( dia:19mm)

Click on the image to view the original image

Product：	views：2Explosion-proof Push Button Switch ( dia:19mm)
Branch：	CMP
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 23:25

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: CMP

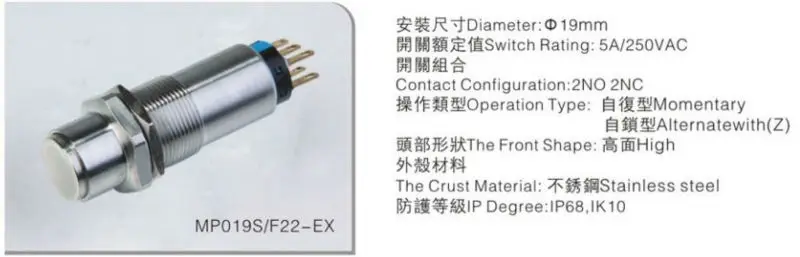

Model Number:: MP019S/F22-EX

Protection Level:: IP68,IK10

Max. Current:: 5A

Max. Voltage:: 250V AC

Suggested panel cutout:: 19mm

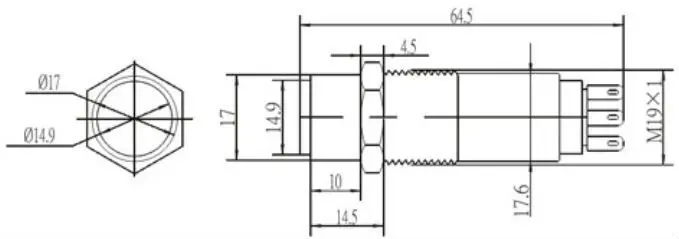

Whole size (L):: 64.5mm

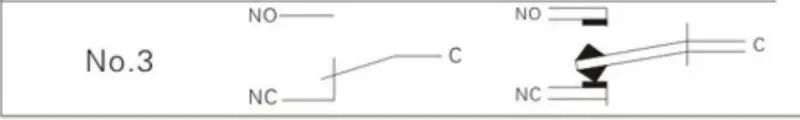

Contact Configuration:: 2 NO 2 NC

Operation type:: Momentary

Front shape:: High actuator

Mode of connection:: DPDT

Contact:: Silver plated gold

The Crust Material:: Stainless steel

Pin terminal:: 2.8mm*0.5mm

International express:: DHL,UPS,FEDEX,EMS,TNT

Supply Ability

Supply Ability:: 20000 Piece/Pieces per Day No limit for explosion-proof push button switch

Packaging & Delivery

Packaging Details: 1: Neutral packing : plastic bag for goods + inner box bubble+ inner box+carton
2: Upon customers' request ,but the price is different with neutral packing
3: Carton spec:29*23*31
4: 20pcs/box,10box/carton

Port: NingBo /Shanghai/HongKong

Lead Time:: 5-7 days (small order), 10-15days (big order)

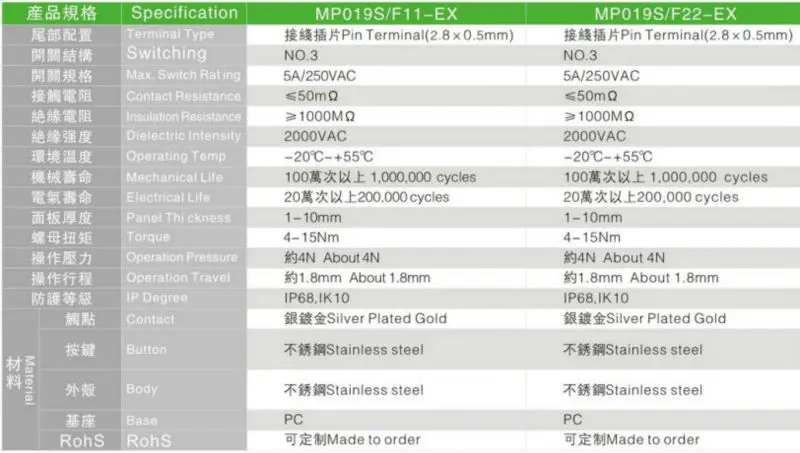

Specifications

1) explosion-proof push button switch
2) anti-vandal,waterproof,SPDT,19mm
3) long life ,stainless steel
4) TUV,CE,BV

explosion-proof push button switch

Explosion-proof Push Button Switch ( dia:19mm)

Product Description

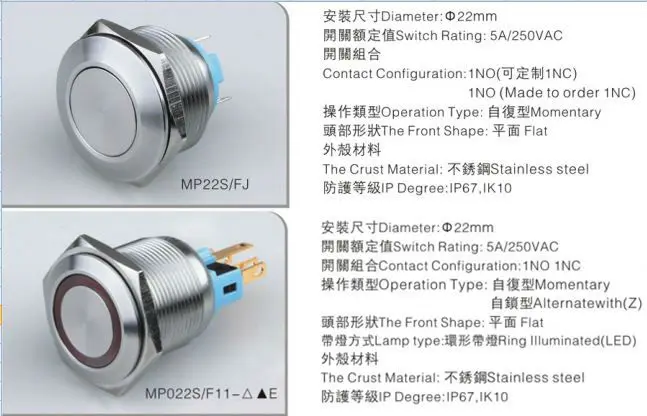

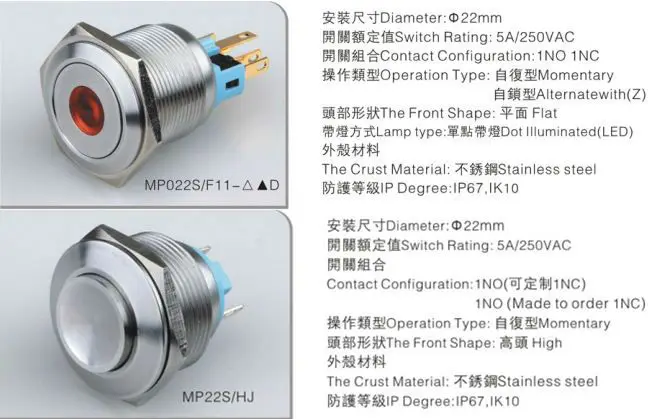

Recommended Switches

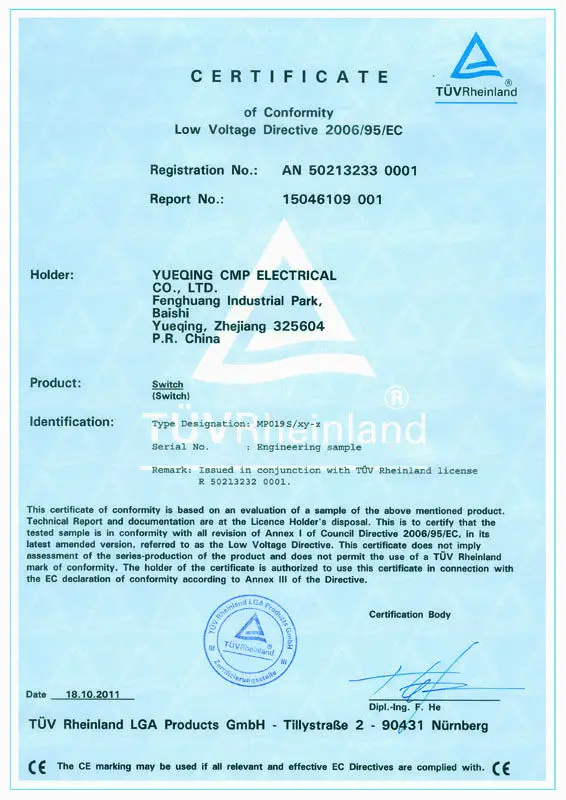

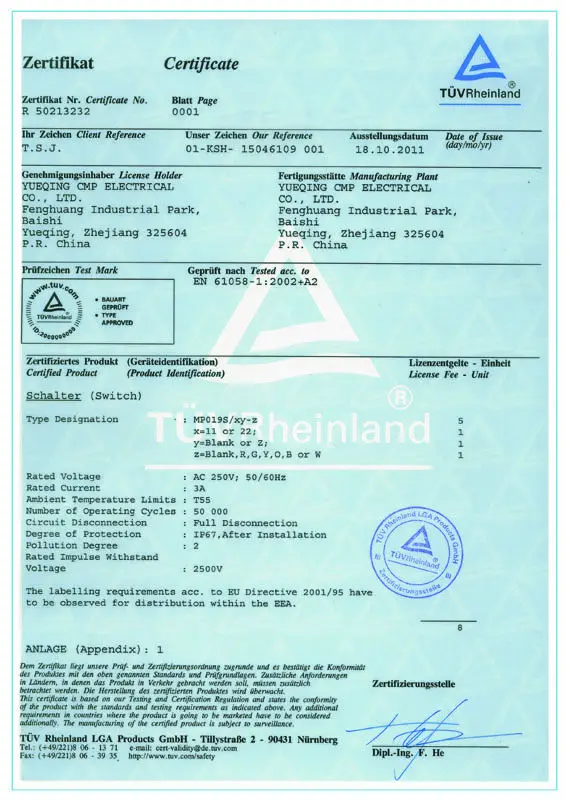

Certifications

Continuous improvement principle and pursuing excellence quatity principle

Packaging & Shipping

1: Neutral packing : plastcic bag for goods +inner box bubble+ inner box+carton

2: Upon customers" request ,but the price is different with neutral packig

3: Carton spec: 29*23*31

4: 40 pcs/box,10boxes/carton

Our Services

We WARMLY appreciate your positive feedback and our system will leave positive feedback for you after complete transaction.

We value our customers so that if you have a problem ,PLEASE FEEL FREE and DON"T HESITATE TO CONTACT US BY EMAIL IMMEDIATEDLY, we are always there to offer help

explosion-proof push button switch ,Ex switch , ex-proof switch
