Home > Products > 30mm Big Wall Indicator LED Push Button Switch

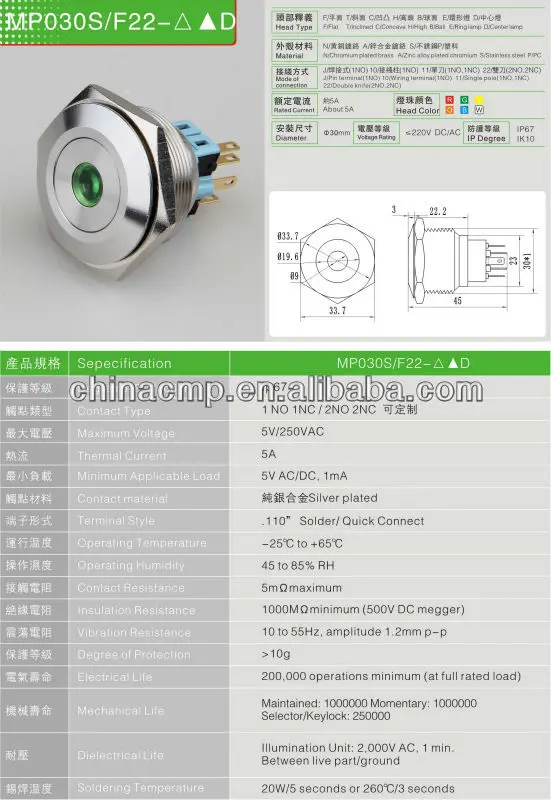

30mm Big Wall Indicator LED Push Button Switch
Click on the image to view the original image
Product： views：230mm Big Wall Indicator LED Push Button Switch
Branch： CMP
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 23:25
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
CMP
Model Number:
MP03OS/F22Z-D--G
Size:
30mm
Max. Current:
5A
Max. Voltage:
250VAC
Mechanical Life:
1,000,000 cycles
The Crust Material:
Stainless steel
Head shape:
Flat actuator
Operation type:
Latching ,momentary
Made of connection:
DPDT
Lamp type:
Dot illuminated
Contact:
Silver plated gold
Contact configuration:
1 NO 1 NC/2NO 2NC
Illuminated Voltage:
6v,12v,24v,110v,220v
LED colour:
Red,Green,Yellow,White,Blue
Operation travel:
2.8mm
Supply Ability
Supply Ability:
20000 Piece/Pieces per Day No limit for indicator LED push button switch
Packaging & Delivery
Packaging Details
1: Neutral packing : plastic bag for goods + inner box bubble+ inner box+carton
2: Upon customers' request ,but the price is different with neutral packing
3: Carton spec:29*23*31
4: 10pcs/box,10box/carton
Port
NingBo /ShangHai/HongKong
Lead Time:
5-7 days (small order), 10-15days (big order)

Specifications

1) indicator LED push button switch
2) 30mm,DPDT,latching
3) dot or ring illuminated,waterproof IP67
4) CE,TUV,BV

indicator LED push button switch

30mm Big Wall Indicator LED Push Button Switch


Product Description






Packaging & Shipping



1: Neutral packing : plastcic bag for goods +inner box bubble+ inner box+carton

2: Upon customers" request ,but the price is different with neutral packig

3: Carton spec: 29*23*31

4: 10 pcs/box,10boxes/carton






Our Services



We WARMLY appreciate your positive feedback and our system will leave positive feedback for you after complete transaction.



We value our customers so that if you have a problem ,PLEASE FEEL FREE and DON"T HESITATE TO CONTACT US BY EMAIL IMMEDIATEDLY, we are always there to offer help





indicator LED push button switch  , LED push button switch , indicator LED switch , LED push button switch , current switch , light switch , big LED switch
