Vandal proof momentary or latching led waterproof switch illuminated
16mm series Max. rating:3A/250V AC/DC
19mm, 22mm ,25mm ,28mm ,30mm series, Max.rating: 5A/250V AC/DC

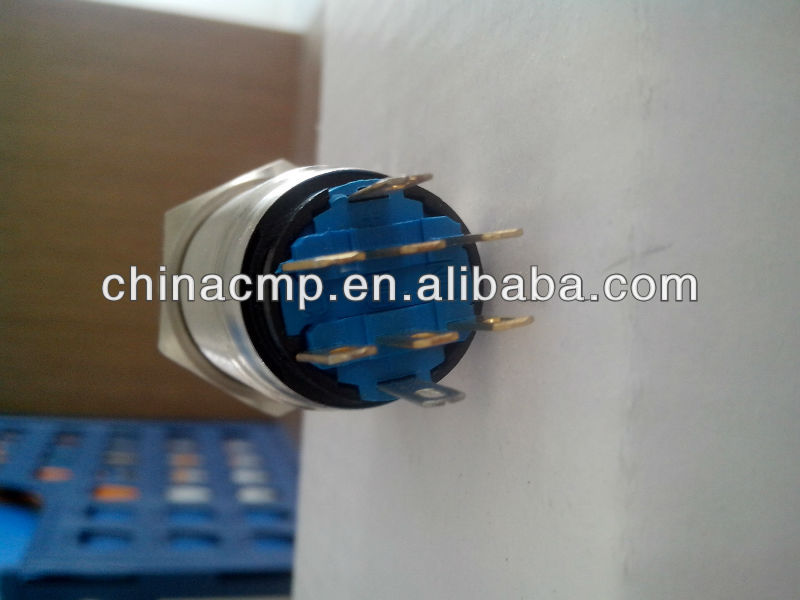

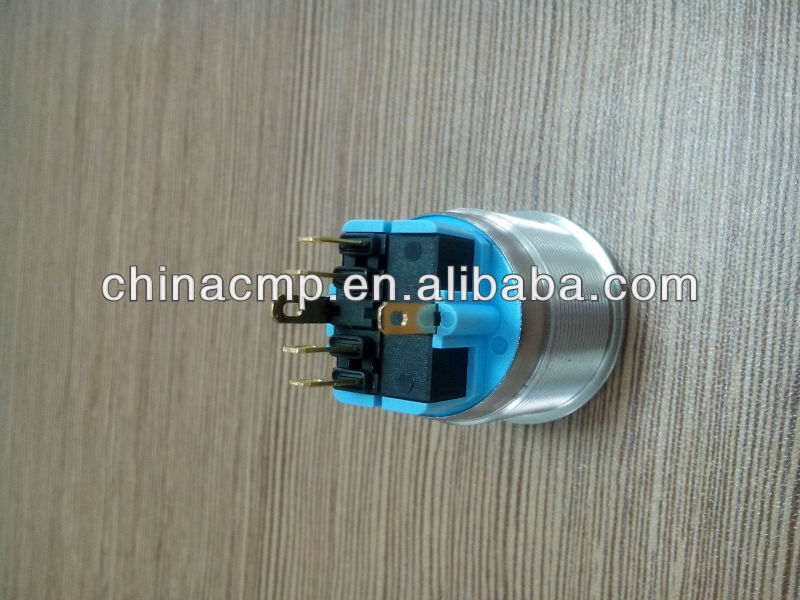

We have 4pin 5pin , 6pin , 8pin and 10pin LED button switch.
Installation diameter :16mm,19mm ,22mm, 25mm, 28mm, 30mm (ring or dot LED)
16mm series:1on 1off--5pin
1NO---4pin
19mm series: 1on 1off--5pin
2on 2off--8pin
22mm sereis: 1on 1off --6pin
25mm,28mm,30mm series: 1on 1off --6pin
2on 2off --10pin
Such as:
waterproof switch illuminated
Common description for metal push button switch | |
Momentary | When you push switch and then move your finger, the actuator will back to the original position. |
Latching | When you press the button, it keeps pressed until you press again |
N.O. | Normally Open |
N.C. | Normally Closed |
SPST | Single Pole Single Throw |
DPDT | Double Pole Double Throw |
Contact | The contact is a conducting part designed to be united by pressure to another conducting part for the purpose of carrying current. |
Silver plated gold | Wonderful material with silver plated gold |
waterproof switch illuminated
Supply all products with factory price. If you order our products for the first time, we would like to recommend that you take some samples for testing, so that you will be secure and will find how the quality of our goods is.
1. Installation diameter : There are 12mm series(plastic or metal), and 16mm 19mm 22mm 25mm 28mm 30mm series metal(stainless steel or copper plated chromium ) push button switch. waterproof switch illuminated
2. LED/Light series and colors: ring option and dot option. There are red, green, yellow, orange, blue, white. If need others colors, please contact me.
3. The current and voltage: Please let me know the voltage of LED if you order switch with LED light. waterproof switch illuminated
4. Samples and smaller order as follows:
(1).when you order some samples and smaller order, please contact me by email or Skype for confirming items details. waterproof switch illuminated
(2).payment: samples and smaller order payment by paypal or T/T or Western Union. waterproof switch illuminated
(3).Shipping: DHL, EMS, TNT, Fedex, UPS and others international express. Estimated shipping time: 3-7 days.
5. Customer Service:
We strive to provide excellent customer service. All emails will be answered within 24 hours.
If you have any questions, please feel free to contact me.
