Home > Products > CMP waterproof momentary/latching small 12mm push button switch (TUV CE)
CMP waterproof momentary/latching small 12mm push button switch (TUV CE)
Click on the image to view the original image
Product： views：2CMP waterproof momentary/latching small 12mm push button switch (TUV CE)
Branch： CMP
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 23:25
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
CMP
Model Number:
MP12 12mm push button switch
Protection Level:
IP65 IK08
Max. Current:
2A
Max. Voltage:
36V(AC/DC)
Installation diameter:
12mm push button switch
The material of the head:
Stainless steel or plastic or chromium plated brass
The materila of the shell:
Stainless steel or plastic or chromium plated brass
Contact Material:
Silver alloy
Colour of the head/shell:
Red,Black,White,Green,Blue,Orange,Yellow
Terminal type:
2 pin terminals or 2wiring terminals
Contact configuration:
1NO
Operation type:
momentary or latching
Led type:
with LED light or without
Product name:
12mm push button switch
Supply Ability
Supply Ability:
10000 Piece/Pieces per Week for 12mm push button switch
Packaging & Delivery
Packaging Details
12mm push button switch packaging:
inner bubble box, inner box(50pcs), carton(10boxes,500pcs)carton dimensions:29cm,23cm,31cm,or by your request.
500PCS/CTN
Port
Ningbo/Shanghai









12mm push button switch



Product Description



CMP 12mm metal waterproof momentarylatching small push button switch

   12mm push button switch



1.Thread Diameter:12mm

2.Operation type:Momentary or Latching

3.Housing material:Stainless steel or chromium plated brass,brass,aluminum

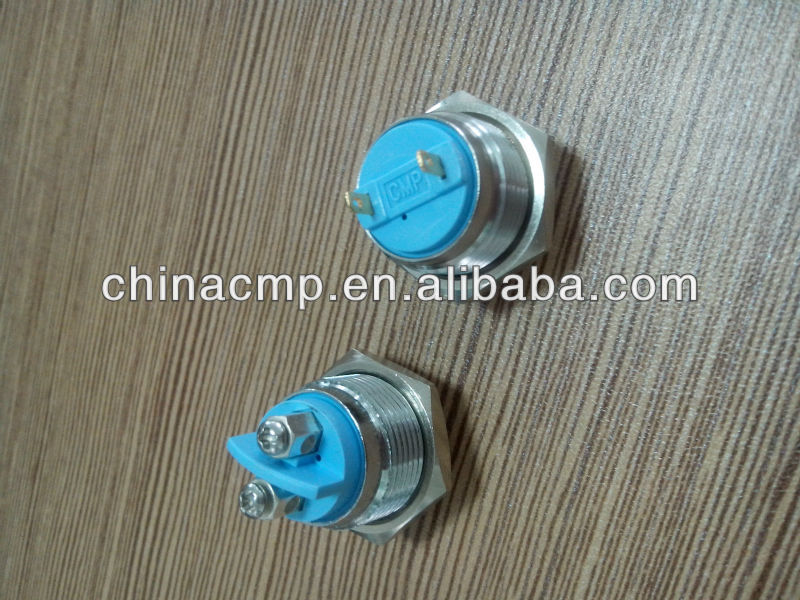

4.Terminal type:Pin terminal,screw terminal

5.Head type:High head,Flat head, domed head with LED or not

6,LED color:red,green,white,blue,yellow,orange,bi-color,tri-color,voltage(made to order)

7.Contact configuration:1NO

8,IP67IK10, high quality

9,have TUV,CE,ROSH, SGS



12mm push button switch



   Common description for metal push button switch

   Momentary

When you push switch and then move your finger, the actuator will back to the original position.

   Latching

When you press the button, it keeps pressed until you press again

      N.O.

Normally Open

      N.C.

Normally Closed

     SPST

Single Pole Single Throw

     DPDT

Double Pole Double Throw

   Contact

The contact is a conducting part designed to be united by pressure to another conducting part for the purpose of carrying current.

 Silver plated gold

Wonderful material with silver plated gold











Related Products



12mm push button switch



Packaging & Shipping



  12mm push button switch

12mm push button switch



FAQ

  12mm push button switch



1. Installation diameter : There are 12mm series(plastic or metal), and 16mm 19mm 22mm 25mm 28mm 30mm series(metal: stainless steel or  chromium plated brass ) button switch.

2. Samples and smaller order as follows:

(1).when you order some samples and smaller order, please contact me by email or (Skype:cmpswitch66) for confirming items details for 12mm push button switch



(2).payment:paypal or T/T or Western Union.



(3).Shipping: DHL, EMS, TNT, Fedex, UPS and others international express. Estimated shipping time: 3-7 days.



3. Customer Service:

We strive to provide excellent customer service. All emails will be answered within 24 hours.

If you have any questions, please feel free to contact me.

Contact us

Email:cmpswitch66 (at) aliyun.com

We strive to provide excellent customer service. Please feel free to contact me for more pictures or details.We will reply within 24 hours.





12mm push button switch
