22MM illuminated panel switch/Metal push button switch
Model : MP022SF/F11-E
Name : 22 mm push button switch
push button switch Crust Material : 304 and 316 Stainless Steel
push button switch Thread Daimeter 19 mm
push button switch Max Rating: 5A/250VAC
push button switch Contact Resistance: less 50Mohm
push button switch Insulation Resistance: More 1000Mohm
push button switch Dielectric Intensity : 2000VAC
push button switch Operating Temp: -20 degrees Cesius---+55 degree Cesius
push button switch Mechanical Life: 1,000,000 cycles
push button switch Electrical Life: 200,000 cycles
push button switch Panel Thickness: 1---10mm
push button switch Torque: 4--15Nm
push button switch Operation Travel : about 1.8mm
push button switch IP Degree: IP67
push button switch Contact: Silver Plated Gold
push button switch crust material : Stainless Steel , Copper plating
push button switch Base :PC
push button switch RohS: Made to order
push button switch Lamp Type : dot light , ring light, smybole light...
push button switch light Colors:Red ,Green,Yellow,Orange,Brown,White...
push button switch Swith led light Voltage: 3V,6V,12V,24V,36V,48V,110V,220V AC/DC
push button switch Lamp Type: Led lamp(AC/DC)
push button switch Lamp Rated Current: about 15mA,about 2mA
push button switch Lamp Life: about 40,000 hours (Reference)
push button switch DC Led and other voltage can be made to order.

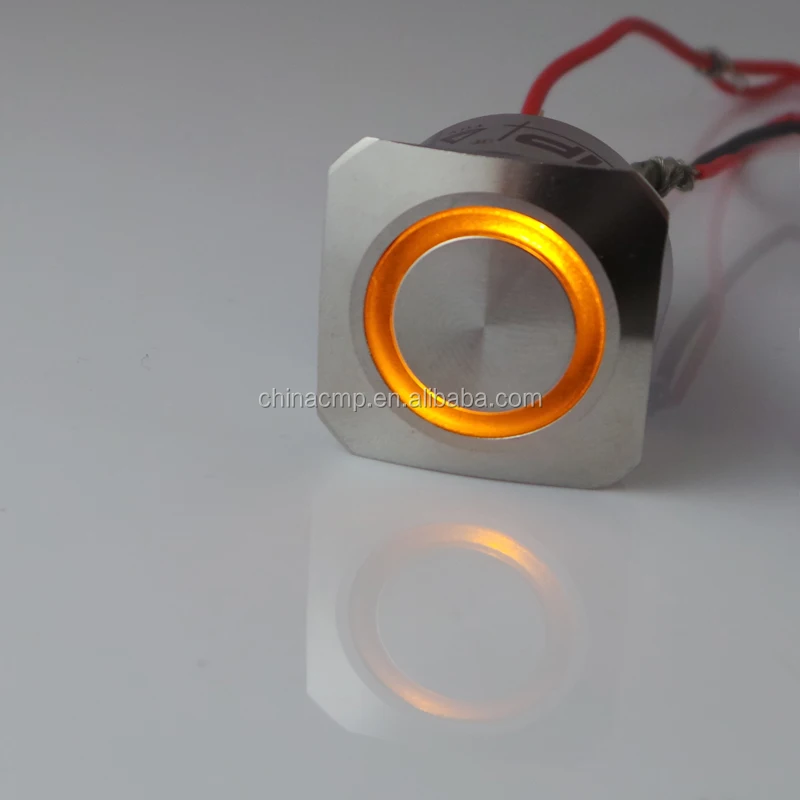

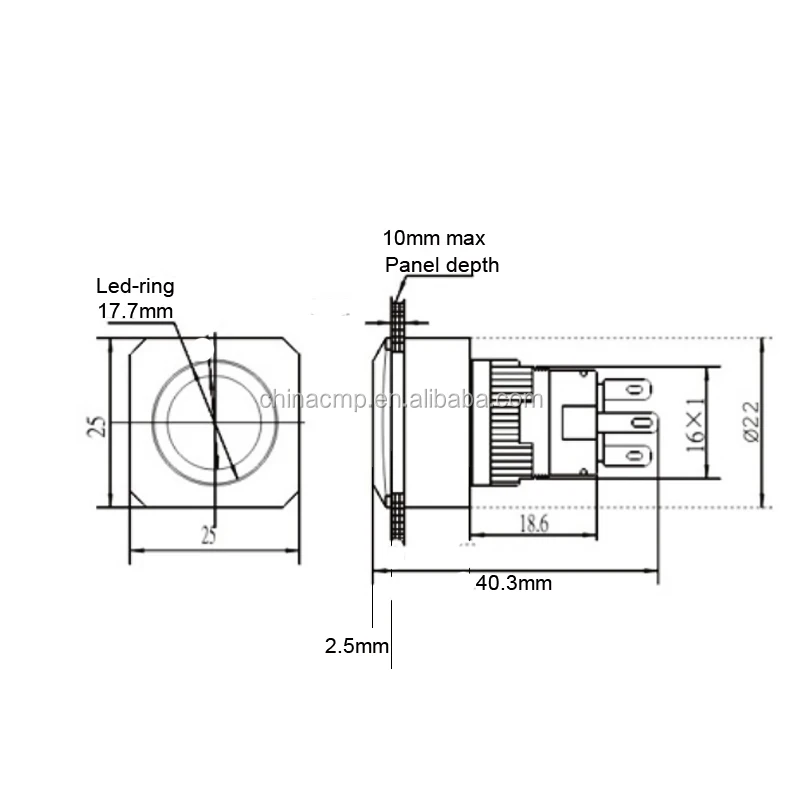

push button switch MP022SF/F11-E details pictures:
MP022SF/F11-E push button switch working condition picture:
push button switch MP022S/F11-D package as follows:
push button switch Quality:
Our products have achieved TUV, CE and passed SGS test. We also offer OEM and ODM service.
Our push button switch EXPO:
Our push button switch factory:
Our push button switch have achieved TUV, CE and passed SGS test. We also offer OEM and ODM service.
All order push button switch support online order by my aliexpress store, and payment by Escrow.
|
Supply all push button switch with factory price. If you are first order our push button switch , please order some samples for trail. Follows are order process: 1. push button switch Thread diameter :We have 8mm, 12m, 16mm, 19mm, 22mm,25mm,28mm, 30mm and 40mm push button switch. 2. push button switch LED/Light kinds and colors:ring light and dot light. We have red,green, yellow, orange, blue, white .If need others colors, please contact me. 3. push button switch kinds: momentary switch and latching switch 4. push button switch IP degree:IP65, IP 67, IP68... 5. push button switch Current and voltage:If you order switch with light, please let me know switch working Current or voltage. 6. More others push button switch , please contact me by my email (name: roycmp, at 163 dot com) or skype (roy.wu1) 7. push button switch samples and smaller order as follows: (1).when you order some samples and smaller order, please contact m by email or skype for confirming items details. (2). push button switch payment: samples and smaller order pay by pa ypal or T/T. Less 2pcs samples order, samples are free, but must pay for shipping freight. (3). push button switch Delivery Time: All orders ship within 3 days of payment clearing(order quantity less 1000 pcs.When order quantity more 1000pcs less 5000pcs, ship within 3-7 days.5000pcs ---10000pcs/order, ship within 7—10 days), Monday - Friday with exception to National Holidays. (4). push button switch Shipping: DHL, EMS, TNT, Fedex, UPS and others international express. Estimated shipping time: 4-9 days. Why customer charge for samples shipping cost??? 1. If you pay for push button switch samples, when you test samples, if you have any questions, you will contact me. If all are free, you may be won"t serious support samples testing and feedback. 2. If push button switch user order only a few products, they won"t pay higher cost order by international express cost. I hope our customer order many pieces and some one are wholesaler. 3. If you order push button switch 1000pcs in the future, we can return samples cost and samples shipping cost. (3). push button switch Shipping policies: Multiple Item Shipping Discount Shipping is full price for the most expensive shipping item and 50% off the shipping price for each additional item purchased. To receive your combined shipping discount, it is very important that you do not pay for each item individually. Instead, purchase each item that you would like from us and then pay once. Your shipping will be automatically combined for you at that time. (4). push button switch Customer Service We strive to provide excellent customer service All emails will be answered within 24 hours
