Home > Products > 19mm Diameter Black Anodized LED Light Push Button Switch

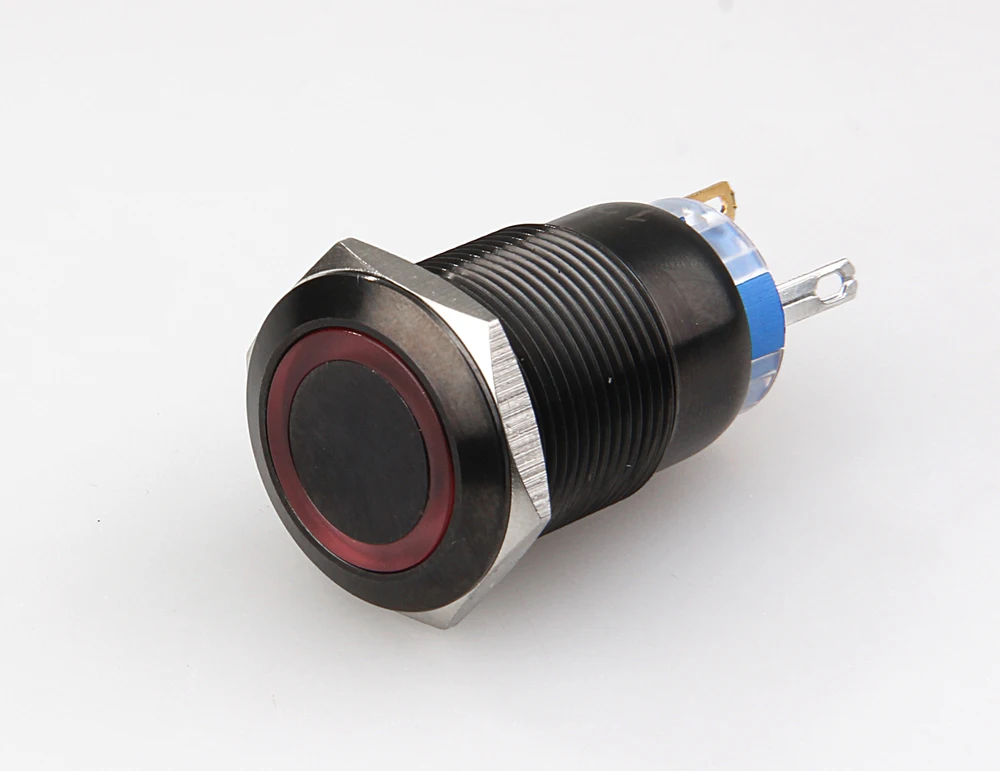

19mm Diameter Black Anodized LED Light Push Button Switch
Click on the image to view the original image
Product： views：219mm Diameter Black Anodized LED Light Push Button Switch
Branch： CMP
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 23:25
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
CMP
Model Number:
MPO19N/F11Z--E
Protection Level:
IP67,IK10
Max. Current:
5A
Max. Voltage:
250V
Suggested panel cutout:
19mm ( black push button switch )
Operation type:
Momentary ,latching
Contact configuration:
1 NO 1NC( 2NO 2NC)
Multiple actuator styles:
Flush,Dome,High actuator
The crust material:
Stainless steel,copper plating,
Terminal type:
SPDT,DPDT
Depth:
40.5mm
Contact:
Silver gold plated
LED Color:
Red, Green,Yellow,Blue,White
Lamp type:
Dot illuminated ,Ring illuminated
Supply Ability
Supply Ability:
20000 Piece/Pieces per Day No limit for black push button switch
Packaging & Delivery
Packaging Details
1: Neutral packing : plastic bag for goods + inner box bubble+ inner box+carton
2: Upon customers' request ,but the price is different with neutral packing
3: Carton spec:29*23*31
4: 20pcs/box,10box/carton
Port
Ningbo/Hongkong/Shanghai
Lead Time:
5-7days ( samll order) ,10-15days ( big order)

black push button switch

19mm Diameter Black Anodized LED Light Push Button Switch





Product Description







pushbutton switch , illuminated push button switch, pushbutton switch,switch,illuminated switch,anti-vandal switch



Recommended Switches











Packaging & Shipping





1: Neutral packing : plastcic bag for goods +inner box bubble+ inner box+carton

2: Upon customers" request ,but the price is different with neutral packig

3: Carton spec: 29*23*31

4: 40 pcs/box,10boxes/carton



  pushbutton switch





Our Services



We WARMLY appreciate your positive feedback and our system will leave positive feedback for you after complete transaction.

We value our customers so that if you have a problem ,PLEASE FEEL FREE and DON"T HESITATE TO CONTACT US BY EMAIL IMMEDIATEDLY, we are always there to offer help



Pictures



The 19mm series pushbutton switch is water resistant to IP67 ratings. Featuring a colored bezel and multiple actuator options, the 19mm series anti-vandal switches have a long life expectancy. This switch features a panel cutout size of 19mm. The 19mm series anti-vandal switch is popular for use in elevators and kiosk applications, ticket dispensers and industrial-type applications.

anodized push button switch ,  metal anodized push button switch , waterproof anodized switch  , anti-vandal push button switch  ,  metal switch ,  metal anodized switch  , push button switch ,  black anodized switch
