Home > Products > manufacturer export CMP 19mm thread diameter metal black color momentary pushbutton switch
manufacturer export CMP 19mm thread diameter metal black color momentary pushbutton switch
Click on the image to view the original image
Product： views：2manufacturer export CMP 19mm thread diameter metal black color momentary pushbutton switch
Branch： CMP
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 23:26
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
CMP
Model Number:
MP19N/F11-E black
Protection Level:
IP67
Max. Current:
5A
Max. Voltage:
250VAC
MOQ:
100pcs
support online order:
order by my aliexpress store
thread diameter:
19mm pushbutton switch
operation type:
momentary switch
the crust material:
stainless steel/copper plating
Delivery Time:
All orders (less 1000pcs) ship within 3 days of payment clearing
big order delivery time:
7days(order more 1000pcs less 10,000pcs)
payment:
T/T,Pa ypal(online order by Escrow)
shipping:
DHL,EMS,TNT,Fedex with discount freight price
more information:
contact me by email and skype
Supply Ability
Supply Ability:
10000 Set/Sets per Day pushbutton switch
Packaging & Delivery
Packaging Details
pushbutton switch
40pcs in one plastic boxand 10 pcs plastic box in a carton.If you need package pictures and change package by your request, please feel free to contact me .Email roycmp at 163 dot COM, skype is roy dot wu1
Port
Ningbo

manufacturer export CMP 19mm thread diameter metal momentary pushbutton switch

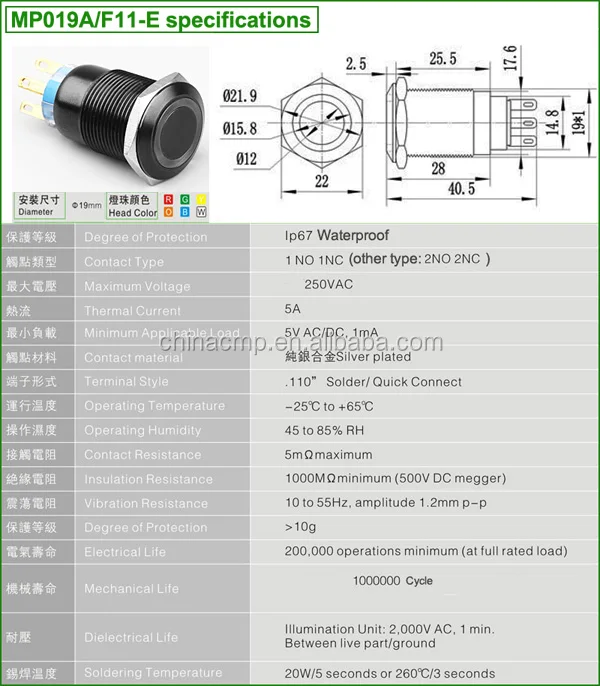

19 mm  pushbutton switch  Details :

 Model : MP019S/F11-E with black crust

 Name : 19 mm   pushbutton switch

Switch Crust Material : 304 and 316 Stainless Steel

Switch Thread Daimeter 19 mm

Switch Max Rating: 5A/250VAC

Contact Resistance: less 50Mohm

Insulation Resistance: More 1000Mohm

Dielectric Intensity : 2000VAC

Operating Temp: -20 degrees Cesius---+55 degree Cesius

Mechanical Life: 1,000,000 cycles

Electrical Life: 200,000 cycles

Panel Thickness: 1---10mm

Torque: 4--15Nm

Operation Travel : about 1.8mm

IP Degree: IP67

Contact: Silver Plated Gold

Button : Stainless Steel , Copper plating

Base :PC

RohS: Made to order

 Lamp Type : dot light , ring light, smybole light...

Switch light Colors:Red ,Green,Yellow,Orange,Brown,White...

Swith led light Voltage: 3V,6V,12V,24V,36V,48V,110V,220V AC/DC

Switch Lamp Type: Led lamp(AC/DC)

Switch Lamp Rated Current: about 15mA,about 2mA

Lamp Life: about 40,000 hours (Reference)

DC Led and other voltage can be made to order.

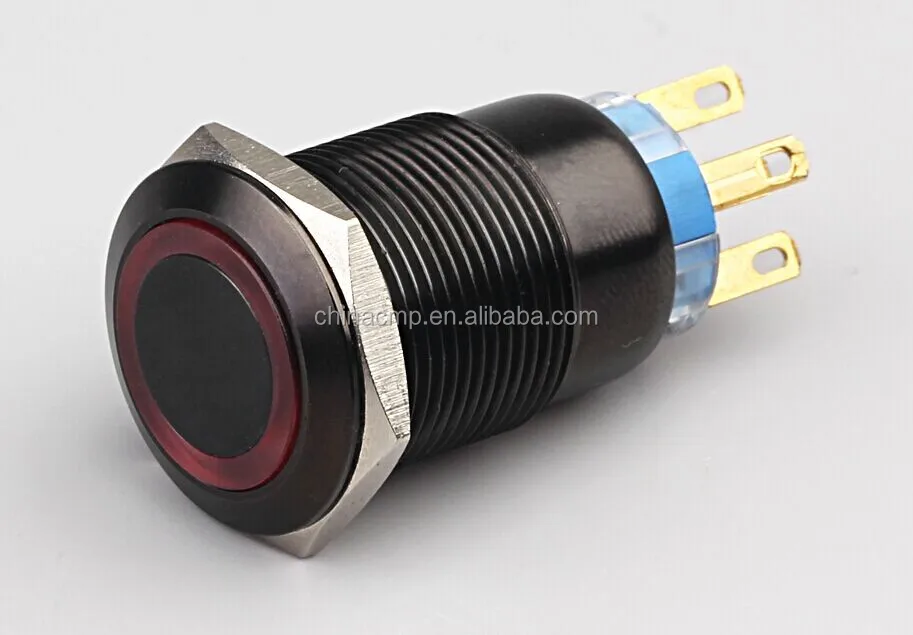

pushbutton switch pictures:



pushbutton switch package pictures:

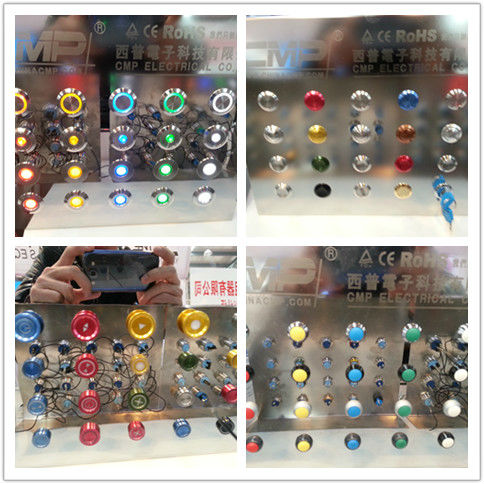

Our pushbutton switch Fair and Facory Pictures:

pushbuton switch CE and TUV Certifications:
