Home > Products > 16mm stainless steel led light illuminated pushbutton switch

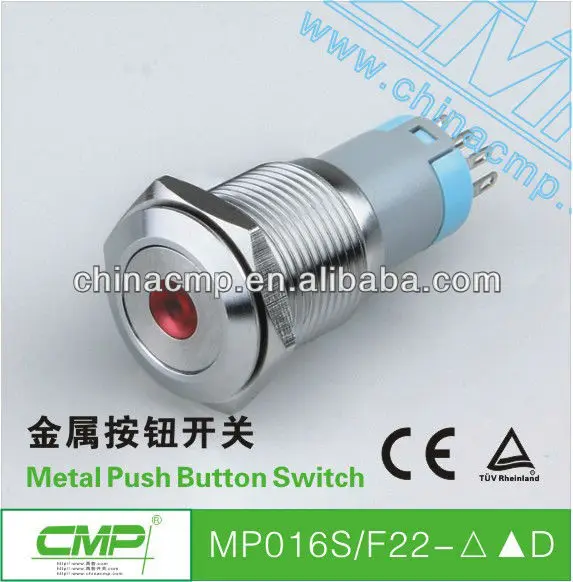

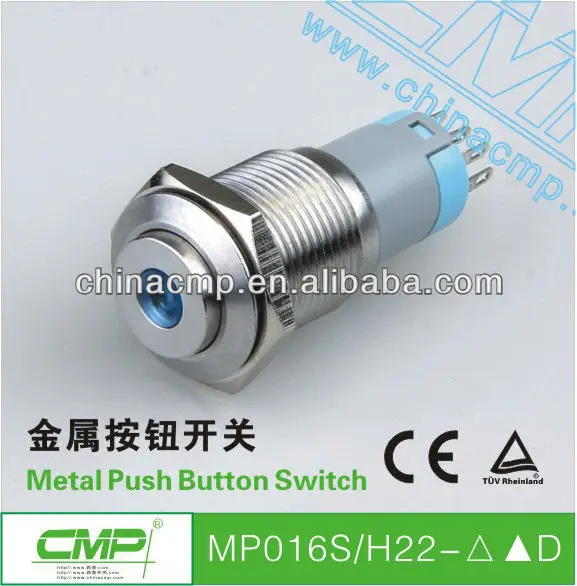

16mm stainless steel led light illuminated pushbutton switch
Click on the image to view the original image
Product： views：216mm stainless steel led light illuminated pushbutton switch
Branch： CMP
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 23:26
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
CMP
Max. Current:
3A
Max. Voltage:
250VAC/DC
Installation diameter:
16mm
The Crust Material:
Stainless steel or Copper plated chromium
The color of the LED:
Red, White, Green, Blue ,Orange ,Yellow
The voltage of the LED:
3v 6v 12v 24v 36v 48v 110v 220v
Colour of the LED:
Red, White, Green, Blue ,Orange ,Yellow
Contact material:
Silver plated gold
Mechanical Life:
Maintained:100,0000Momentary:100,0000 Selector/Keylock:250000
IP degree:
IP67, IK10
Operation type:
Momentary / Latching
Contact configuration:
1on 1off(SPST) or 2on 2off(DPDT)
Supply Ability
Supply Ability:
50000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
inner bubble box(40pcs), inner box, carton(10boxes,400pcs)
Carton dimensions:29cm,23cm,31cm,or by your request.
Port
Ningbo/Shanghai
Lead Time:
sample and small order 2-7days,big order 10-15 days.

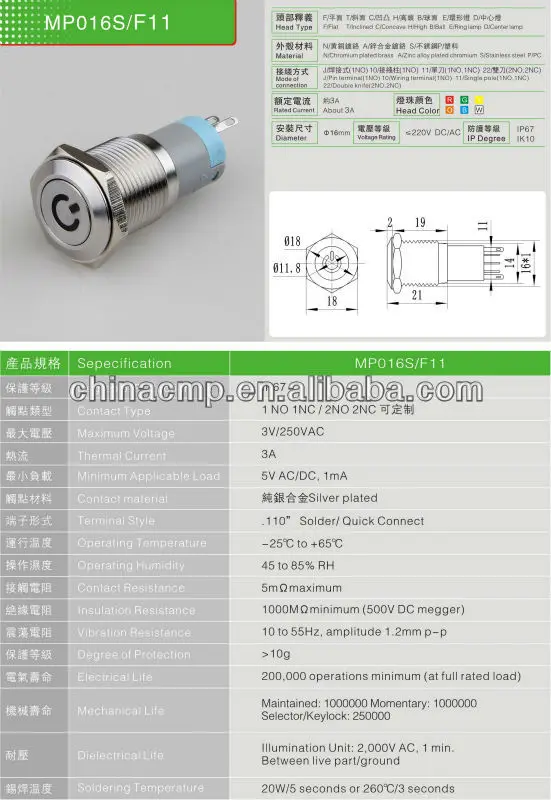

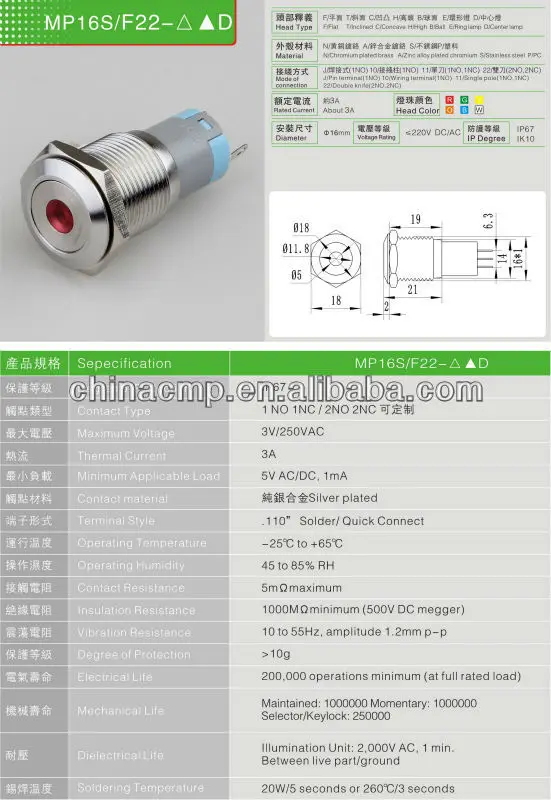

Specifications

Passed TUV,CE,RoHS,FCC and so on.
1on 1off(SPST) or 2on 2off(DPDT)

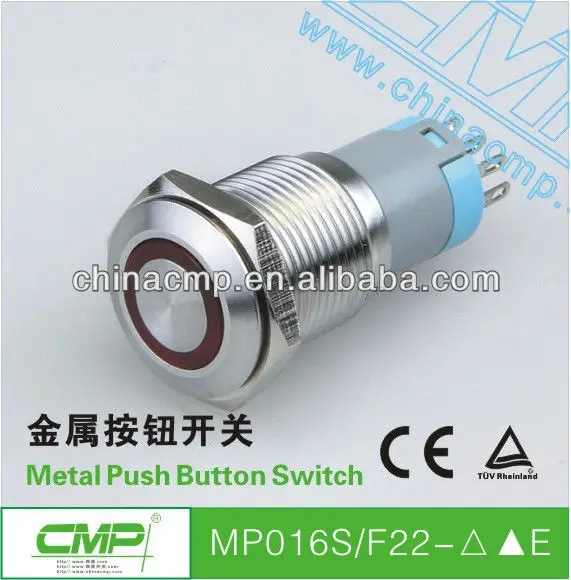

Ring or dot LED light
Momentary / latching
Waterproof.





16mm led illuminated pushbutton switch.

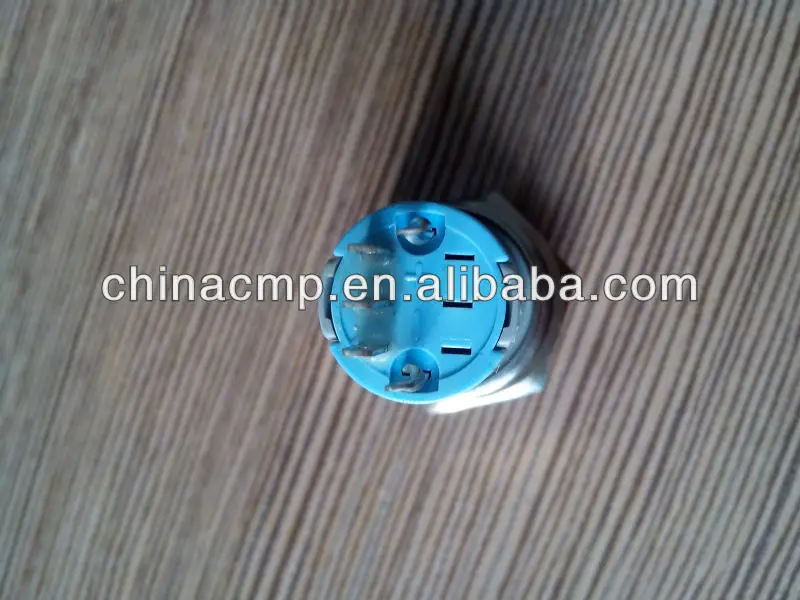

            1on 1off ,the bottom:5pin

            2on 2off ,the bottom:8pin



How to get samples and order for goods ?

1.neutral packing:inner bubble box, inner box, carton,or by your request.

2.modes of transport : according to your requirements.

3.delivery time: Samples and smaller order delivery time 3-7days.Big order 10-15 days.

4.payment: As we know paypal was quickly payment .T/T and western union payment are better, or based on your request. Also you could order our CMP metal waterproof push button switch by online(in our ali express store).

5.feedback: If you have any questions, please feel free to contact me.
