CMP pushbutton switch with waterproof cover, dust cover
Click on the image to view the original image
Product： views：2CMP pushbutton switch with waterproof cover, dust cover
Branch： CMP
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 23:26
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
CMP
Model Number:

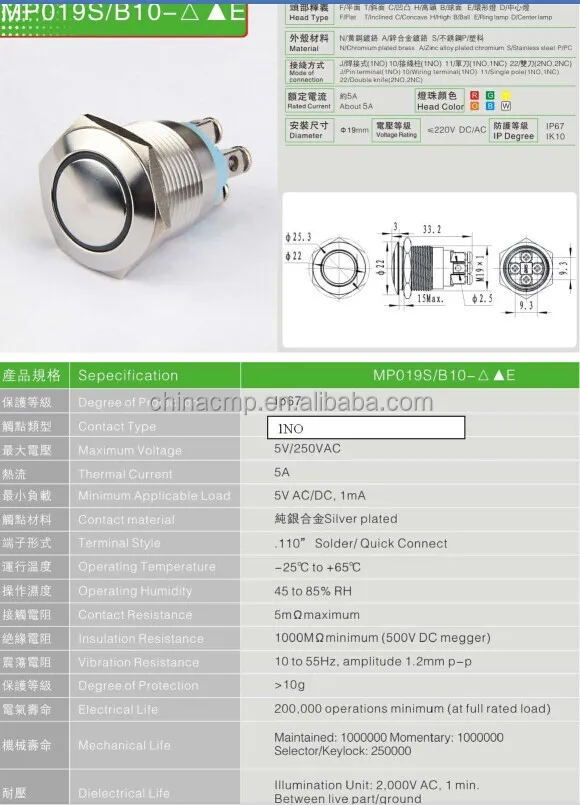

MP19S/B10-E
Protection Level:
IP67,IK10
Max. Current:
5A
Max. Voltage:
250V
Installation diameter:
19mm
The Body Material:
Stainless steel or copper plated chromium
Electrical Life:
200,000cycles
Mechanical Life:
100,0000cycles
Contact Material:
Silver Plated Gold
Operation Type:
Momentary/latching
Bottom:
screws or pin terminal
Operation type:
Momentary
Contact configuration:
1NO/1NO1NC/2NO2NC
Product name:
pushbutton switch with waterproof cover
Supply Ability
Supply Ability:
100000 Piece/Pieces per Week pushbutton switch with waterproof cover
Packaging & Delivery
Packaging Details
inner bubble box(40pcs), inner box, carton(10boxes,400pcs)
Carton dimensions:29cm,23cm,31cm,or by your request.
Port
Ningbo/Shanghai
Lead Time:
sample and small order 1-3 days,big order around 4-10 days.

  pushbutton switch with waterproof cover





Product Description



   CMP 19mm Stainless steel waterproof momentary mechanical pushbutton ip67,anti-vandal pushbutton switch(AC/DC)

  pushbutton switch with waterproof cover with LED or not



The Head: Flat,Ball,Convex.





  pushbutton switch with waterproof cover



FAQ





  pushbutton switch with waterproof cover

Supply all products with factory price. If you order our products for the first time, we would like to recommend that you take some samples for testing, so that you will be secure and will find how the quality of our goods is.



Installation diameter : There are 12mm series(plastic or metal), and 16mm 19mm 22mm 25mm 28mm 30mm 40mm series metal button switch.



(1) Our factory is specialized in the production of button switch made of stainless steel ,chromium plated brass or plastic.

(2) And our products are exported to Europe, the USA, the Middle East, Asia, etc. Our products have passed TUV,CE. We also offer OEM and ODM services.

(3) You can customize the laser marking and colorized switch.

(4)Transport mode: DHL,UPS,EMS,Fedex,China post, by sea and so on.

(5)Payment: Paypal ,T/T, Western Union.

(6). Customer Service:

We strive to provide excellent customer service. All emails will be answered within 24 hours. If you have any questions, please feel free to contact me.Email:cmpswitch66 at 163.com



pushbutton switch with waterproof cover
