Home > Products > Stainless or brass 19mm momentary mechanical push button ip67(TUV,CE)

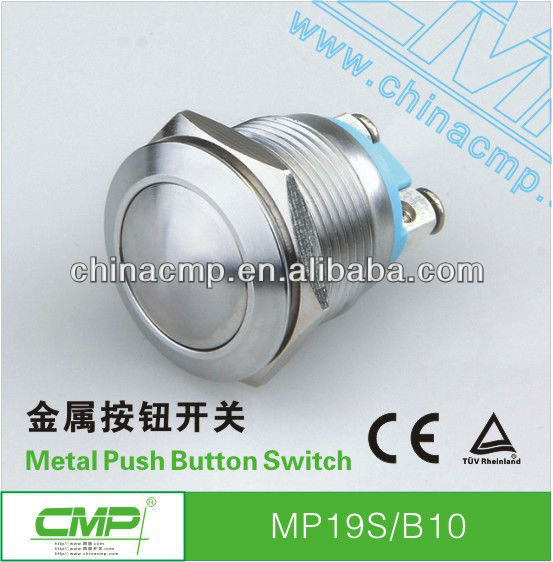

Stainless or brass 19mm momentary mechanical push button ip67(TUV,CE)
Click on the image to view the original image
Product： views：3Stainless or brass 19mm momentary mechanical push button ip67(TUV,CE)
Branch： CMP
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 23:26
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
CMP
Model Number:
MP19S
Protection Level:
IP67,IK10
Max. Current:
5A
Max. Voltage:
250V AC/DC
Installation diameter:
19mm
The Body Material:
Stainless steel or copper plated chromium
Electrical Life:
200,000cycles
Mechanical Life:
100,0000cycles
Contact Material:
Silver Plated
Operation Type:
momentary push button
Bottom:
2 screws or 2pin
Contact configuration:
1NO(normally open)
Service:
offer OEM and ODM service for momentary push button
Supply Ability
Supply Ability:
100000 Piece/Pieces per Week momentary push button
Packaging & Delivery
Packaging Details
momentary push button packaging:
inner bubble box(40pcs), inner box, carton(10boxes,400pcs)
Carton dimensions:29cm,23cm,31cm,or by your request.
Port
Ningbo/Shanghai
Lead Time:
sample and small order 1-5 days,big order around 10 days.

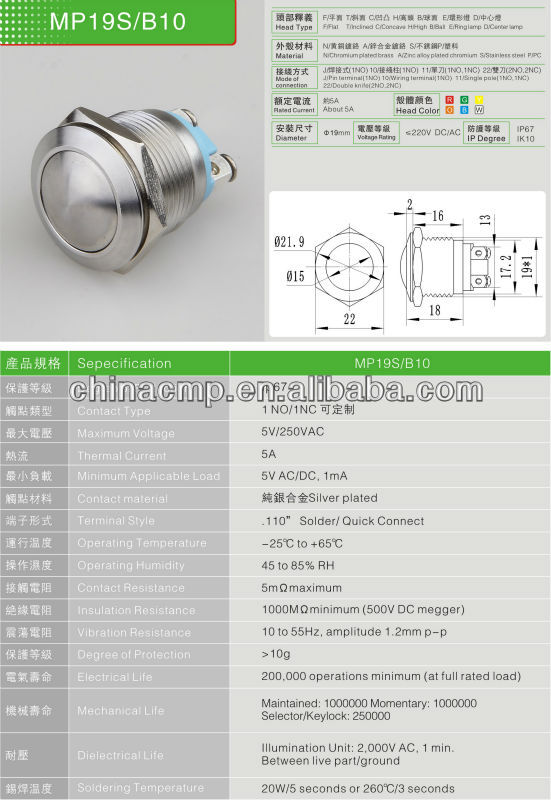

Specifications

Passed TUV,CE,CNSA,SGS,RoHS.
waterproof ,dustproof,vandal resistant
IP67,IK10

(1) Our company is specialized in the production of switch buttons made of stainless steel ,copper plated chromium or plastic.

(2) And our products are exported to Europe, the USA, the Middle East, Asia, etc. Our products have passed TUV,CE. We also offer OEM and ODM services.

(3) You can customize the laser marking and body color.





Product Description



Stainless or brass 19mm momentary mechanical push button ip67(TUV,CE)    momentary push button





The bottom: 2 pin or 2 screw terminals

The Head: Flat,Ball,Convex.



1. Installation diameter : There are 12mm series(plastic or metal), and 16mm 19mm 22mm 25mm 28mm 30mm series(metal: stainless steel or copper plated chromium ) button switch.



2. Samples and smaller order as follows:

(1).when you order some samples and smaller order, please contact me by email or Skype for confirming items details.

(2).payment: samples and smaller order payment by pay pal or T/T or Western Union. Less than 3pcs samples which will be charged free, you need to pay for freight only.

(3).Shipping: DHL, EMS, TNT, Fedex, UPS and others international express. Estimated shipping time: 3-7 days.



3. Customer Service:

     We strive to provide excellent customer service. All e-mails will be answered within 24 hours.

If you have any questions, please feel free to contact me.

momentary push button
