push button switch waterproof

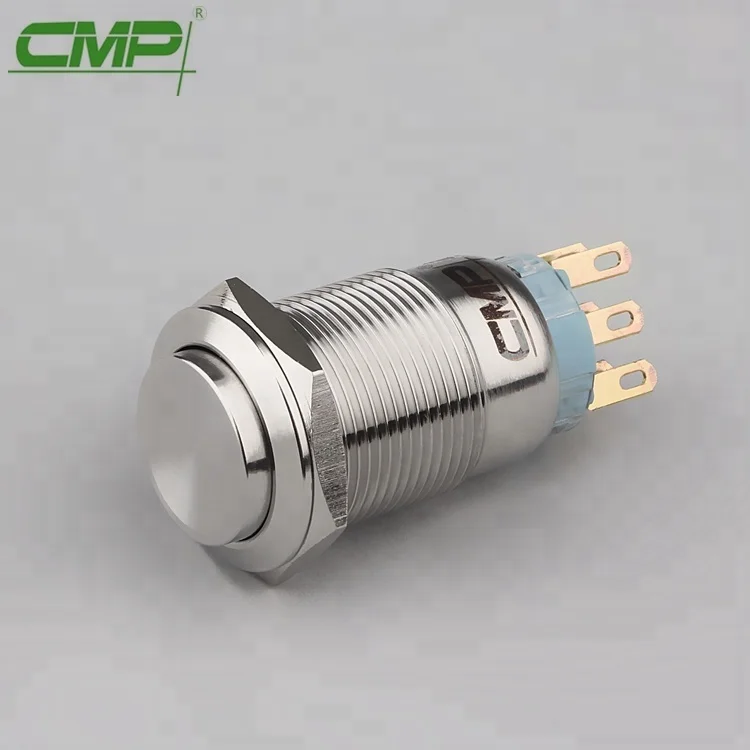

19mm stainless steel or copper platd chromium push button switch,waterproof anti-vandal push button switch
1.Thread Diameter:19mm
2.Operation type:Momentary (also have latching type)
3.Housing material:Stainless steel (or other, contact me)
4.Terminal type:soldering pin,(or solder with wires,socket)
5.Head type:High head,Flat head, Domed head with LED or not
6,LED color:red,green,white,blue,yellow,orange
7.Contact configuration:2NO2NC (DPDT switch) or 1NO1NC
8,Switch rating: 5A/250V AC/DC
9, Mechanical life: 1000000 Cycles, Electrical Life: 50000 Cycles
10, Operating Temp:-20ºC~+55ºC
11,IP65/ IP67, IK10, high quality
12,have TUV,CE,ROSH, SGS
push button switch waterproof

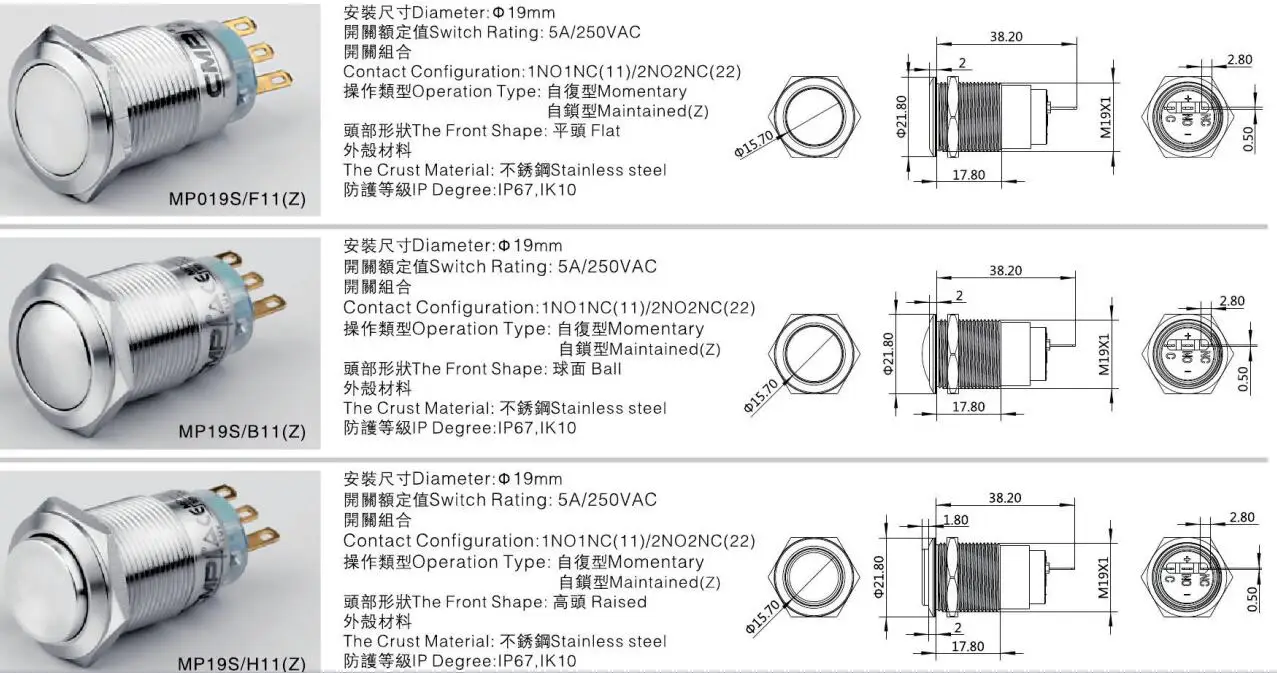

1NO1NC terminal:
2NO2NC terminal
Our products have achieved TUV,CE and passed SGS test.
You can customize the laser marking and colorized switch.
illuminated switch
Our company is push button switch and indicator light manufacturer for 10 years. We supply all products with factory price. If you order our products for the first time, we would like to recommend that you take some samples for testing, so that you will be secure and will find how the quality of our goods is.
1. Installation diameter : There are 10mm 12mm and 16mm 19mm 22mm 25mm 28mm 30mm 40mm series(metal: stainless steel or copper plated chromium,aluminum. and Plastic) button switch.
You can customize the laser marking and colorized switch.
2. Samples and smaller order as follows:
(1).when you order some samples and smaller order, please contact me by email or Skype for confirming items details.
(2).Shipping: DHL, EMS, TNT, Fedex, UPS and others international express. Estimated shipping time: 3-7 days.
3. If your order is up to 1000pcs, we will return the samples’ shipping cost.
push button switch waterproof
Email:cmpswitch66 (at) aliyun.com
We strive to provide excellent customer service. Please feel free to contact me for more pictures or details.We will reply within 24 hours.
