on-off push button switch

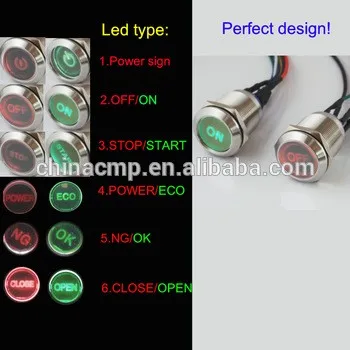

illuminated switch bi-color Illuminated switch

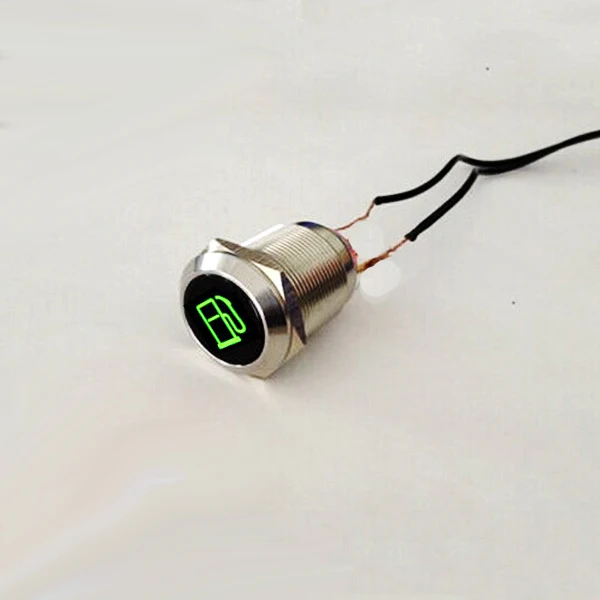

illuminated switch bi-color Illuminated switch
CMP 22mm Metal or Plastic bi-color illuminated switch with ON-OFF Symbol Push Button
| (1) Contact resistance : | ≤50 mΩ |
| (2) Insulation resistance | ≥ 1000 mΩ |
| (3) Dielectric intensity : | 2000 VAC |
(4) Operating temp : | -20°C-+55°C |
| (5) Mechanical life: | 1,000,000 cycles |
| (6) Electrical Life: | 50,000 cycles |
| (7) Panel thickness: | 1-6mm |
| (8) Torque: | 5-14Nm |
| (9) Operation travel : | about 2.5mm |
| (10) Rohs status : | Rohs ( made to order) |
| (11) Certifications : | CNAS,RoHs,SGS,FCC,CE,TUV,BV |
| (12) Momentary: | when you push switch and then move your finger, the actuator will back to the original position. |
| (13)Latching: | when you press the button, it keeps pressed until you press again |
| (14) Contact: | The contact is a conducting part designed to be united by pressure to another conducting part for the purpose of carrying current. |
| (15) N.C.: | Normally Closed circuit |
| (16) N.O.: | Normally Open circuit |
| (17) SPST: | Single Pole Single Throw |
| (18) DPDT: | Double Pole Double Throw |
| (19) International express : | DHL,UPS ,FEDEX,EMS ,TNT ( discount freight) |
| (21) Silver plated gold : | Wonderful material with silver plated gold |
| (22) Silver plated gold: | sensitive |
| (23) Silver plated gold: | Wonderful heat dissipation bi-color Illuminated switch |
TYPE TWO bi-color Illuminated switch
illuminated switch contact configuration:

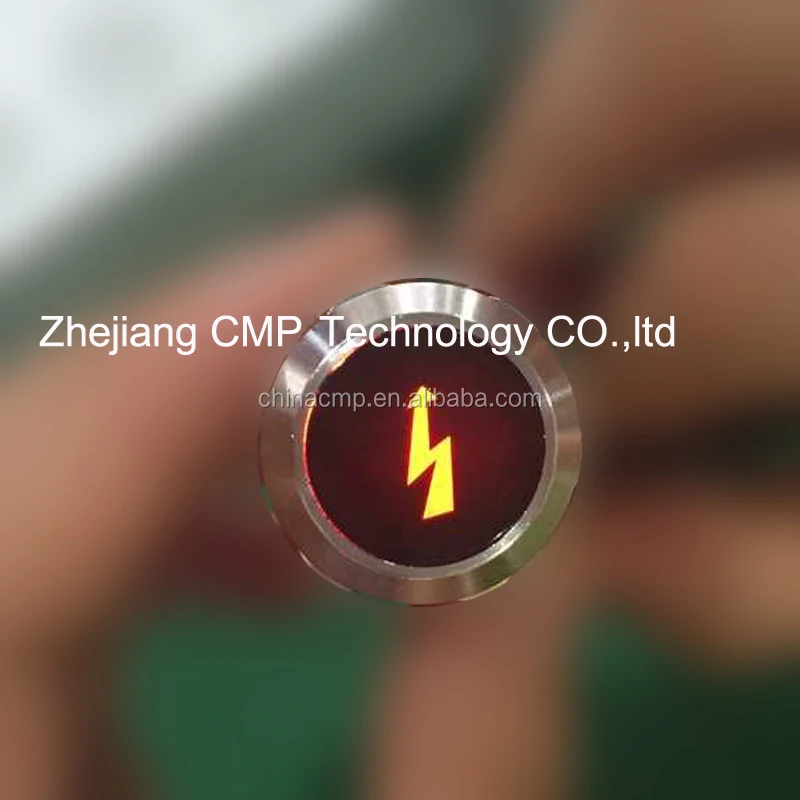

illuminated switch bi-color Illuminated switch
illuminated switch bi-color Illuminated switch
1: Neutral packing : plastcic bag for goods +inner box bubble+ inner box+carton
2: Upon customers" request ,but the price is different with neutral packig
3: Carton spec: 29*23*31
4: 40 pcs/box,10boxes/carton
illuminated switch bi-color Illuminated switch
illuminated switch bi-color Illuminated switch
We supply a great variety of push button switches with factory price.Please let me know the parameters of the switch you want,I will recommend the right one for you.
If you need more information pls contact me:
Email: cmpswitch66 at 163 dot com.
Skype: cmpswitch66
QQ: 183302615
illuminated switch bi-color Illuminated switch
