Home > Products > 19mm led pushbutton switch with screw terminal internet controlled power switch

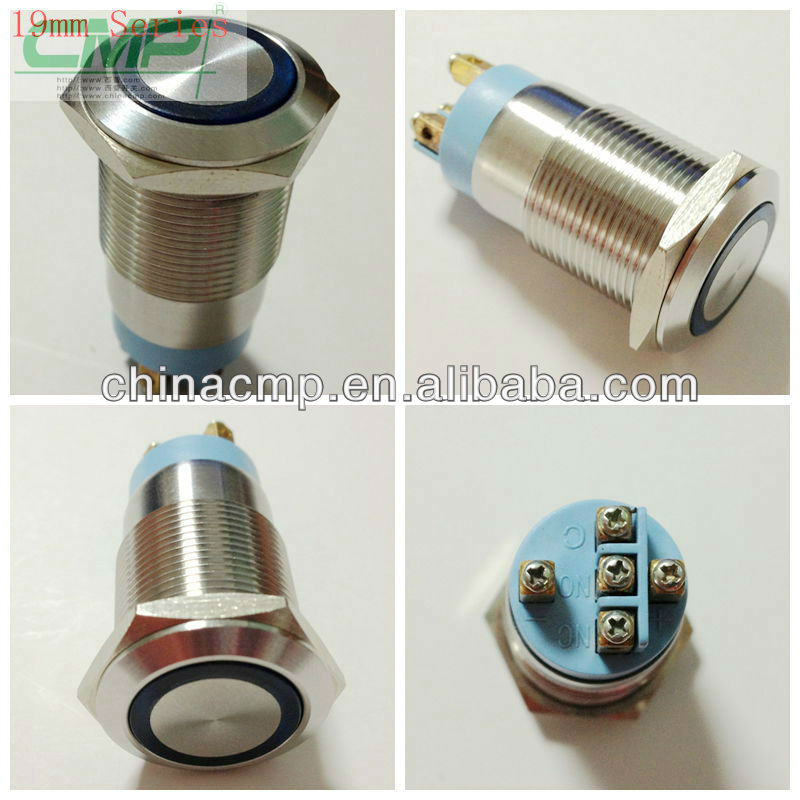

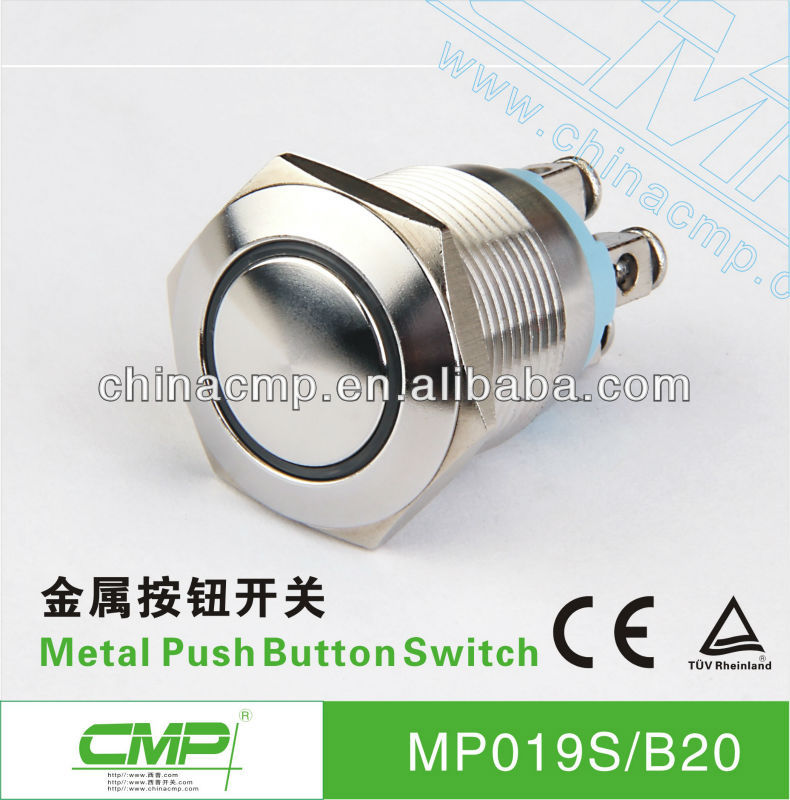

19mm led pushbutton switch with screw terminal internet controlled power switch
Click on the image to view the original image
Product： views：219mm led pushbutton switch with screw terminal internet controlled power switch
Branch： CMP
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 23:26
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
CMP
Model Number:
MP019S-B20-E
Protection Level:
IP67,IK10
Max. Current:
5A
Max. Voltage:
250VAC/DC
Installation diameter:
19mm
The Body Material:
Stainless steel or Copper plated chrom
Electrical Life:
50,000 cycles
Mechanical Life:
100,0000cycles
Contact Material:
Silver Plated
Color of the LED:
Red, White, Green, Blue ,Orange ,Yellow
Voltage of the LED:
3v 6v 12v 24v 36v 48v 110v 220v
Operation type:
Momentary / latching(self-locking)
Contact configuration:
1NO 1NC(SPST)
The bottom:
Screw or Pin
Supply Ability
Supply Ability:
100000 Piece/Pieces per Week momentary led pushbutton switch
Packaging & Delivery
Packaging Details
momentary led pushbutton switch packaging: inner bubble box(40pcs), inner box, carton(10boxes,400pcs)
Carton dimensions:29cm,23cm,31cm,or by your request.
Port
Ningbo/Shanghai
Lead Time:
small order and samples 1-4 days, big order around 5-15 days.

19mm led pushbutton switch with screw terminal internet controlled power switch

Product Description

  momentary led pushbutton switch



19mm series Related products

1NO 1NC --5pin





Supply all products with factory price. If you order our products for the first time, we would like to recommend that you take some samples for testing, so that you will be secure and will find how the quality of our goods is.



1. Installation diameter : There are 12mm series(plastic or metal), and 16mm 19mm 22mm 25mm 28mm 30mm series metal(stainless steel or copper plated chromium ) push button switch.



2. LED/Light series and colors: ring option and dot option. There are red, green, yellow, orange, blue, white. If need others colors, please contact me.



3. The current and voltage: Please let me know the voltage of LED if you order switch with LED light.



4. Samples and smaller order as follows:

(1).when you order some samples and smaller order, please contact me by email or Skype for confirming items details.

(2).payment: paypal or T/T or Western Union.

(3).Shipping: DHL, EMS, TNT, Fedex, UPS and others international express. Estimated shipping time: 3-7 days.



5. Customer Service:

    We strive to provide excellent customer service. All emails will be answered within 24 hours.

    If you have any questions, please feel free to contact me.

  momentary led pushbutton switch
