22mm plastic momentary or latching type push button switch with led indicator
Click on the image to view the original image
Product： views：222mm plastic momentary or latching type push button switch with led indicator
Branch： CMP plastic push button switch
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 23:26
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
CMP plastic push button switch
Model Number:
MU22P/F11Z-E-
Protection Level:
IP67,IK10
Max. Current:
5A
Max. Voltage:
250V AC/DC
Installation diameter:
22mm plastic push button switch
Electrical Life:
200,000 operation minimum(at full rated load)
Mechanical Life:
Maintained:100,0000 Momentary:100,0000 Selector/Keylock:250000
Body Material:
Plastic
Contact Material:
Silver Plated
Operation type:
Momentary or latching(self-locking)
Contact configuration:
1NO1NC (SPDT) or 2NO2NC(DPDT)
The colour of the LED:
red,blue,yellow,orange,green
The voltage of the LED:
from 3V to 230V(You can customize)
Switch type:
plastic push button switch
Supply Ability
Supply Ability:
60000 Piece/Pieces per Week plastic push button switch big order pls contact sales
Packaging & Delivery
Packaging Details
plastic push button switch in Stand Exported Packing:
inner bubble box--- inner box---carton (or by your request.)
Size of CTN: 29*23*31 cm
400PCS/CTN
Port
Ningbo/Shanghai
Lead Time:
samples and small order 1-5 days,big order around 7-15 days.

Specifications

plastic push button switch
Passed TUV,CE,SGS
1NO1NC(SPST) or 2NO2NC(DPDT)
IP67,IK10 Momentary or latching
LED light

  22mm plastic momentary or latching type push button switch with led indicator

  plastic push button switch
Product Description

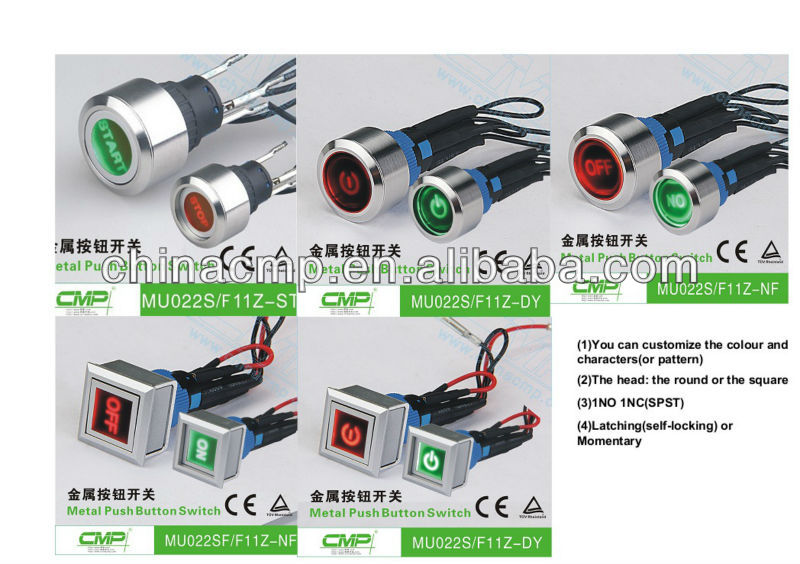

Related plastic push button switch :(1) Bi-colored, You can customize the colour,characters or pattern. (2)There is 22mm mushroom head stainless steel push button switch.



(3)Normally products:there are installation diameter 12mm,16mm,19mm,22mm,25mm,28mm,30mm and 40mm series, metal push buttton switch.





  plastic push button switch
