Home > Products > Square Push Button Switch ( SPDT,Diameter 22mm)
Square Push Button Switch ( SPDT,Diameter 22mm)
Click on the image to view the original image
Product： views：2Square Push Button Switch ( SPDT,Diameter 22mm)
Branch： CMP
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 23:26
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
CMP
Model Number:
MU22SP/F11Z
Protection Level:
IP67,IK08
Max. Current:
5A
Max. Voltage:
250V AC
Suggested panel cutout:
22mm
Surface size:
25*25mm
Contact:
Silver plated gold
Contact configuration:
1 NO 1NC
Head shape:
Flat actuator
The Crust Material:
Plastic
Operation type:
Latching or Momentary
Made of connection:
SPDT
Operation travel:
2.5mm
Applications:
Elevators,Kiosk,Ticket Dispensers and Industrial-type Applications
Supply Ability
Supply Ability:
20000 Piece/Pieces per Day No limitfor square push button switch
Packaging & Delivery
Packaging Details
1: Neutral packing : plastic bag for goods + inner box bubble+ inner box+carton
2: Upon customers' request ,but the price is different with neutral packing
3: Carton spec:29*23*31
4: 20pcs/box,10box/carton
Port
NingBo /ShangHai/Hongkong
Lead Time:
5-7 days (small order), 10-15days (big order)

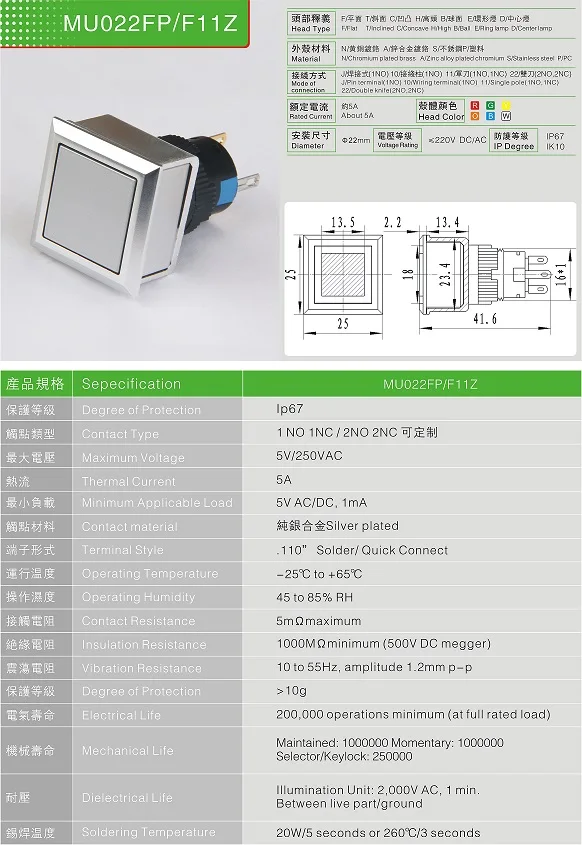

Specifications

1) Square push button switch
2) 22mm,SPDT
3) Waterproof IP67
4) Plastic,flat actuator
5) TUV,CE,BV,Rohs

 square push button switch

Square Push Button Switch ( SPDT,Diameter 22mm)


Product Description







Contact Configurations




Packaging & Shipping





1: Neutral packing : plastcic bag for goods +inner box bubble+ inner box+carton

2: Upon customers" request ,but the price is different with neutral packig

3: Carton spec: 29*23*31

4: 40 pcs/box,10boxes/carton


Our Services



We WARMLY appreciate your positive feedback and our system will leave positive feedback for you after complete transaction.

We value our customers so that if you have a problem ,PLEASE FEEL FREE and DON"T HESITATE TO CONTACT US BY EMAIL IMMEDIATEDLY, we are always there to offer help



square push button switch  , square switch , LED switch , LED push button switch , LED illuminated push button switch
