Home > Products > CMP mount hole 22mm waterproof plastic led illuminated switch with power symbol

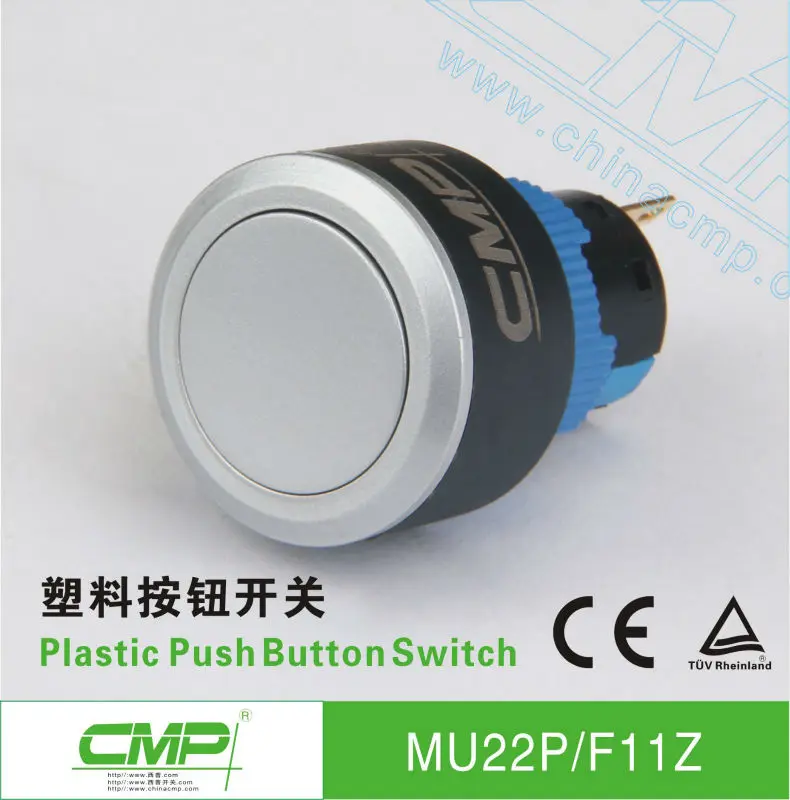

CMP mount hole 22mm waterproof plastic led illuminated switch with power symbol
Click on the image to view the original image
Product： views：2CMP mount hole 22mm waterproof plastic led illuminated switch with power symbol
Branch： CMP
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 23:26
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
CMP
Model Number:
MP022P
Protection Level:
IP67,IK10
Max. Current:
5A
Max. Voltage:
250V AC/DC
Installation diameter:
22mm or 16mm plastic led illuminated switch
The Head Material:
Plastic plated lacquer varnish
Electrical Life:
200,000 operation minimum(at full rated load)
Mechanical Life:
Maintained:100,0000 Momentary:100,0000 Selector/Keylock:250000
Body Material:
Plastic
Contact Material:
Silver Plated
Color of the LED:
Red, White, Green, Blue ,Orange ,Yellow
The voltage of the LED:
From 3V to 230V,you can customize(such as 6v 12v 24v)
Operation type:
Momentary or latching(self-locking)
Contact configuration:
1NO1NC(SPDT) or 2NO2NC(DPDT)
Supply Ability
Supply Ability:
60000 Piece/Pieces per Week plastic led illuminated switch
Packaging & Delivery
Packaging Details
plastic led illuminated switch Stand Exported Packing:
inner bubble box--- inner box---carton (or by your request.)
Size of CTN: 29*23*31 cm
400PCS/CTN
Port
Ningbo/Shanghai
Lead Time:
samples and small order 1-5 days,big order around 7-15 days.

  CMP mount hole 22mm waterproof plastic led illuminated switch with power symbol


Product Description

  plastic led illuminated switch



Related products:(1) Bi-colored, You can customize the colour,characters or pattern.

                            (2)There is 22mm mushroom head stainless steel push button switch.



(3)Normally products:there are installation diameter 12mm,16mm,19mm,22mm,25mm,28mm,30mm and 40mm series, metal push buttton switch.
