Home > Products > CMP waterproof stainless steel 22mm push-button switch with led computer power reset switch

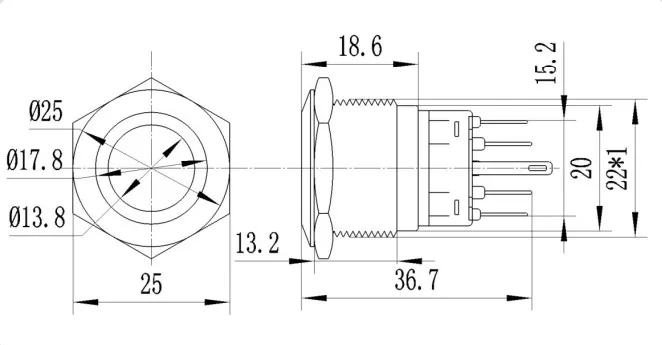

CMP waterproof stainless steel 22mm push-button switch with led computer power reset switch
Click on the image to view the original image
Product： views：2CMP waterproof stainless steel 22mm push-button switch with led computer power reset switch
Branch： CMP
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 23:26
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
CMP
Model Number:
MP022S/F11--E computer switch
Protection Level:
IP67,IK10
Max. Current:
5A
Max. Voltage:
250V AC/DC
Installation diameter:
22mm
The Body Material:
Gold-plated,stainless steel
Electrical Life:
200,000 operation minimum(at full rated load)
Mechanical Life:
Maintained:100,0000 Momentary:100,0000 Selector/Keylock:250000
Contact Material:
Silver Plated
Voltage of the LED:
3v 6v 12v 24v 36v 48v 110v 220v
Color of the LED:
Red, White, Green, Blue ,Orange ,Yellow
Operation type:
Momentary or latching(self-locking)
Contact configuration:
1NO1NC(SPDT)
Terminal type:
6 pins
Supply Ability
Supply Ability:
60000 Piece/Pieces per Week computer power reset switch
Packaging & Delivery
Packaging Details
computer power reset switch Stand Exported Packing:
inner bubble box--- inner box---carton (or by your request.)
Size of CTN: 29*23*31 cm
200PCS/CTN
Port
Ningbo/Shanghai
Lead Time:
samples and small order 1-5 days,big order around 7-15 days.

Specifications

computer power reset switch
1NO1NC(SPDT)
IP67,IK10
Ring or dot LED light
Momentary (or latching)

  computer power reset switch
Product Description



CMP waterproof stainless steel 22mm push-button switch with led computer power reset switch

computer power reset switch



computer power reset switch









computer power reset switch



We supply a great variety of push button switches.Please let me know the parameters of the switch you want,I will recommend the right one for you.

Email: cmpswitch66 at 163 dot com

computer power reset switch

Supply all products with factory price. If you order our products for the first time, we would like to recommend that you take some samples for testing, so that you will be secure and will find how the quality of our goods is.



Installation diameter : There are 12mm series(plastic or metal), and 16mm 19mm 22mm 25mm 28mm 30mm 40mm series metal button switch.



(1) Our factory is specialized in the production of button switch made of stainless steel ,chromium plated brass or plastic.

(2) And our products are exported to Europe, the USA, the Middle East, Asia, etc. Our products have passed TUV,CE. We also offer OEM and ODM services.

(3) You can customize the laser marking and colorized switch.

(4)Transport mode: DHL,UPS,EMS,Fedex,China post, by sea and so on.

(5)Payment: Paypal ,T/T, Western Union.

(6). Customer Service:

      We strive to provide excellent customer service. All emails will be answered within 24 hours. If you have any questions, please feel free to contact me.

computer power reset switch
