illuminated rectangular push button switches
Illuminated metal switch new led push button switch
CMP 2014 new 22mm metal Illuminated rectangular Push Button Switchs with LED words symbol push button switches with symbol
22mm new high quality illuminated rectangular push button switches parameters:

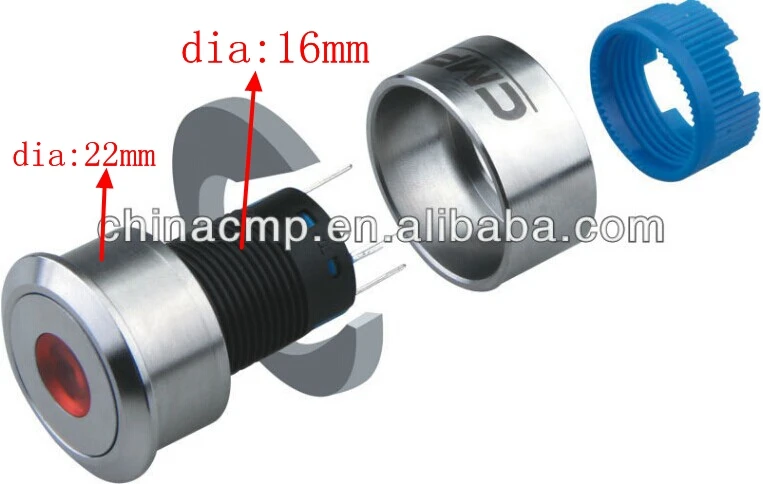

| Installing Diameter: | 22mm/16mm |
| Operation type: | Latching (also have momentary type) |
| Housing material: | Stainless steel (or other, contact me) |
| Terminal type: | soldering pin,(or solder with wires,socket) |
| Head type: | Flat button with LED |

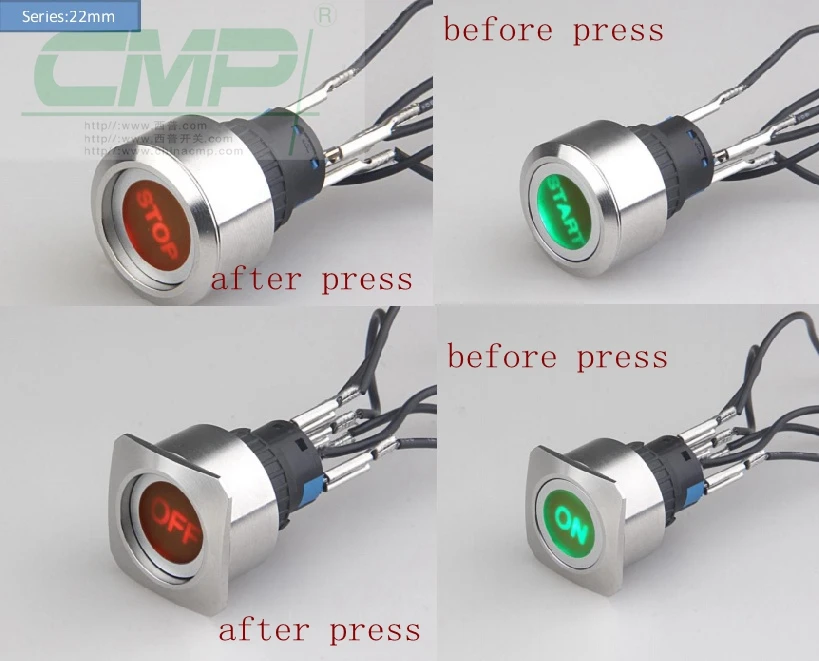

| Symbols | ON/OFF,Start/stop ,OPEN/CLOSE, OK/NG, power ... |
| Operation travel: | about 2.5mm |
| Contact material: | silver plated gold |
| LED color | red/green |
| LED voltage | 2V/3V/6V/12V/24V/36V/110V/220V/made to order |
| Contact configuration: | 1NO1NC |
| Switch rating: | 5A/250V |
| Mechanical life: | 500,000 Cycles |
| Electrical Life: | 200,000 Cycles |
| Operating Temp: | -20ºC~+55ºC |
Latching type :
| (1) Contact resistance : | ≤50 mΩ |
| (2) Insulation resistance | ≥ 1000 mΩ |
| (3) Dielectric intensity : | 2000 VAC |
(4) Operating temp : | -20°C-+55°C |
| (5) Mechanical life: | 1,000,000 cycles |
| (6) Electrical Life: | 50,000 cycles |
| (7) Panel thickness: | 1-6mm |
| (8) Torque: | 5-14Nm |
| (9) Operation travel : | about 2.5mm |
| (10) Rohs status : | Rohs ( made to order) |
| (11) Certifications : | CNAS,RoHs,SGS,FCC,CE,TUV,BV |
| (12) Momentary: | when you push switch and then move your finger, the actuator will back to the original position. |
| (13)Latching: | when you press the button, it keeps pressed until you press again |
| (14) Contact: | The contact is a conducting part designed to be united by pressure to another conducting part for the purpose of carrying current. |
| (15) N.C.: | Normally Closed circuit |
| (16) N.O.: | Normally Open circuit |
| (17) SPST: | Single Pole Single Throw |
| (18) DPDT: | Double Pole Double Throw |
| (19) International express : | DHL,UPS ,FEDEX,EMS ,TNT ( discount freight) |
| (21) Silver plated gold : | Wonderful material with silver plated gold |
| (22) Silver plated gold: | sensitive |
| (23) Silver plated gold: | Wonderful heat dissipation |
metal switch ,metal push button switch, latching switch ,illuminated push button switch ,pushbutton switch,anti-vandal switch
illuminated rectangular push button switches
Our company is push button switch and indicator light manufacturer for 10 years. We supply all products with factory price. If you order our products for the first time, we would like to recommend that you take some samples for testing, so that you will be secure and will find how the quality of our goods is.
1. Installation diameter : There are 10mm 12mm and 16mm 19mm 22mm 25mm 28mm 30mm 40mm series(metal: stainless steel or copper plated chromium,aluminum. and Plastic) button switch.
You can customize the laser marking and colorized switch.
2. Samples and smaller order as follows:
(1).when you order some samples and smaller order, please contact me by email or Skype for confirming items details.
(2).Shipping: DHL, EMS, TNT, Fedex, UPS and others international express. Estimated shipping time: 3-7 days.
3. If your order is up to 1000pcs, we will return the samples’ shipping cost.
illuminated rectangular push button switches
push button switches with symbol new led push button switch
Metal push button switch ,metal switches , latching pushbutton metal switches new led push button switch
Packaging & Shipping
1: Neutral packing : plastcic bag for goods +inner box bubble+ inner box+carton
2: Upon customers" request ,but the price is different with neutral packig
3: Carton spec: 29*23*31
4: 20 pcs/box,10boxes/carton
