Home > Products > CMP screw thread size 16mm waterproof ring light Self-locking push button switch 1NO1NC 5 pins switch

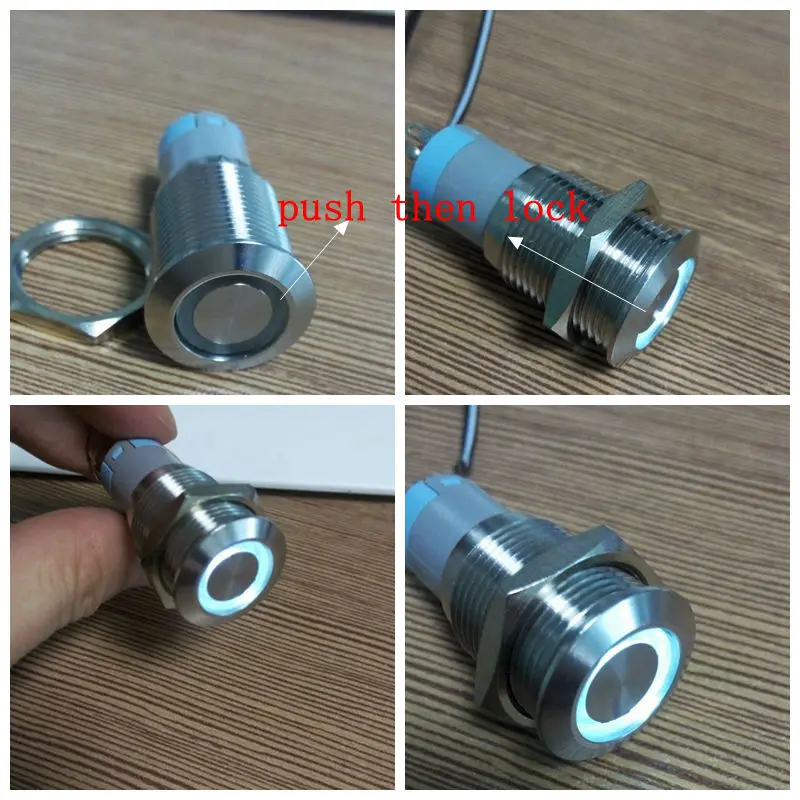

CMP screw thread size 16mm waterproof ring light Self-locking push button switch 1NO1NC 5 pins switch
Click on the image to view the original image
Product： views：2CMP screw thread size 16mm waterproof ring light Self-locking push button switch 1NO1NC 5 pins switch
Branch： CMP
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 23:26
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
CMP
Model Number:
MP016S/F11-ESelf-locking Push Switch
Protection Level:
IP67
Max. Current:
3A
Max. Voltage:
250V
Installation diameter:
16mm(10mm,12mm,19mm 22mm 25mm 28mm 30mm)
The Body Material:
Stainless steel or Copper plated chromium
IP Degree:
IP67,IK10 for Self-locking Push Switch
Electrical Life:
200,000 operation minimum(at full rated load)
Mechanical Life:
Maintained:100,0000Momentary:100,0000 Selector/Keylock:250000
Light pearl color:
Red, White, Black, Green, Blue ,Orange ,Yellow
Light voltage:
6v/12v/24v/110v/220v......
Contact material:
Silver plated gold
Contact configuration:
1NO1NC(SPDT)
Operation type:
Self-locking Push Switch
Supply Ability
Supply Ability:
100000 Piece/Pieces per Week for Self-locking Push Switch
Packaging & Delivery
Packaging Details
Self-locking Push Switch Stand Exported Packing:
inner bubble box--- inner box---carton (or by your request.)
Size of CTN: 29*23*31 cm
400PCS/CTN
Port
Ningbo/Shanghai
Lead Time:
samples and small order 1-4 days, big order around 5-10 days.

4,switch rating:3A/250V    latching push button switch

5, Waterproof,dustproof,vandal resistant,IP67 Self-locking Push Switch

6,the front shape:flat  (or raised,ball)



CMP 16mm installing size waterproof latching ring light push button switch 1NO1NC 5 pins switch





Product Description



Self-locking Push Switch type:

  s

  self-locking Push Switch 1NO1NC 5 pin terminal:





(1) Our factory is specialized in the production of switch buttons made of stainless steel or copper plated chromium or plastic. Self-locking Push Button Switch

(2) And our products are exported to Europe, the USA, the Middle East, Asia, etc. Our products have passed TUV,CE. We also offer OEM and ODM services.

(3) Our products are widely used in varies types of control desks, control boxes (cabinets), power distribution boxes (cabinets), meter boxes (cabinets), household appliances, security systems, etc. Self-locking Push Button Switch

(4) You can customize the laser marking and body color.  ring light push button switch

Self-locking Push Switch
