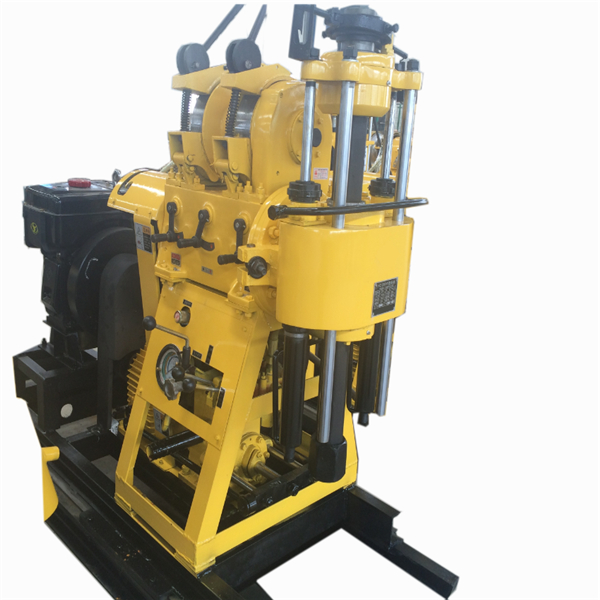

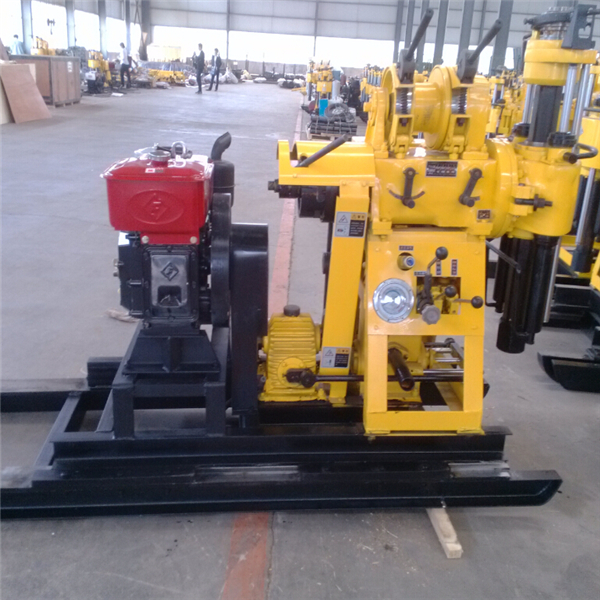

Cheap Core sample water well drilling machine used crawler drilling rig
Click on the image to view the original image
Product： views：7Cheap Core sample water well drilling machine used crawler drilling rig
Branch： HW
Type： Rotary Drilling Rig
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:37
  Negotiated
Product Details
Overview
Quick Details
Applicable Industries:
Building Material Shops, Manufacturing Plant, Construction works
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Place of Origin:
Shandong, China
Brand Name:
HW
Usage:
Water Well
Voltage:
380
Dimension(L*W*H):
2.4*0.8*1.3m
Weight:
960kg
Certification:
ISO
Warranty:
1 Year
After-sales Service Provided:
Video technical support
Name:
Borehole Drilling Rig
Drilling depth:
160m
Drillingdiameter:
75mm-160mm
Drill rod diameter:
42mm,50mm
Drill angle:
90-75
Engine power:
15kw
Machine Dimension:
2.4*0.8*1.3m
Drill mast height:
4.5m
mud pump flow:
95l/min
Mud pump pressure:
1.2Mpa
Supply Ability
Supply Ability:
10000 Set/Sets per Year Cheap Core sample water well drilling machine used crawler drill
Packaging & Delivery
Packaging Details
wooden case for Cheap Core sample water well drilling machine used crawler drilling rig
Port
Qingdao
Lead Time:
Quantity(Sets)1 - 1 >1
Est. Time(days)5To be negotiated
Product Description

Cheap Core sample water well drilling machine used crawler drilling rig Application Cheap Core sample water well drilling machine used crawler drilling rig

Water well drilling rig is mainly used for geological general investigation and exploration, road and tall buliding foundation exploration, kinds of hole in concrete structure, river levees, subgrade grouting hole ,drilling and driect grouting, civil wells and earth temperature central air-conditioner,etc

 hydraulic core drilling rig main technical parameters






Tech parameter
Model
HW-160Y/160YY
HW-180Y/180YY
HW-230Y/230YY
Drilling depth(m)
160
180
230
0pen hole dia(mm)
220
220
325
End hole dia(mm)
75
75
75
Drill rod dia(mm)
42-60
42-60
42-60
Drill angle
90-75
90-75
90-75
power(Kw)
13.2
13.2
13.2
Weight without power(kg)
600/740
620/750
880/970
Dimension(m)
2.4*0.8*1.3
2.4*0.8*1.4
2.7*0.9*1.5

Spindle
Speed(r/min)
142/285/570
130/300/480/730/830/1045
64/128/287/557
Stroke(mm)
450
450
450

   Drill mast
Rated load(ton)
18
18
18
Height(m)
4.5
4.5
4.5



Mud pump
Flow(l/min)
95
95
145
Max pressure(MPa)
1.2
1.2
2
Time/min
93
93
93
Inlet hose dia(mm)
51
51
51
Outlet hose dia(mm)
32
32
32

Water well drilling rig Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Related Products

Crawler water well drilling rig

91.8% Response Rate

Tricycle water well drilling rig

91.8% Response Rate

Portable water well drilling rig

91.8% Response Rate

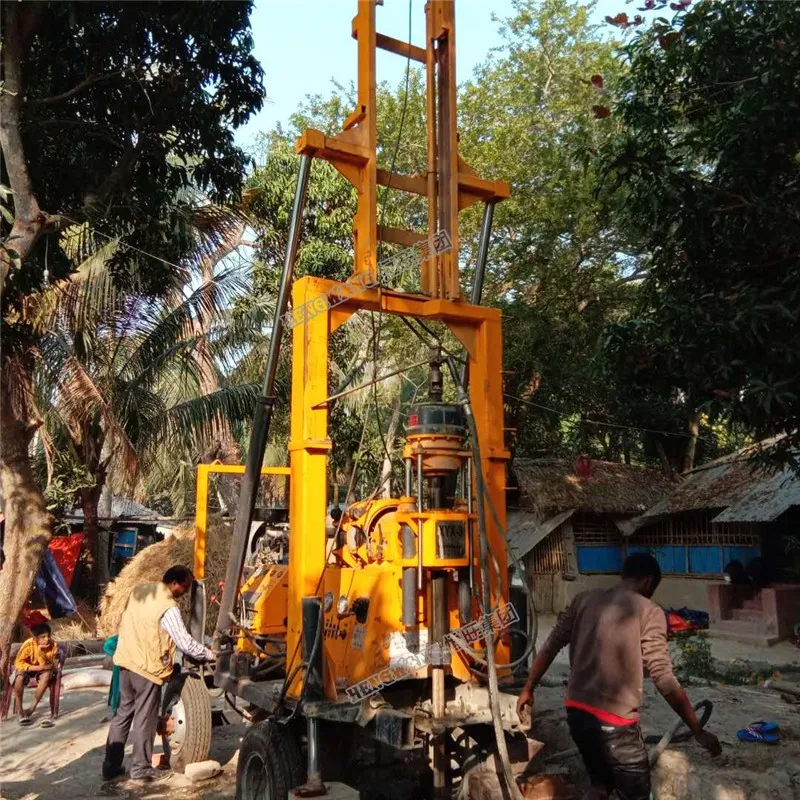

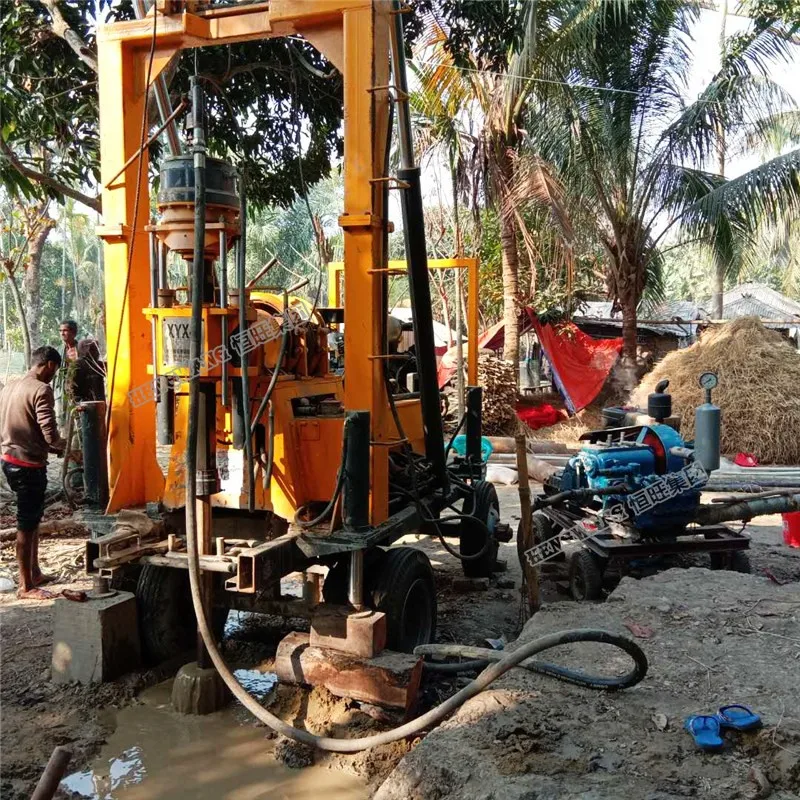

Working Site
