1.2m3 Automatic feeding small concrete mixer truck introduction
1.2 cubic meters Automatic feeding small concrete mixer truck
Combine concrete truck mixer with concrete mixer, self loading concrete mixer can automatic feeding, metering, and mixing to discharge, and more, it can realize the transportation and site construction operations, which greatly improves the work efficiency, reduce production cost and time..2m3 Automatic feeding small concrete mixer truck
Advantage:1.2m3 Automatic feeding small concrete mixer truck
.1. Italy leading design, automatic feeding mixing system
.2. Simple and convenient operation1.2CBM self loading concrete mixer truck
.3. High efficiency output, save time and labor, save cost
.4. The perfect combination of mixing truck and loading car.
1.2m3 Automatic feeding small concrete mixer truck Parameter
| pecifications | |
| Actual stirring capacity | 2.4m³ |
| Rotary drum capacity | 2.3m³ |
| Degree of bias | 16° |
| Rotational speed | 10-20r/min |
| Direction of rotation | Feed:clockwise output:counter clockwise |
| Mixing drum blade | Two sets of spiral and four sets of auxiliary blades |
| Slump of concrete | 70-260mm |
| Hydraulic Power Transmission System | |
| Pump model | CBGV-4025 |
| Hydraulic motor model | BMSS-250 |
| Reducer ratio | 01:24 |
| Water Supply | |
| Tank capacity/water supply form | 540/automatic timing water supply mechanism with automatic timing |
| The main performance parameters of the chassis and the main performance parameters of the engine | |
| Engine type/displacement | CF4B68G-Z-13B2/CF4C100T-Z-13B2 |
| Model | Straight injection type four stroke water cooled supercharged diesel engine |
| Rated power | 78kw/2400 kw/r/min |
| Max torque | 380/1500-1800 N.m/r/min |
| Max running speed | 24kw/h |
| Min steering radius | 4500mm |
| Climbing capacity | 26 |
| Tire | 16/70-20 |
| Driving way | 4*4 |
| Weight | 5550kg |
| Maximum load capacity | 5600kg |
| Whole machinery weight | 11150kg |
| Overall size | 6350*2510*2850mm(L*W*H) |
| The wheelbase | 2300mm |
| Bucket capacity | 0.5m³ |

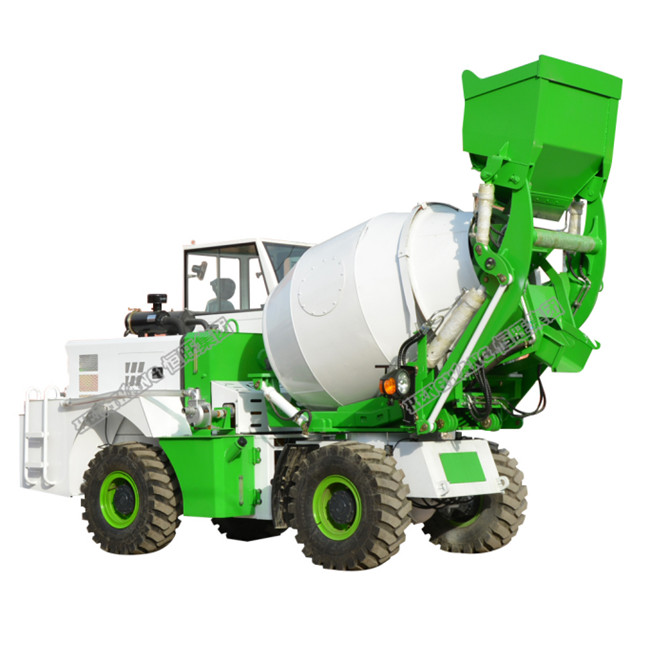

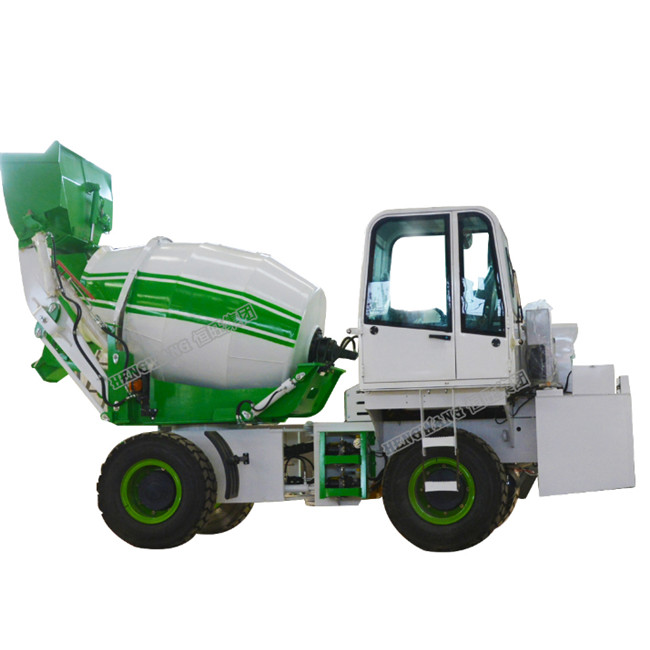

1.2m3 Automatic feeding small concrete mixer truck Photos
