Overview
Quick Details
- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Model Number:
- G10/11/15/20, G series
- Type:
- Air Hammer, Air Hammer
- Average Air Consumption:
- 20L/S to 41L/S
- Maximum Torque:
- 500
- No-Load Speed:
- 2450
- Name:
- Pneumatic pick
- Working pressure:
- 0.63 Mpa
- Packing:
- carton
- Cylinder Dia:
- 35mm to 67mm
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 100X20X10 cm
- Single gross weight:
- 20.0 kg
- Lead Time:
Quantity(Set) 1 - 1000 >1000 Est. Time(days) 7 To be negotiated
Product Description

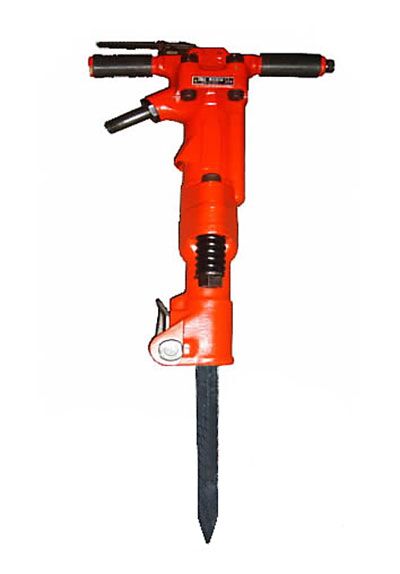

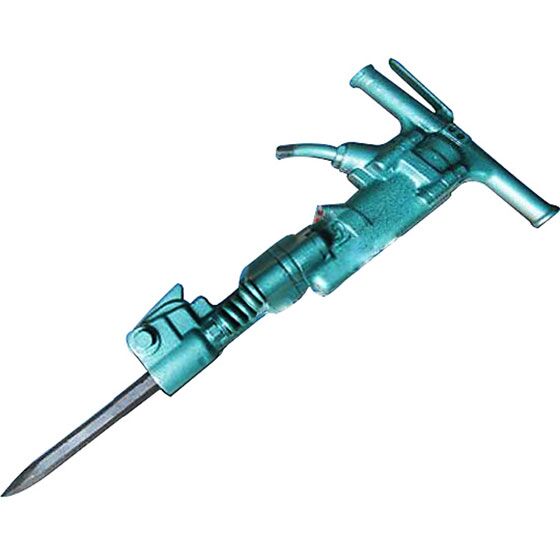

PNEUMATIC BREAKER
Pneumatic mining forging jack hammers is lighter, more flexible and convenient operation. It"s suitable for operating all around of work, especially in narrow space, upper or climbing direction. It can stop working automatically when the solid object is broken.It"s widely used in coal mining, soft rock, digging pits for post brackets, digging slots, breakingconcrete, frozen earth in construction and installation engineering or constructing works in casting industries.
SPECIFICATIONS FOR PNEUMATIC BREAKER | |||||
Model | G7 | G9 | G10 | G15 | G20 |
Weight | 7.2kg | 9.5Kg | 10.6 Kg | 12Kg | 20kg |
Cylinder Dia. | 35mm | 37mm | 38 mm | 42mm | 40mm |
Pituitary trip | 120mm | 130mm | 155 mm | 160mm | 170mm |
Working pressure | 0.63 Mpa | 0.63Mpa | 0.63 Mpa | 0.63MPa | 0.63 Mpa |
SCFM | 20L/S | 25L/s | 20 L/S | 26.5L/s | 27L/S |
Inner Dia. | 19mm | 19mm | 19mm | 16mm | 19mm |
