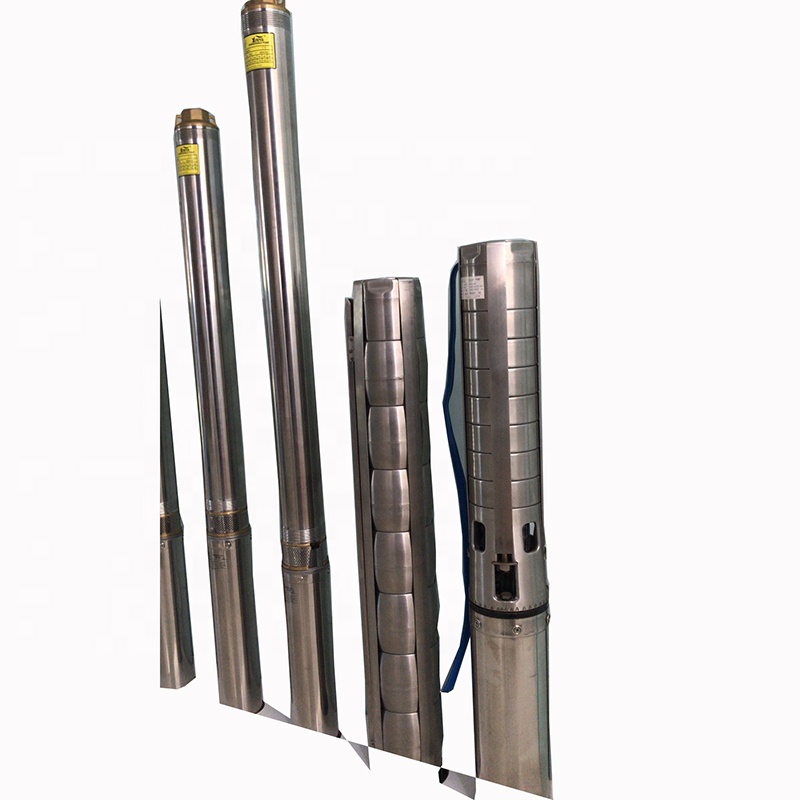

Solar water PumpSolar powered water pump for agriculture system
1. Any place water is needed, but no AC power is available.
2. An ideal combination of water and sun that preserves the environment, saves energy and reduces physical effort.
3. The more sunlight, the more water is pumped (this is ideal for stock watering and irrigation). Water is pumped even on hazy days.
4. Economical: need only 24 W solar panel for up to 20 meters (appr. 60 ft).
5. Automatic operation for years- minimal maintenance is required. Special construction allows dry operation for hours.
6. Tolerates mild sediment in the water supply ---- can be used in rivers.
7. Low borehole drilling costs ---- a diameter of 8.0cm (3 1/4") is sufficient.
8. Robust and reliable ---- constructed from brass and stainless steel.
Main Features:
-- solar pump must not be operated direct with any batteries
-- solar power supply: max 24Wp, input voltage with load 33V
-- maximum current:0.8A,minimum current 0.1A
-- diameter of pump: 5.2 cm; minimum diameter of well 8.0 cm.
-- interior diameter of water hose: 9.0mm, length: 11 meters
-- diameter of cable: 9.0mm, length: 11 meters
-- diameter of the pump: 5.2cm, length: 36cm
-- operating temperature of the pump: +1.0°C - + 50°C
-- operating temperature of the driver: -10°C - + 50°C
