0.025m3 Bucket capacity 1000kg excavator for farm planting

Product Category

No Category Yet

Search

Link

No links

Home > Products > 0.025m3 Bucket capacity 1000kg excavator for farm planting

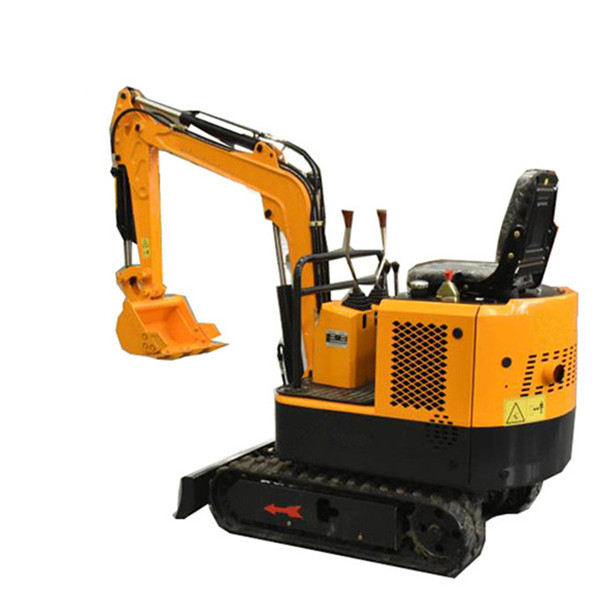

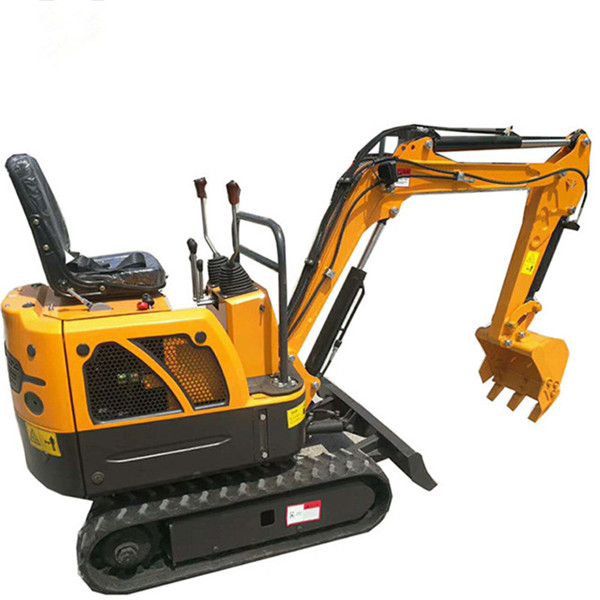

0.025m3 Bucket capacity 1000kg excavator for farm planting

Click on the image to view the original image

Product：	views：40.025m3 Bucket capacity 1000kg excavator for farm planting
Branch：	HW
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-17 05:38

Product Details

Overview

Quick Details

Bucket capacity:: 0.025cbm/120kg

Operating Weight:: 1000kg

Rated Speed:: 2km/h

Warranty:: 1 Year

After-sales Service Provided:: Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts, Engineers available to service machinery overseas

Place of Origin:: Shandong, China

Brand Name:: HW

Condition:: New

Moving Type:: Crawler Excavator

Maximum Digging Height:: 2490mm

Maximum Digging Depth:: 1400mm

Max Digging Radius:: 3600mm

Certification:: CE ISO

Product name::: 1Ton Crawler Excavator

Application::: Building ,garden

System working pressure ::: 20mpa

Engine::: diesel engine

Engine Rated output power:: 8.6 kw

Minimum radius of gyration:: 1190mm

Color:: red or yellow or according customer

Maximum torque:: 2880 r/min

Maximum Digging Force:: 6.5 kn

Supply Ability

Supply Ability:: 10000 Set/Sets per Year

Packaging & Delivery

Packaging Details: Standard export package or as your requirement for Hydraulic Crawler Excavator

Port: Qingdao

Lead Time:

Quantity(Sets)	1 - 1	>1
Est. Time(days)	3	To be negotiated

Product instruction

Our mini excavator owns beautiful appearance, high configuration, superior performance, low fuel consumption, wide operating range. It is suitable for loosing

soil of vegetable green house, campus greening of municipal departments, digging

the hole for tree planting of Fruit-land Nurseries, concrete pavement crushing, sand-gravel material mixing, construction work on the narrow place and so on. Use the

quick hitch can add the attachment tools like auger, hydraulic hammer, loading bucket, gripper and so on. It can reduce maintenance and operating costs. Liberate the workforce, improve the mechanization, low investment, high return.

Technology Parameter

Total weight	1000kg
Bucket capacity	0.025m³
Working device type	backhoe
Minimum radius of gyration	1190mm
Maximum excavation height	2490mm
Maximum excavation depth	1400mm
Maximum discharge height	3300mm
Engine	Capacity
Engine Rated output power	8.6 kw
Maximum torque	2880 r/min
Maximum travel speed	2 km/h
Max. travel speed	25km /h
Maximum gradeability	25°
Maximum Digging Force	6.5 kn
Maximum depth cleaning	345mm
The maximum height of land clearing	255mm
Pump type	Gear pump
Working pressure	16Mpa
Flow	21.6 L/min
Hydraulic oil capacity	17.4 L
Engine oil capacity	1.65L
Fuel tank capacity	7.35 L
