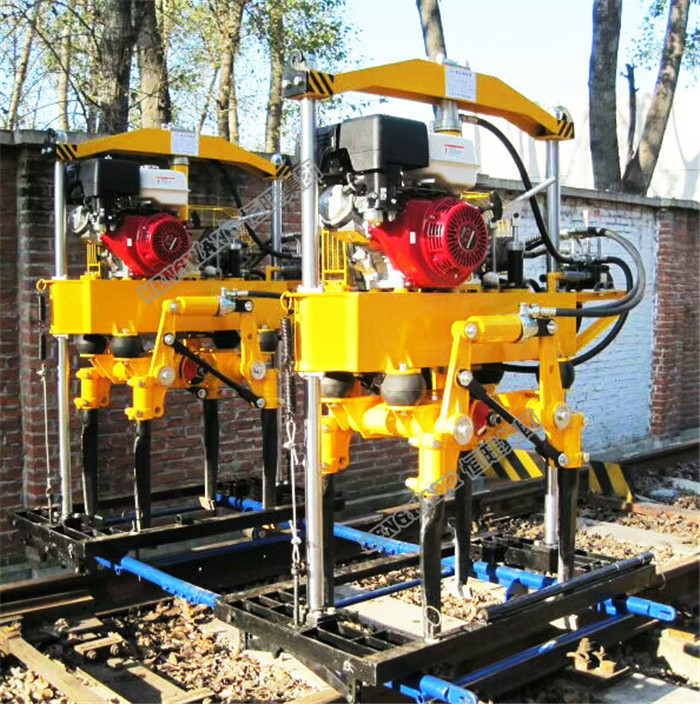

HW Mechanical YD-22 Hydraulic diesel Petrol Engine Rail Vibrating Tamper Price

Click on the image to view the original image

Product：	views：4HW Mechanical YD-22 Hydraulic diesel Petrol Engine Rail Vibrating Tamper Price
Branch：	HengWang
Size：	139X75X160 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-17 05:38

Product Details

Overview

Quick Details

Warranty:: 1 Year

Power(W):: 9.5KW

Weight:: 430kg

After-sales Service Provided:: Video technical support, Online support

Condition:: New

Place of Origin:: Shandong, China

Brand Name:: HengWang

Dimension(L*W*H):: 1390mm * 750mm * 1600mm

Working pressure:: 5 ~ 6MPa

RPM:: 3600

Vibration frequency:: 66.7HZ

Excitation force:: 22kN

Max.under thrust force:: 16KN

Clamping strength:: 6.5kn * 2

Max.under thrust Depth:: 110mm±10mm

The production efficiency:: 280-320pcs/(group hour)

External dimension:: 1390mm * 750mm * 1600mm

Packaging & Delivery

Selling Units:: Single item

Single package size:: 139X75X160 cm

Single gross weight:: 430.0 kg

Package Type:: standard packing

Lead Time:

Quantity(Set)	1 - 1	>1
Est. Time(days)	7	To be negotiated

Product Description

Product Application

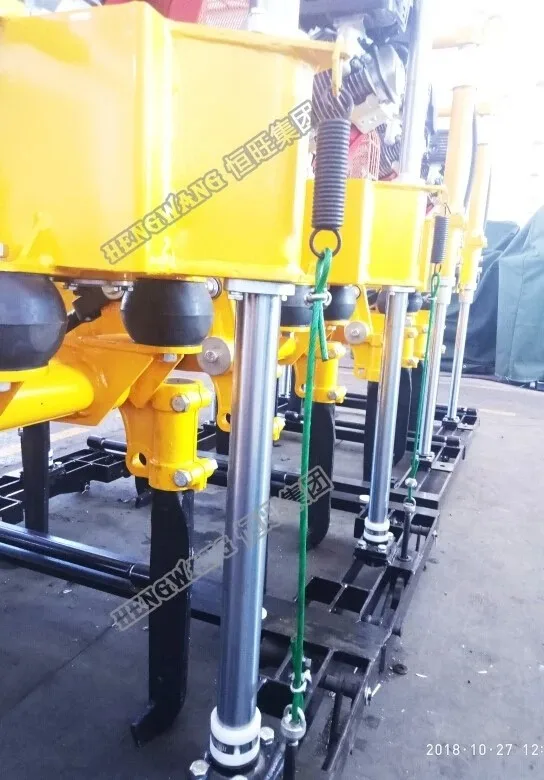

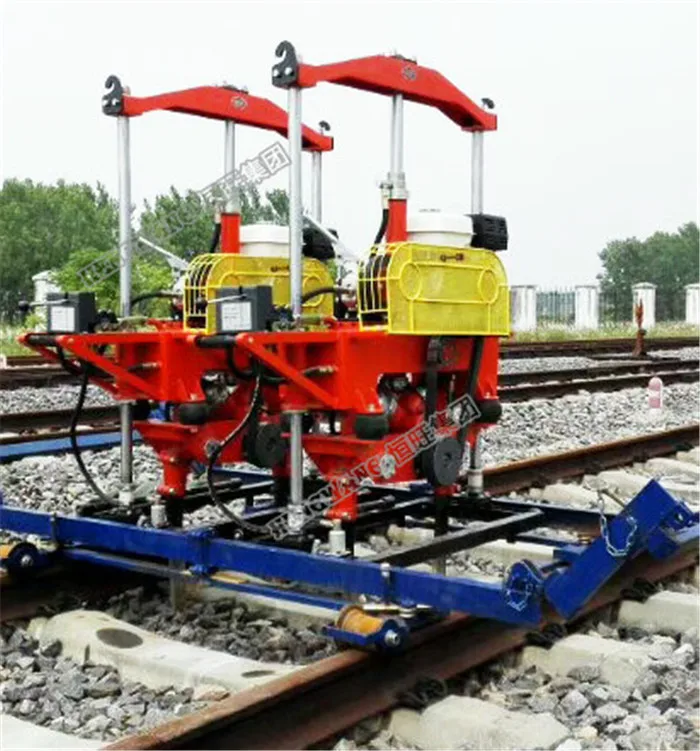

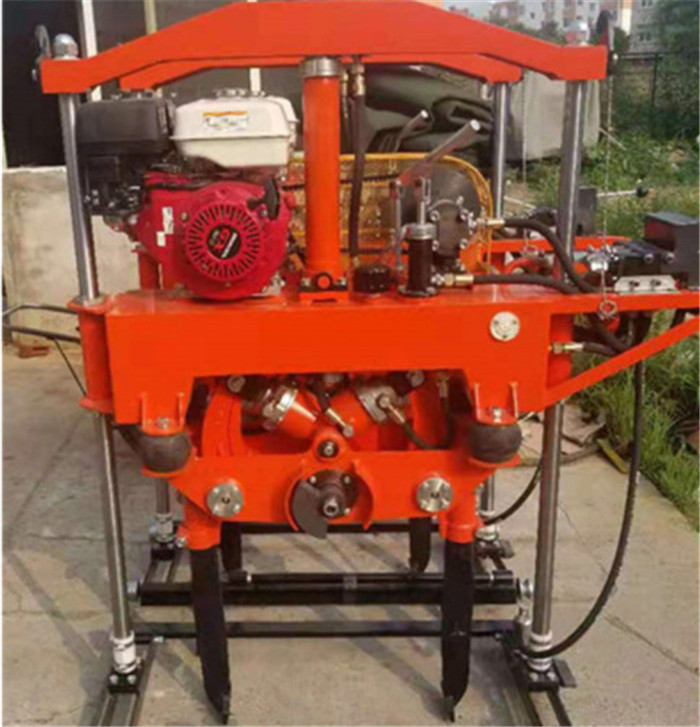

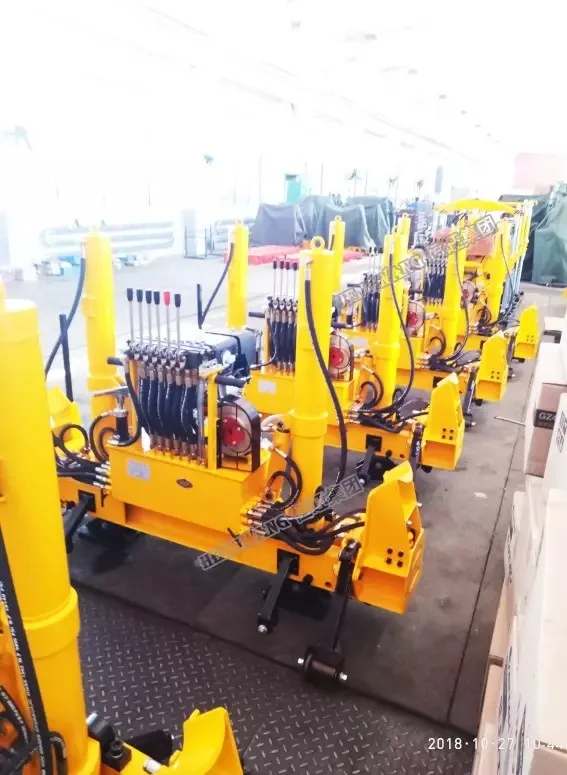

1.YD-22 Railway Hydraulic Tamping Machine adopts new material and technology, this type of machine is our upgrading product.
2. Railway Tamper machine basic structure and working principle reserves the original advantages, railway tamper of double guide pillar frame and single cylinder lifting mode. Due to increasing the tine palm inserting depth and the guide pillar stroke stop means.
3. it"s able to to operate on II type concrete sleeper and III type concrete sleeper, and on various concrete sleeper and rail track. Its main technical performance is better than the old type. It"s suitable for tamping operation on various rail and sleeper track after the overhaul and medium maintenance ballast cleaning operation, and also suitable for tamping operation on the new track ballast bed.
4. This machine has the features of high quality performance, reasonable structure, safe and reliable operating capability and high working efficiency, which can satisfy the requirement of ballast tamping operation.

SPECIFICATIONS
Model		YD-22II Hydraulic Ballast Tamping Machine
Dimension		13907501600mm
Material		Metal and stainless steel
Color		yellow or orange
Application		Rail track ballast tamping operation

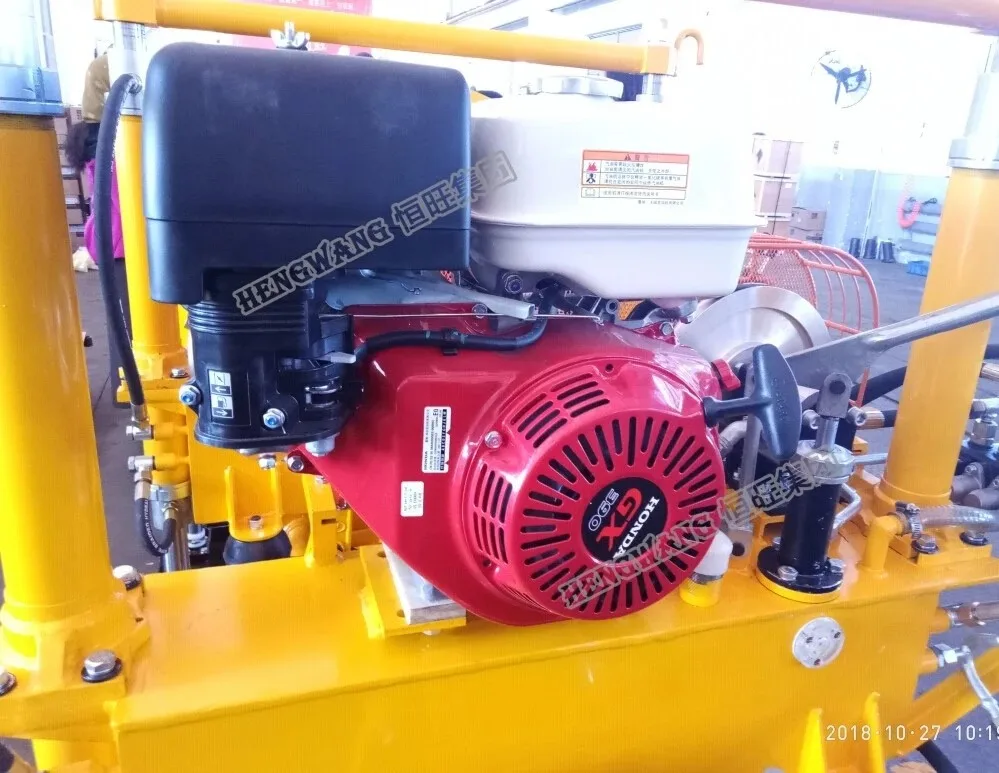

Motive power		GX390 petrol engine power:9.5KW, RPM:3600round/min
Hydraulic pressure		5~6MPa
Vibration frequency		66.7Hz
Exciting force		22kN
Max.under thrust force		110mm±10mm(beneath the sleeper)
Production efficiency		≥ 270pieces/(group/per hour)
Main frame net weihgt		430KG
